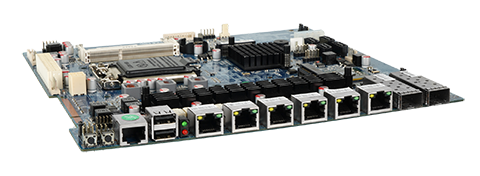

LAN-B85SFPESB-6L
Detailed
Support Intel® Core™ Haswell CPU
Support dual chaneel SO-DIMM DDR3 1600MHz Max32GB
Support built-in VGA display output
Support 6 * Intel I211 Gigabit Ethernet card; 2 * AN8599 10 Gigabit Fiber Optic Network Card
Support 4*USB2.0
1*RJ45_COM1;1*COM RS232
1*mSATA，4*SATA3.0
1*mPCIE，Support Wifi/Bluetooth module extension(1*SIMCard slot (optional)）
DC 12V power supply

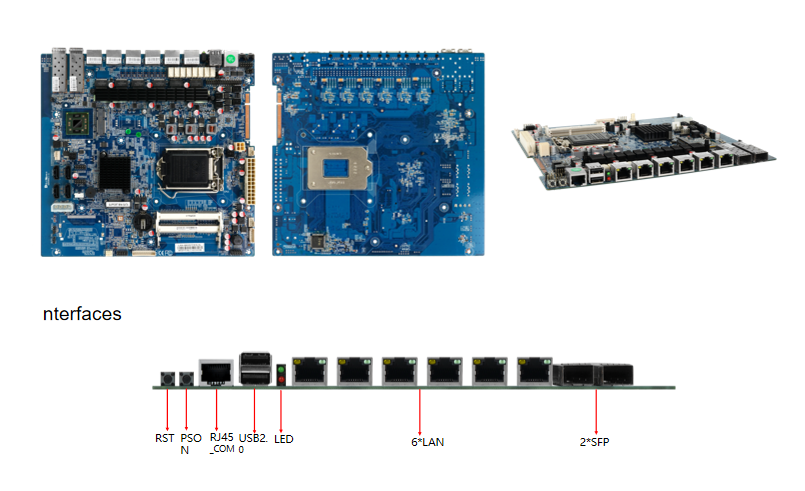

0755-83650405 | CPU | Intel® Core™ Haswell CPU | Rear I / O interface | 1 * RST key |
| Chipset | Intel® B85 | 1*PWR Key | |
| Dispaly chip | Intel® Core graphics card 4600 | 1*RJ45_COM1Port | |
| display output | VGA | 2*USB2.0 port | |
| Multi display support | N/A | 1 * LED status indicator | |
| USB | 4*USB2.0 | 6*LAN Port | |
| Memory | 2*SO-DIMM DDR3 1600MHz Max64GB | 2*SFP Port | |
| Audio | N/A | Internal I / O pin | 4*CPU_FAN Pin |
| network card | Onboard 6*Intel I211Gigabit Ethernet ; 2*AN859910 Gigabit optical fiber network card | 2*F_USB2.0 Pin(Expandable 4 * USB2.0) | |
| 4*SATASocket | |||
| storage | 4*SATA3.0;1*mSATA | 1*SATA_PWRSocket | |
| Expansion slot | 1*mPCIE，Support WiFi / Bluetooth module expansion (1 * SIM card slot optional) | 1*IDE_PWRSocket | |
| 1*F_PANEL Pin | |||
| I/O chip | ITE8784E-I | 1*VGA_HSocket | |
| BIOS | AMI BIOS | 1*GPIOPin | |
| Power supply | ATX_PWR 12V Power supply | 1*PS/2Socket | |
| Heat dissipation system | CPU heat sink is required | 1*ATXPWRSocket | |
| environment | Working: 0 ~ 60 ℃; Storage: - 20 ℃ ~ 75 ℃ 0% - 95% relative humidity, no condensation |
1*ATX_INSocket | |
| 1*LAN_LEDPin | |||
| Main board size | 230X240mm | 1*COMPin |
