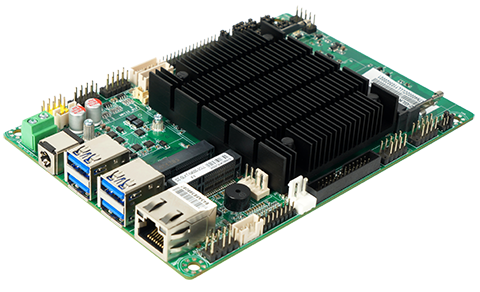

      DZ-GLKT-2C1L


      Detailed






      Product Parameters







Support for Intel ®  Gemini Lake J4125/J4105/N4000 processor







Supports single channel SO-DIMM, DDR4 2400MHz, Max8GB







Supports LVDS1/EDP1+LVDS2/EDP2+HDMI display output, three displays simultaneously asynchronous







On board 1 * Realtek RTL8111H/8111G Gigabit Ethernet card







Supports 4 * USB3.2 Gen1 (5Gbps), 6 * USB2.0







1 * miniSATA







1 * miniPCIE, supporting WiFi/Bluetooth module expansion;







DC 12V power supply (optional with air head power supply)






































CPU
Intel® Gemini Lake J4125/J4105/N4000 processor




Chipset
Intel® SOC




Display chip
Intel ®  Ultra High Definition Graphics Card 600




Display output
LVDS1/EDP1+LVDS2/EDP2+HDMI




Multi display support
Three display synchronous asynchronous




USB
4*USB3.2 Gen1（5Gbps） ，6*USB2.0




Memory
1*SO-DIMM DDR4 2400MHz Max8GB




sound effects
On board ALC269 audio decoding controller;




Integrated power amplifier 2.2W@4 Ω MAX




Network card
On board 1 * Realtek RTL8111H/8111G Gigabit Ethernet card




storage
1*miniSATA




expansion slot
1 * miniPCIE, supporting WiFi/Bluetooth module expansion




I/O chip
IT8784E-I




BIOS
AMI  BIOS




power supply
DC/AT 12V (optional short head configuration)




Cooling System
Equipped with fanless heat sink




Environment
Working temperature: 0-60 ℃; Storage: -20 ℃~75 ℃




0%~95% relative humidity, non condensing




Size
148X102mm

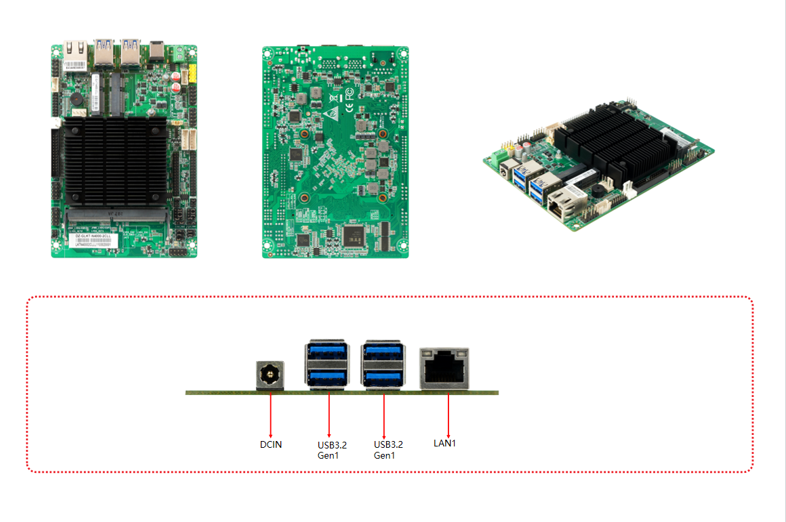

Post I/O interface
1 * DC_ IN port (optional 4PIN aviation head)
      2 * USB3.2 Gen1 (5Gbps) port
      2 * USB3.2 Gen1 (5Gbps) port
      1 * LAN port




Internal I/O
1 * F_ AUDIO pin
      1 * Speaker pin
      1 * JHDMI pin
      1 * CPU_ FAN pin
      1 * LPT_ PWR pin
      1 * LPT pin
      2 * COM pin
      1 * F_ PANEL pin
      2 * LVDS/EDP pins
      2 * INCN socket
      3 * F_ USB2.0 pin (expandable 6 * USB2.0)
      1 * JRJ11 socket
      1 * AT_ IN socket













Model
DIMM
ExpansionSStorageStorage
Storage
Display output
Radiating
Power supply




USB2.0
USB3.0
LAN
LPT
SPEAKE
MINI-PCIE
Msata
LVDS
EDP
HDMI
DC




DZ-GLKT-N4000-2CLE
1
6
4
1 * Gigabit
√
√
√
√
√
√
√
Profile
12V




DZ-GLKT-J4125-2CLE
1
6
4
1 * Gigabit
√
√
√
√
√
√
√
Profile
12V




DZ-GLKT-J4105-2CLE
1
6
4
1 * Gigabit
√
√
√
√
√
√
√
Profile
12V




DZ-GLKT-N4000-2C2E
1
6
4
1 * Gigabit
√
√
√
√
√
√
√
Profile
12V




DZ-GLKT-J4125-2C2E
1
6
4
1 * Gigabit
√
√
√
√
√
√
√
Profile
12V




DZ-GLKT-J4105-2C2E
1
6
4
1 * Gigabit
√
√
√
√
√
√
√
Profile
12V




DZ-GLKT-N4000-2CLL
1
6
4
1 * Gigabit
√
√
√
√
√
√
√
Profile
12V




DZ-GLKT-J4125-2CLL
1
6
4
1 * Gigabit
√
√
√
√
√
√
√
Profile
12V




DZ-GLKT-J4105-2CLL
1
6
4
1 * Gigabit
√
√
√
√
√
√
√
Profile
12V
