      ZO-GLKT-6C2L


      Detailed






      Support Intel® Gemini lake J4125 Processor Quad core Quad Threads 2.0 GHz~2.7 GHz；Intel® UHD Graphics 600







1*SO-DIMM  DDR4 2133/2400MHz  Max8GB







Support VGA、HDMI/EDP2、LVDS/EDP1, Support Triple Display







Support HDMI2.0 4K 60Hz Output







Onboard 1*RTL8106 100M（Options: 1000M、2*LAN）







Support 2*USB3.0+7*USB2.0







Support 6*COM232，(Option: COM2 can Support 485)







Support 1*SATA3.0、1*mSATA Support SATA SSD







Onboard 1*MiniPCIe，Support Wifi+Bluetooth /4G Module







DC12V Power Supply






































CPU
Intel® Celeron® J4125/J4105/N4000 Processor

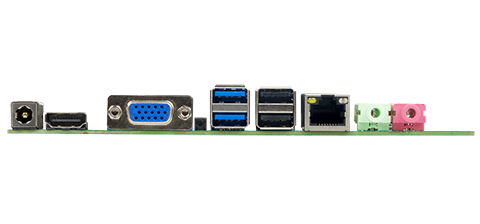

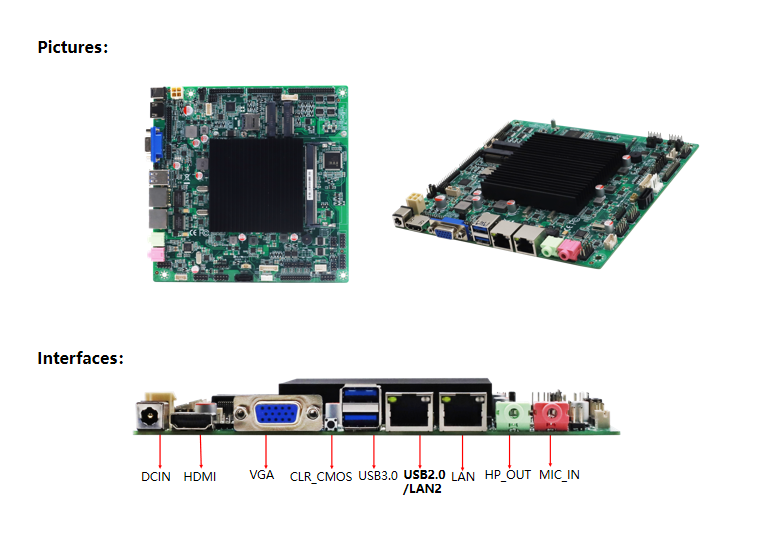

Post I/O interface
1 * DC interface (P5.5&2.5mm DC Jack)
      1 * HDMI interface
      1 * VGA interface
      2 * USB3.0 interface
      2 * USB2.0 interface (LAN2 and 2 * USB2.0 optional)
      1 * LAN1 * HP_ OUT interface
      1 * MIC_ IN interface




Chipset
SOC




Display chip
Intel UHD Graphics 600




Display output
LVDS+HDMI+VGA ;  LVDS+EDP2+VGA




Multi display support
EDP1+EDP2+VGA ;  EDP1+HDMI+VGA




USB
Can support three display synchronous/asynchronous output




Memory
4*USB3.2 GEN1(5Gbps)+6*USB2.0




sound effects
1*SO-DIMM  DDR4  2400MHz  Max8GB
Internal I/O
1 * EDP2 pin
      1 * VGA_ H pin
      1 * F-AUDIO pin
      1 * SPEAKER pin
      1 * F_ USB3.0 pin (expandable 2 * USB3.0)
      2 * F_ USB2.0 pin (expandable 4 * USB2.0)
      1 * SATA pin
      1 * SATA_ PWR pin
      1 * JPS2 pin
      1 * J_ PRINT pin
      1 * F_ PANEL pin
      2 * COM pin (supports one RS485 option, COM1 and COM2 support live reversible DCD/5V/12v)
      1 * COM_ CONN pin (4 * COMRS232)
      1 * GPIO pin
      1 * LVDS pin/1 * EDP
      1 pin
      1 * INVERT pin
      1 * LCTL pin
      1 * 4PIN ATX socket




Network card
On board Realtek ALC269HD audio decoding controller




storage
On board 1 * RTL8111H/RTL8111G Gigabit Ethernet card




(Optional dual port version)




expansion slot
1 * SATA3.0 interface 1 * mSATA




I/O chip
ITE8786E-I




BIOS
AMI  BIOS




power supply
DC/ATX 4PIN  12V power supply




Cooling System
Equipped with CPU heat sink




Environment
Working temperature: 0-60 ℃; Storage: -20 ℃~75 ℃




0%~95% relative humidity, non condensing




Size
170X170mm
