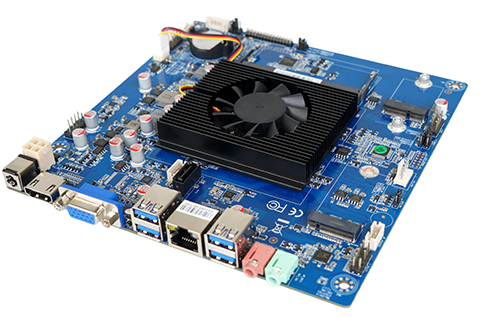

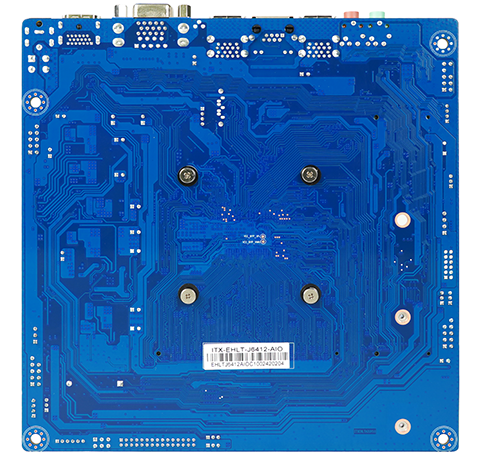

      ITX-EHLT-AIO


      Detailed






      Support for Intel ® Celeron Elkhart Lake J6412/J6413 processor







Supports single channel SO-DIMM, DDR4 3200MHz, Max32GB







Supports LVDS+HDMI+VGA display output, three displays simultaneously and asynchronously







On board 1 * Realtek RTL8111H/8111G Gigabit Ethernet card







Supports 4 * USB3.2 Gen1 (5Gbps), 4 * USB2.0







1 * M.2 M Key (PCIEx2 and SATA adaptive); 1 * SATA







1 * M.2 E Key, supporting WiFi/Bluetooth module expansion;







DC 12V power supply






































CPU
Intel ® Celeron Elkhart Lake J6412/J6413 processor

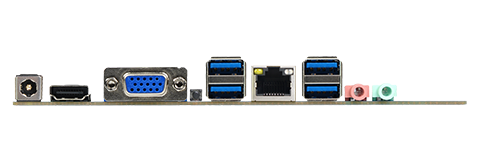

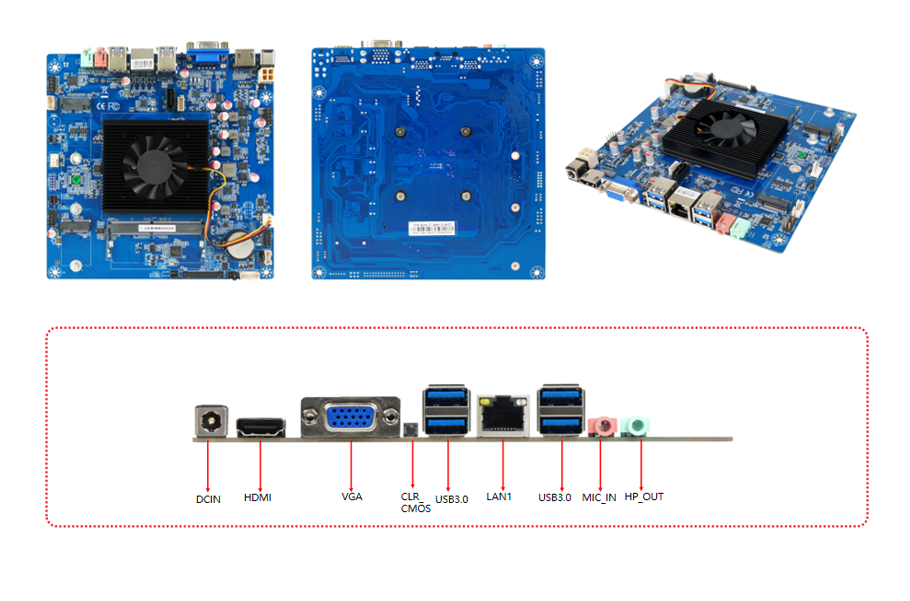

Post I/O interface
1 * DC_ IN port




Chipset
Intel® SOC
1 * HDMI port




Display chip
Intel ®  Core graphics card
1 * VGA port




Display output
LVDS+HDMI+VGA
1 * CLR_ CMOS buttons




Multi display support
Three display synchronous asynchronous
2 * USB3.2 Gen1 (5Gbps) port




USB
4*USB3.2 Gen1（5Gbps） ，4*USB2.0
1 * LAN1 port




Memory
1*SO-DIMM DDR4 3200MHz Max32GB
2 * USB3.2 Gen1 (5Gbps) port




sound effects
On board ALC269 audio decoding controller;
      Integrated power amplifier 2.2W@4 Ω MAX
1 * MIC_ IN port




1 * HP_ OUT port




Internal I/O
1 * F_ AUDIO pin




Network card
On board 1 * Realtek RTL8111H/8111G Gigabit Ethernet card
1 * Speaker pin




storage
1*M.2 M Key；1*SATA
1 * SYS_ FAN pin




expansion slot
1 * M.2 E Key, supporting WiFi/Bluetooth module expansion
2 * J_ USB2.0 pin (expandable 4 * USB2.0)




I/O chip
IT8613E-I
1 * LVDS pin




BIOS
AMI  BIOS
1 * INCN socket




power supply
DC/4PIN ATX  12V power supply
1 * LCTL pin




Cooling System
Equipped with fan and radiator
1 * F_ PANEL pin




Environment
Working temperature: 0-60 ℃; Storage: -20 ℃~75 ℃
      0%~95% relative humidity, non condensing
1 * CPU_ FAN pin




1 * SATA pin




1 * SATA_ PWR pin




Size
170X170mm
1 * ATX_ IN socket


















Model
DIMM
Expansion
Storage
Display interface
Radiating
Power supply




USB2.0
USB3.0
COM232
COM485
LAN
LPT
M.2 M Key
M.2 E Key
SIM
SATA
Msata
VGA
LVDS
EDP
HDMI
DC




ITX-EHLT-J6412-AIO
1
4
4
0
0
1 * Gigabit
x
√
√
x
1
x
1
1
0
1
fan
12V




ITX-EHLT-J6413-AIO
1
4
4
0
0
1 * Gigabit
x
√
√
x
1
x
1
1
0
1
fan
12V
