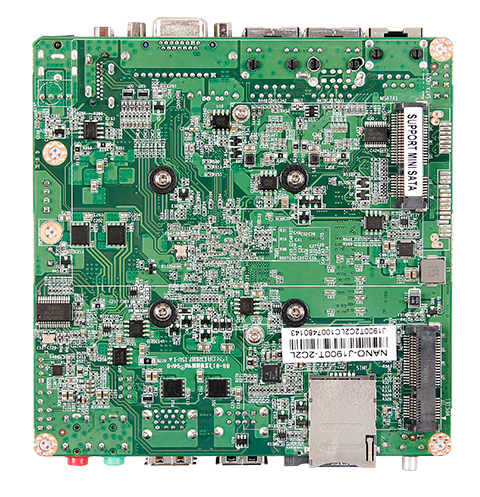

      NANO-J1900T-2C2L


      Detailed






      Support for Intel ® Bayrail J1900/1800 processor







Supports 1 * SO-DIMM, DDR3L-1333, Max.8GB







Supports display output VGA, HDMI, and dual display synchronous/asynchronous







On board 2 * Realtek RTL8111E Gigabit Ethernet card







Supports 1 * SATA and 1 * Mini SATA







Supports 1 * USB3.0+3 * USB2.0







Supports 1 * Mini PCIE (For WiFi/4G extension)







Support 1 * TF extended storage card interface; SIM plug-in installation







Supports 2 * COM232







Support DC 12V power supply









































CPU
Support for Intel ® Bayrail processor, J1900/1800

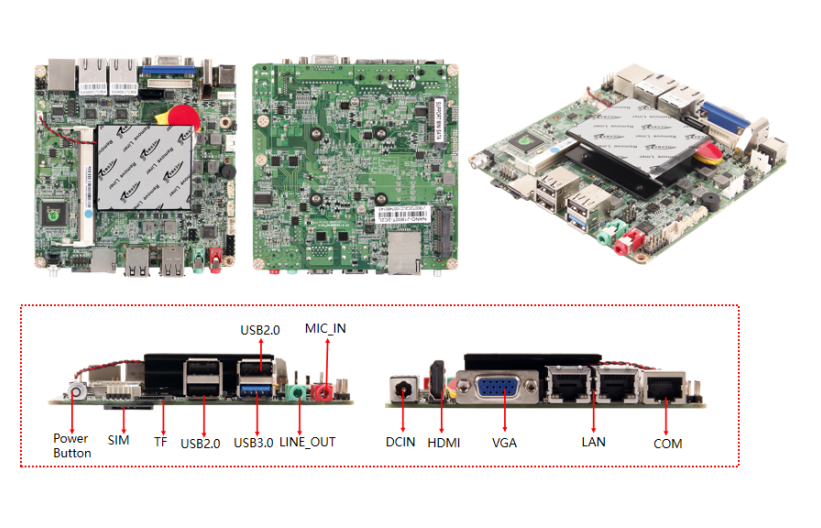

Post I/O interface
1 * USB3.0 port




Chipset
Intel®SOC
3 * USB2.0 port




Display chip
Intel ® HD Graphics integrated graphics card
1 * VGA port




Display output
VGA、HDMI
1 * HDMI port




Multi display support
VGA+HDMI (synchronous/asynchronous dual display)
2 * LAN port




USB
1*USB3.0  3*USB2.0
1 * MIC_ IN port




Memory
1*SO-DIMM，DDR3L  1333MHZ  Max 8GB
1 * LINE OUT port




sound effects
On board Realtek ALC662HD audio decoding controller
1 * COM_ RJ45 port




1 * DC port




Network card
On board 2 * Realtek RTL8111E Gigabit Ethernet card
1 * PWR SW button




Internal I/O
1 * VGA pin




storage
1*SATA，1*TF
1 * COM pin




1*Mini-SATA(For mSATA)
1 * F_ PANEL pin




expansion slot
1*Mini-PCIE(For 4G/ WIFI )  1*SIM
1 * F_ AUDIO pin




I/O chip
2*COM232
1 * J1 pin




BIOS
AMI  BIOS
1 * GPIO pin




power supply
DC 12V power supply
1 * SYS-FAN pin




Cooling System
Equipped with CPU heat sink
1 * CPU-FAN pin




1 * CIR pin




Environment
Working temperature: 0-60 ℃; Storage: -20~75 ℃
1 * DEBUG pin




0%~95% relative humidity, non condensing
1 * SPEAKER pin




Size
120 X 120mm
1 * SATA-PWR pin
