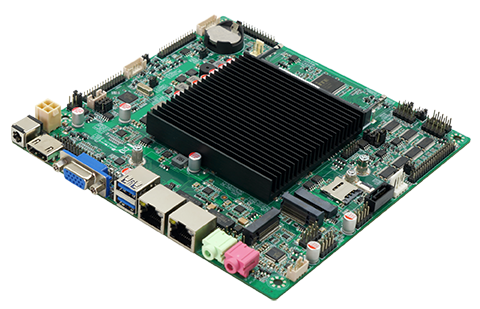

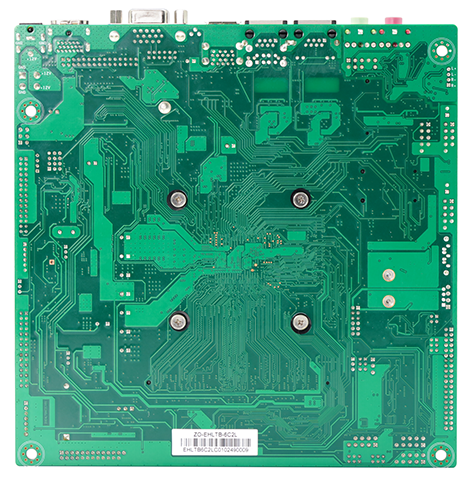

      ZO-EHLTB-6C2L


      Detailed






      Supports Intel's first IOTG custom Elkhart Lake J6412/J6413 processor







Supports single channel SO-DIMM DDR4 3200MHz Max16GB







Supports LVDS/EDP1+HDMI/EDP2+VGA, three display synchronous







Supports 2 * Realtek RTL8111H/8111G Gigabit Ethernet card (optional single network)







Supports 2 * USB3.2 Gen2 (10Gbps); 6 * USB2.0







Supports 6 * COM232, with COM2 supporting RS232/485/422; COM3 supports RS232/485







1 * M.2 Key M, supporting SATA/PCIEX2 signal adaptation







1 * M.2 Key E, supporting WiFi+Bluetooth extension; 1 * M.2 Key B, supporting 4G/5G module expansion; 1 * SIM







DC 12V power supply






































CPU
Intel® Elkhart Lake J6412/J6413 processor

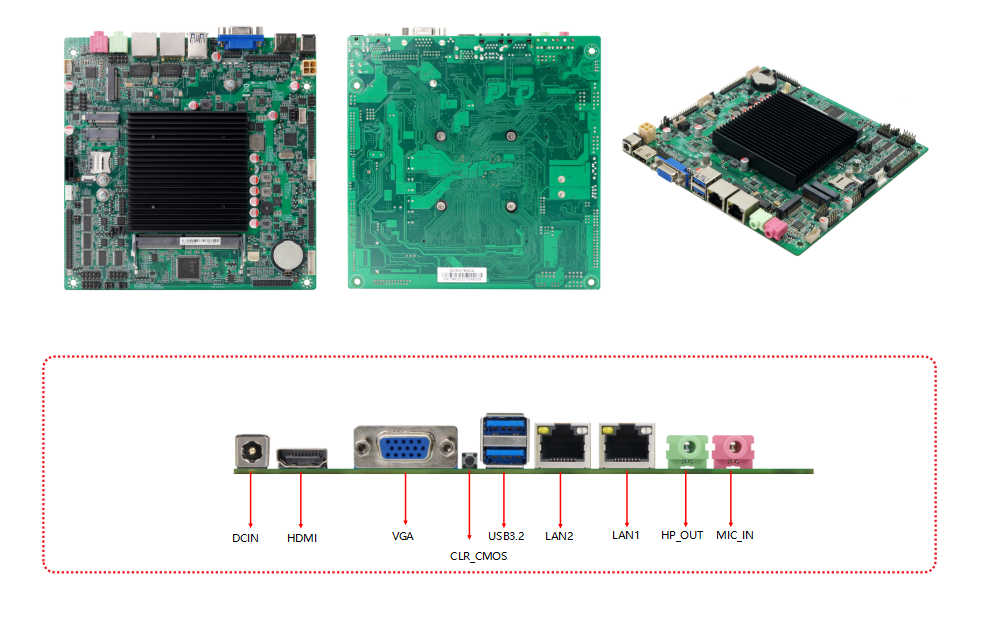

Post I/O interface
1 * DCIN port
      1 * HDMI port
      1 * VGA port
      1 * USB3.2 Gen2 port
      1 * USB2.0 port (optional with 1 * LAN)
      1 * LAN port
      1 * HP_ OUT interface
      1 * MICIN interface




Chipset
Intel® SOC




Display chip
Intel® UHD Graphics




Display output
LVDS+HDMI+VGA LVDS+EDP2+VGA EDP1+HDMI+VGA EDP1+EDP2+VGA




Multi display support
Supports three display synchronous/asynchronous output




USB
6*USB2.0+2*USB3.2 Gen2（10Gbps）




Memory
1*SO-DIMM DDR4 3200MHz Max16GB




sound effects
On board ALC897 audio decoding controller




Independent power amplifier NS4251 3W@4 Ω; 1.7W@8 Ω
Internal I/O
1 * EDP2 pin (this pin has no function by default, and bios firmware and hardware updates are required if needed) 1 * JVGA pin
      1 * F_ AUDIO pin
      1 * SPEAKER pin
      3 * F_ USB2.0 pin (expandable 6 * USB2.0 port)
      1 * SATA socket
      1 * SATA_ PWR pin
      1 * GPIO pin
      6 * COMRS232 pin (COM2 and COM3 support 2-way RS485 optional, COM1/2/3 support live optional RI/5V/12V)
      1 * F_ PANEL pin
      1 * PRINT pin
      1 * PS2 pin
      1 * INCN pin
      1 * LVDS pin/EDP
      1 pin (function two options -)
      1 * LCTL pin
      1 * 4PIN ATX socket




Network card
On board 2 * Realtek 8111H/8111G Gigabit Ethernet card (optional single network)




storage
1 * SATA3.0 interface




expansion slot
1 * M.2 Key B, supporting 4G/5G expansion modules




1 * M.2 Key E, supporting WiFi+Bluetooth extension




I/O chip
ITE8786E-I




BIOS
AMI  BIOS




power supply
DC/4PIN ATX  12V power supply




Cooling System
Equipped with fanless CPU heat sink




Environment
Working temperature: 0-50 ℃; Storage: -20 ℃~75 ℃




0%~95% relative humidity, non condensing




Size
170X170mm
