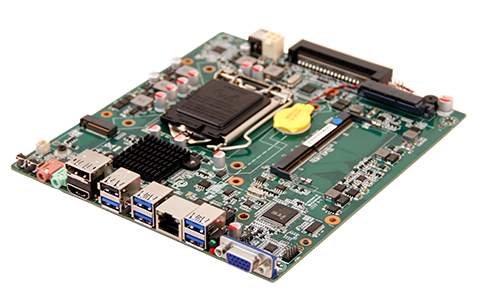

      OPS-H310-CR1


      Detailed






      Intel Coffee lake&Coffee lake-R I3/I5/I7 65W CPU







Onboard VGA/HDMI/DP display output







Supports HDMI2.0 with maximum support 4K@60FPS OPS interface







Supports DP1.2 with maximum support 4K@30FPS IO interface







Supports HDMI 1.4b with maximum support 4K@30FPS IO interface







Supports DDR4 dual channel memory, better supporting 4K video encoding and decoding







Support Key M NGFF M.2 interface, expandable SSD module







Support Key A NGFF M.2 interface, scalable WiFi/Bluetooth







Support hardware one click system backup and restore







Adhere to EUP (ErP) energy-saving standards, with standby power consumption below 0.5W







USB interface supports short circuit protection, power short circuit system does not crash or restart







Support intelligent fan control







Unique design, supporting OPS interface for live and undamaged plugging and unplugging







Enhanced USB signal driving capability, compatible with various touch boxes and other devices






































CPU
intel coffee lake&Coffee lake-R  I3/I5/I7 65W CPU

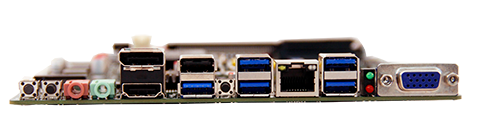

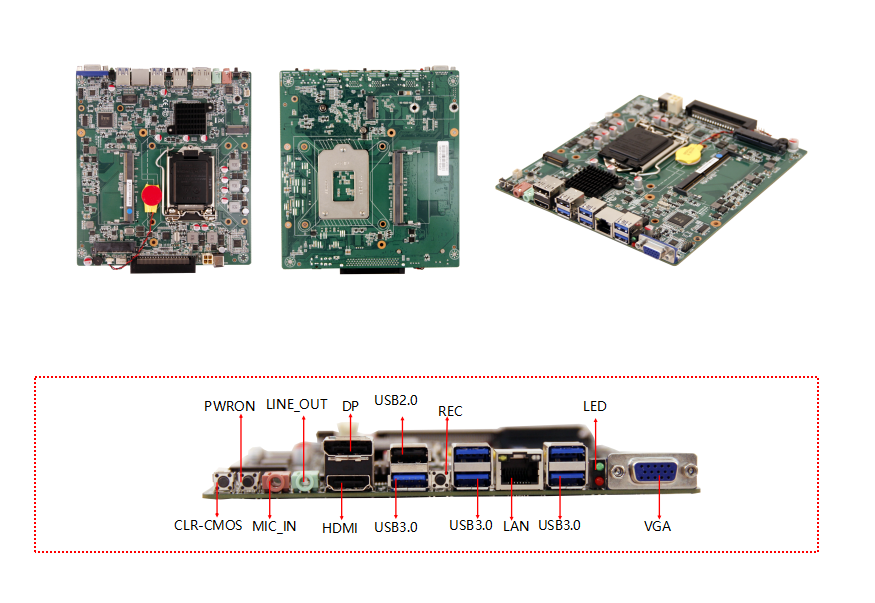

I/O terminal display
5 * USB3.0 port,
      1 * USB2.0 port
      1 * VGA port
      1 * HDMI port
      1 * DP port
      1 * LAN port
      1 * MIC-IN port
      1 * LINE OUT port
      1 * DCIN port
      1 * REC button
      1 * PWR - ON button
      1 * C - CMOS button
      1 set of LED power hard drive indicators




Chipset
H310




BIOS
Intel CPU built-in display core




Display output
VGA/HDMI/DP




Multi display support
VGA+HDMI/VGA+DP/HDMI+DP；




VGA+HDMI+DP




USB
5*USB3.0 ,1*USB2.0




Memory
2*SO-DIMM，DDR4 2400/2666MHz




sound effects
On board Realtek ALC662HD audio decoding controller




network card
On board Realtek RTL8111H Gigabit Network Card




Storage
1 * 2.5 laptop hard drive interface (SATA HDD)




expansion slot
1*NGFF-M 2280 support SATA SSD;




1*NGFF-A    2230 support WIFI+Bluetooth;




1 * OPS-C socket




I/O Chip
ITE8784E-I
I/O interface
1 * OPS-C port
      1 * COM pin
      1 * GPIO pin
      1 * RST pin
      1 * ATX pin
      1 * CFAN pin




BIOS
AMI  BIOS




Power
DC/4PIN ATX 12~19V  Wide voltage power supply




Mainboard size
190X170MM




COOLING SYSTEM
OPS dedicated double ball radiator




operation temperature
Working temperature: -10-60 ℃; Storage: -20 ℃~75 ℃;




0%~95% relative humidity, non condensing
