OPS-RPLPT-CR1
Detailed
Support Intel® Alder Lake &Raptor Lake Processor
Support HDMI2.1、DP1.4
Support HDMI2.1 , 4K@60FPS IO/OPS
Support DP1.4, 8K@60FPS IO/OPS
Support 2*DDR4 3200Hz 64G，support video codec
Support M.2 M Key ，PCIEX4/SATA
Support M.2 E Key ，Could be extended WiFi6+Bluetooth
Support 5*USB3.2 GEN2（10Gbps）+1*USB2.0
（Type-C，DUSB1 port for USB3.0）
Support EUP(ErP)Energy Saving Standard，Standby power consumption less than 0.5w
Enhance USB signal drive ability, compatible with all kinds of touch box and other devices
Built in turbine intelligent radiator for excellent heat dissipation performance

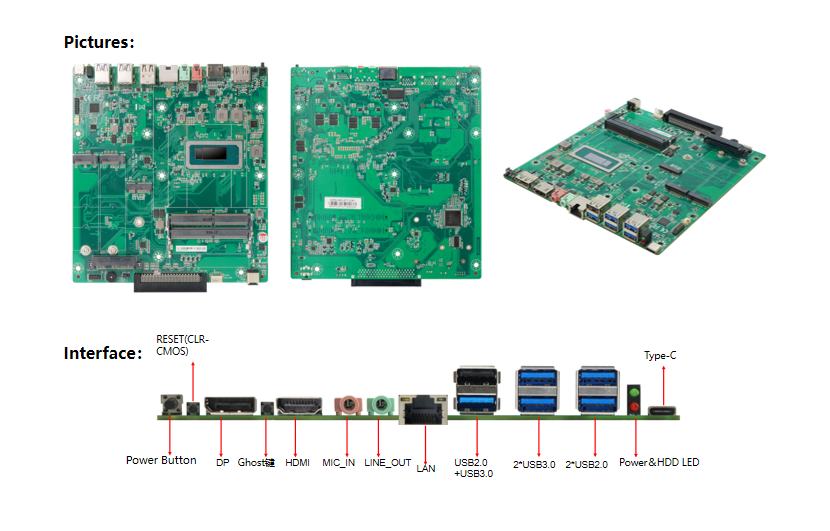

0755-83650405 | Processor | Support Intel®12/13™ i7/i5/i3 Alder Lake &Raptor Lake Processor | Rear I/O | 1*Power Button |
| SOC | Intel®SOC | 1*RESET CLR_CMOS | |
| Chipset | Intel ® IRIS® Xe graphics card | 1*DP | |
| Output | 2*DP1.4、2*HDMI2.1 | 1*Ghost | |
| Display | VGA+HDMI、VGA+DP、DP+HDMI VGA+HDMI+DP |
1*HDMI | |
| USB | 5 x USB3.2 GEN2 1xUSB2.0 | 1*MIC-IN | |
| Memory | 2xSO-DIMM，DDR4 2666/2933/3200MHz Max64GB | 1*LINE-OUT | |
| Audio | Onboard Realtek ALC897HD | 1*LAN | |
| Network | 1*Realtek RTL8111H | 1*USB2.0+USB3.0 | |
| Storage | 1 x M.2 M Key，2242/2280mm PCIEX4/SATA；1*SATA Port | 2*USB3.2 Gen2 | |
| Expansion Solt | 1 x M.2 E Key（ WIFI6+Bluetooth） | 2*USB3.2 Gen2 | |
| I/O | IT8784E | 1*Power＆HDD LED | |
| BIOS | AMI BIOS | 1*Type-C | |
| Power | DC 12~19V power supply | 1*OPS- C | |
| Cooling System | Comes with CPU FAN | 1*DC | |
| Environment | Operating:0~60℃; Storage: -20~75℃ | Internal I/O | 1*TPM pin |
| 0%~95% Relative Humidity,Non-condensing | 1*COM pin | ||
| Size | 190X172MM | 1*CPU_FAN pin |
