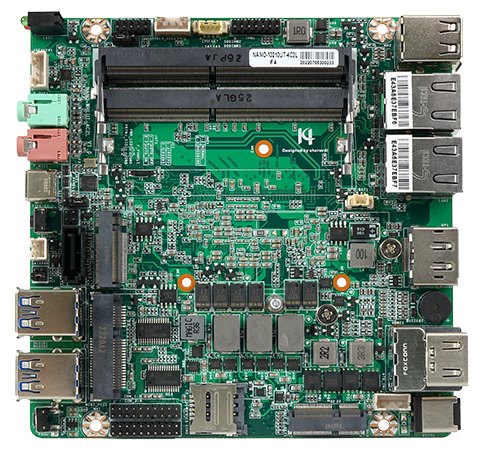

      NANO-WHLUT-4C2L


      Detailed






      Support Intel ® Whistleylake & cometlake processor







Support dual channel SO-DIMM DDR4 2666mhz max64gb







Support 2 * HDMI + 1 * DP output, three display synchronous asynchronous







Support 2 * Realtek rtl8111h / 8111g gigabit network card







Support 3 * USB2.0; 6 * USB3.0







Type-C ( USB3.0 signal)







4*COM RS232







1*M. 2 M Key，1*SATA3.0







1 * MPIE, supporting WiFi / Bluetooth; 1 * SIM card slot; 1*M. 2 E Key,







3G / 4G / 5G module expansion







DC 12V power supply






































CPU
Intel ®  WhiskeyLake&CometLake processor

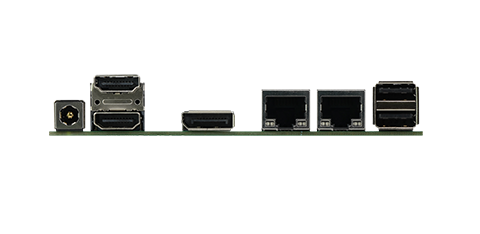

Post I/O interface
1 * DCIN port




Chipset
Intel® SOC
1 * HDMI Port Double Seat 1 * DP Port




Display chip
Intel ®  Core graphics card
1 * LAN2 port (optional with 2 * USB2.0)




Display output
2*HDMI+1*DP
1 * LAN1 port




Multi display support
Three display synchronous asynchronous
1 * USB2.0 port




USB
4*USB3.2 Gen2（10Gbps）；2*USB2.0；1*Type-C
Internal I/O pin
1 * LED status indicator light




Memory
2*SO-DIMM DDR4 2666MHz Max32GB
1 * F_ OUT port




sound effects
On board ALC662 audio decoding controller;
1 * F_ MIC port




Independent power amplifier NS4251（ 3W@4 Ω MAX)
1 * Type-C port




Network card
On board 2 * Realtek RTL8111H/8111G Gigabit Ethernet card
1 * RST button




storage
1 * SATA3.0; 1 * M.2 M Key,
2 * USB3.0 port




supporting PCIEX4 signal
1 * PWR_ ON button




Expansion slot
1 * mPCIE, supporting WiFi/Bluetooth;

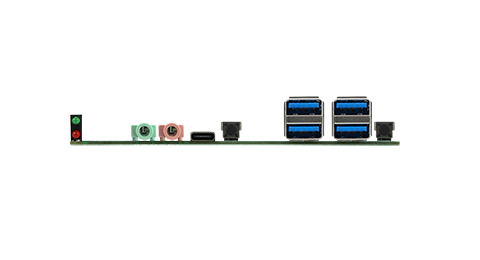

Front I/O interface
1 * TPM pin 1 * CPUFAN socket




1 * SIM card slot; 1 * M.2 E Key
1 * R_ USB2.0 pin (expandable 2 * USB2.0)




I/O chip
ITE8786E-I
1 * GPIO pin




BIOS
AMI BIOS
1 * Speaker socket




power supply
DC/4PIN ATX 12~19V power supply
1 * F_ PANEL pin




Cooling System
Requires self equipped CPU heat sink
1 * SATA socket




Environment
Working temperature: 0-60 ℃; Storage: -20 ℃~75 ℃
1 * SATA_ PWR socket




0%~95% relative humidity, non condensing
4 * COM pin




Size
120X120mm
1 * ATX_ IN socket
