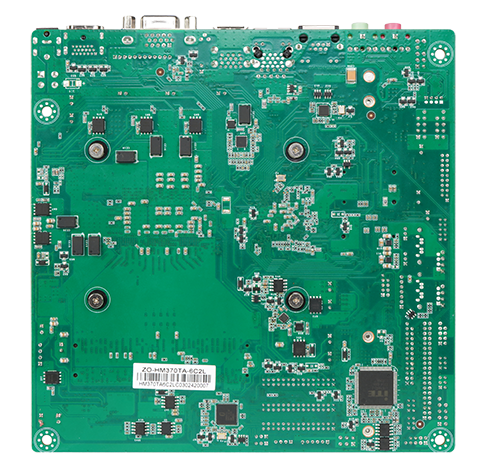

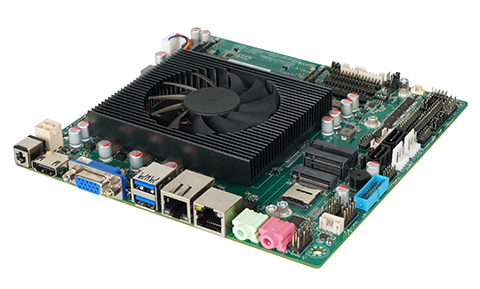

      ZO-HM370TA-6C2L


      Detailed






      Support for Intel ® 8th/9th/10th generation 8300H 9300H 10500H and other H-series processors







Dual channel SO-DIMM, DDR4 2666MHz, Max64GB







Supports LVDS/EDP1+EDP2+HDMI+VGA, any three display synchronous







On board 2 * Realtek RTL8111H/8111G Gigabit Ethernet card







Supports 4 * USB2.0+4 * USB3.2 Gen1 (5Gbps)







Supports 6 * COM (COM2 supports RS422/RS485)







Supports 2 * SATA, 1 * M.2 M Key (supports PCIe X4/SATA signal adaptation)







Supports 1 * M.2 A Key (supports WiFi+Bluetooth module); 1 * M.2 B Key (supporting 3G/4G modules); 1 * SIM slot







DC 12V~19V power supply, supporting power on self start, hardware monitoring






































CPU
Intel ® 8th/9th/10th generation H-series processors

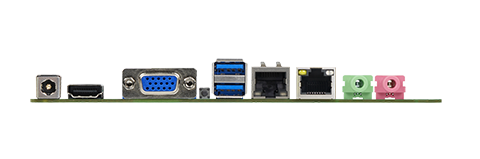

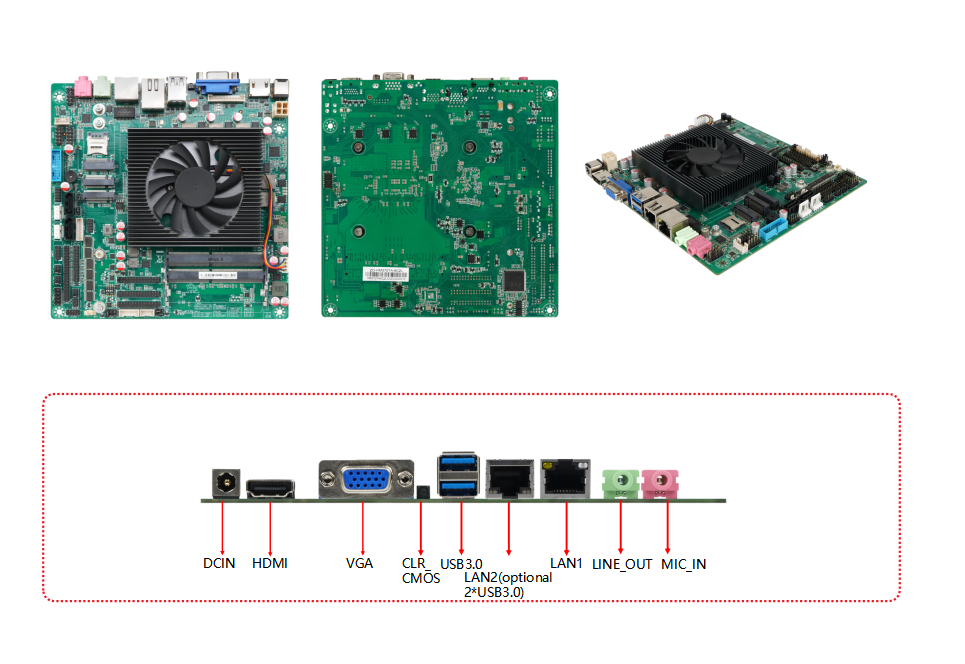

Post I/O interface
1 * DC interface
      1 * HDMI interface
      1 * VGA interface
      1 * CLR_ CMOS buttons
      2 * USB3.2 Gen
      1 interface (5Gbps)
      1 * LAN2 interface (optional 2 * USB3.0)
      1 * LAN1 interface
      1 * MIC-IN interface
      1 * LINE OUT interface




Chipset
Intel® SOC HM370/Z390




Display chip
Intel ®  Ultra Core Graphics Card 630




Display output
LVDS/EDP1+EDP2+HDaMI+VGA，




Multi display support
Supports three display synchronous and asynchronous




USB
4*USB2.0+4*USB3.2 Gen1(5Gbps)




Memory
2*SO-DIMM  DDR4  2666MHz  Max64GB




sound effects
On board ALC269 audio decoding controller;




Independent power amplifier NS4251 2.2W@4 Ω MAX




Network card
On board 2 * Realtek RLT8111H/8111G network card
Internal I/O
1 * F_ AUDIO pin
      1 * SPEAKER pin
      2 * F_ USB pin (expandable 4 * USB2.0)
      1 * F_ USB1 pin (expandable 2 * USB3.2 Gen1)
      1 * GPIO pin
      2 * SATA socket
      2 * JSATA_ PWR pin
      1 * PS/2 pin
      1 * DEBUG pin
      6 * COM pin (supports one RS485)
      1 * F_ PANEL pin
      1 * J_ PRINT pin
      1 * INCN pin
      1 * LCTL pin
      1 * LVDS pin
      2 * EDP pin
      1 * CPU_ FAN pin
      1 * 4Pin ATX power socket
      1 * JVGA pin




storage
2*SATA




1*M.2 M Key（NVME PCIeX4/SATA SSD self-adaption ）




expansion slot
Supports 1 * M.2 A Key (supports WiFi+Bluetooth module); 1 * M.2 B Key (supporting 3G/4G modules); 1 * SIM slot




I/O chip
IT8786E-I




BIOS
AMI  BIOS




power supply
DC/4PINATX   12~19V  power supply




Cooling System
Equipped with CPU fan and heat sink




Environment
Working temperature: 0-60 ℃; Storage: -20 ℃~75 ℃




0%~95% relative humidity, non condensing




Size
170X170mm
