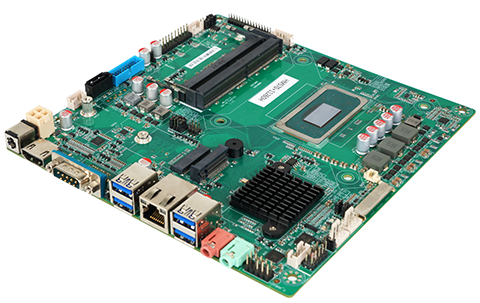

      ZO-HM570T-AIO


      Detailed






      Support for Intel ® Core ™  Tiger Lake 11th generation H-series processor







Supports dual channel SO-DIMM, DDR4 3200MHz, Max32GB







Supports LVDS+EDP1+HDMI display output, three displays simultaneously and asynchronously







Supports 1 * Realtek 8111G/8111H Gigabit Ethernet card (optional dual network)







Supports 4 * USB3.2 Gen2 (10Gbps), 2 * USB3.2 Gen1 (5Gbps), and 4 * USB2.0







1 * M.2 M Key, 1 * SATA3.0







1 * M.2 E KEY, expandable WiFi+Bluetooth (supports wifi6)







DC 12-19V power supply






































CPU
Intel ® Core ™   Tiger Lake 11th generation H-series processor

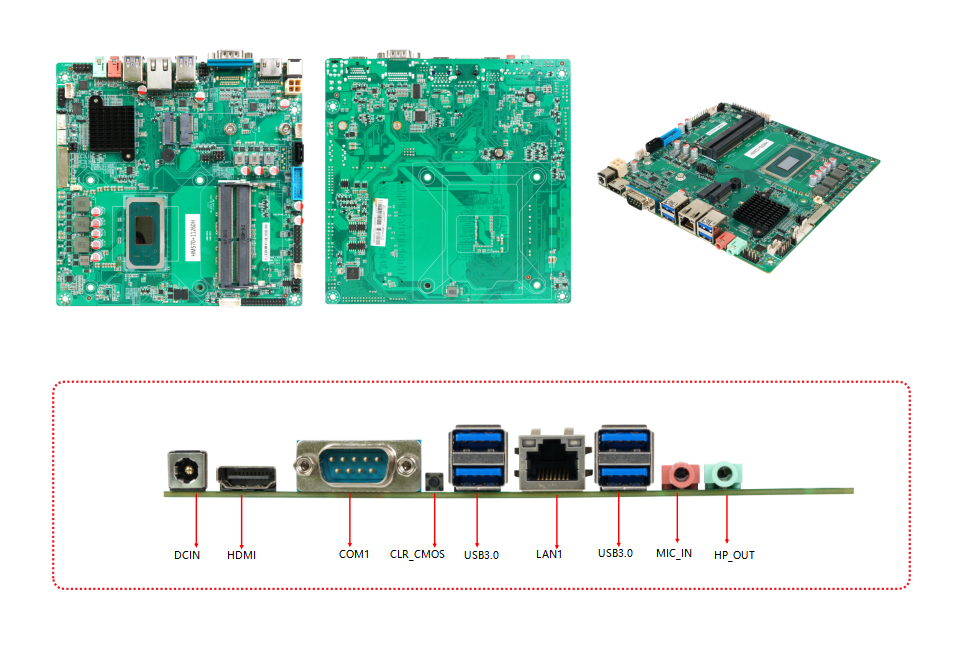

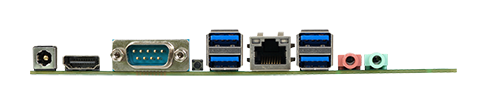

Post I/O interface
1 * DC_ IN port
      1 * HDMI port
      1 * COM port (optional with 1 * VGA port)
      1 * CLR_ CMOS buttons
      2 * USB3.0 port (1 * LAN2 optional)
      1 * LAN1 port
      2 * USB3.0 port
      1 * MIC-IN interface
      1 * HP-OUT interface




Chipset
Intel® HM570




Display chip
Intel ®  Supercore graphics card




Display output
LVDS+EDP+HDMI




Multi display support
Three display synchronous asynchronous




USB
4*USB3.2 Gen2（10Gbps） ， 2*USB3.2 Gen1（5Gbps），4*USB2.0




Memory
2*SO-DIMM DDR4 3200MHz Max32GB
Internal I/O
1 * F_ AUDIO pin
      1 * Speaker pin
      1 * F_ PANEL pin
      1 * SYS_ FAN pin
      1 * CPU_ FAN pin
      1 * EDP1 pin
      1 * INVCN socket
      1 * LVDS pin
      1 * BKCL pin
      1 * GPIO pin
      2 * F_ USB2.0 pin (expandable 4 * USB2.0)
      1 * F_ USB3.0 pin (expandable 2 * USB3.0)
      1 * SATA socket
      1 * SATA_ PWR socket
      1 * GPIO pin
      1 * ATX_ IN socket




sound effects
On board ALC269 audio decoding controller;




Integrated power amplifier 2.2W@4 Ω MAX




Network card
On board 1 * Realtek 8111G/8111H Gigabit Ethernet card




storage
1*SATA3.0 ; 1*M.2 M Key




expansion slot
1 * M.2 E Key, supporting WiFi/Bluetooth module expansion




I/O chip
IT8613E-I




BIOS
AMI  BIOS




power supply
DC/4PIN ATX  12~19V




Cooling System
Requires self equipped 115X CPU heat sink




Environment
Working temperature: 0-60 ℃; Storage: -20 ℃~75 ℃




0%~95% relative humidity, non condensing




Size
170X170mm
