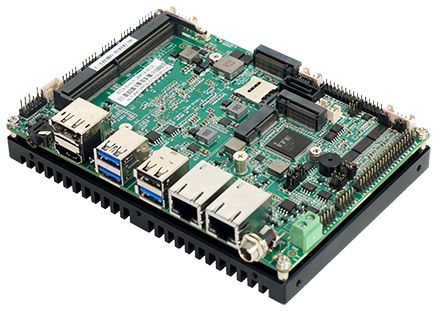

      EC3-EHLT-6C2L


      Detailed






      Product Parameters







Support for Intel ® Elkhart Lake J6412/J6413 Processor







Supports single channel SO-DIMM, DDR4 3200MHz, Max16GB, supports LVDS/EDP+HDMI+DP display output, three displays synchronous and asynchronous







On board 2 * Intel I226-V (transmission rate 2.5Gb)







Supports 3 * USB3.2 Gen1 (5Gbps), 7 * USB2.0







1 * M.2 M Key, 1 * SATA Port







1 * M.2 A Key, supporting WiFi/Bluetooth module expansion; 1 * M.2 B Key, supporting 4G/5G module expansion







DC 12V power supply






































CPU
Intel® Elkhart Lake J6412/J6413 Processor

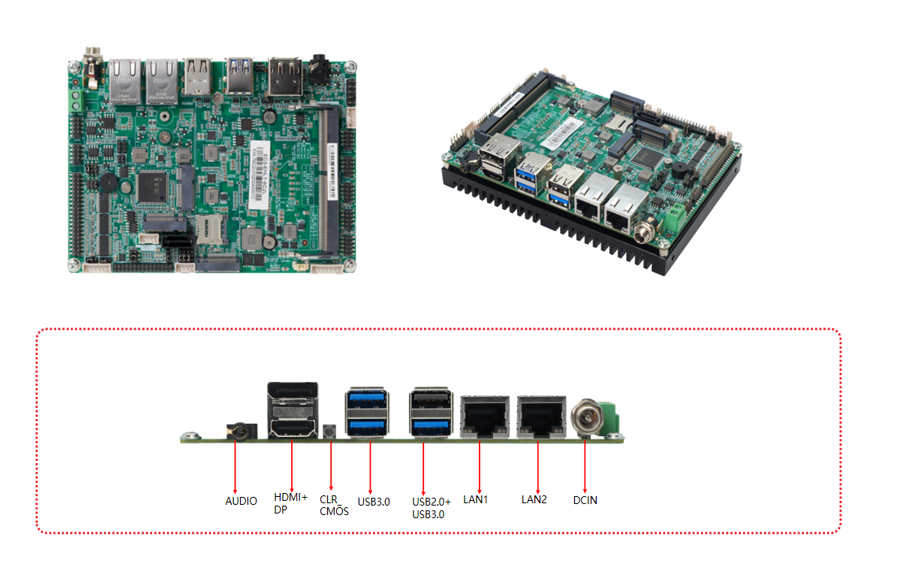

Post I/O interface
1 * DC_ IN port




Chipset
Intel® SOC
1 * LAN2 port




Display chip
Intel ®  Core graphics card
1 * LAN1 port




Display output
LVDS/EDP+HDMI+DP
1 * USB3.0+1 * USB2.0 double seater port




Multi display support
Three display synchronous asynchronous
2 * USB3.2 Gen1 (5Gbps) port




USB
3*USB3.2 Gen2（10Gbps） ，7*USB2.0
1 * HDMI+1 * DP port




Memory
1*SO-DIMM DDR4 3200MHz Max32GB
1 * AUDIO interface




sound effects
On board ALC269 audio decoding controller;
      Integrated power amplifier（ 2.2W@4 Ω MAX)
Internal I/O
1 * F_ AUDIO pin




1 * Speaker pin




3 * F_ USB2.0 pin (expandable 6 * USB2.0)




Network card
On board 2 * Intel I226-V (transmission rate 2.5Gb)
1 * F_ PANEL pin




storage
1*SATA Port ; 1*M.2 M Key
1 * GPIO pin




expansion slot
1 * M.2 A Key, supporting WiFi/Bluetooth module expansion;
      1 * M.2 B Key, supporting 4G/5G module expansion
1 * PS2 pin




1 * BKCL pin




1 * LVDS pin




I/O chip
IT8786E-I
1 * INVERT socket




BIOS
AMI  BIOS
1 * SATA socket




power supply
DC/2PIN AT  12V power supply
1 * SATA_ PWR socket




Cooling System
Equipped with No Fan heat sink
1 * EDP socket




Environment
Working temperature: 0-60 ℃; Storage: -20 ℃~75 ℃ 0%~95% relative humidity, non condensing
6 * COM pin




Size
156X102mm
1 * AT_ IN socket
