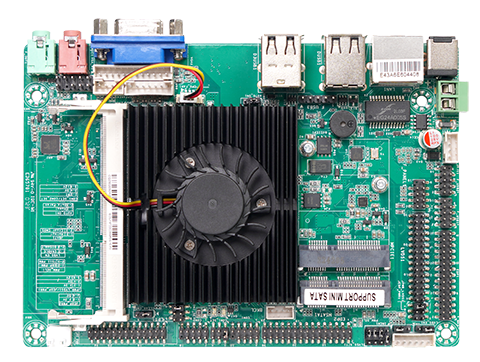

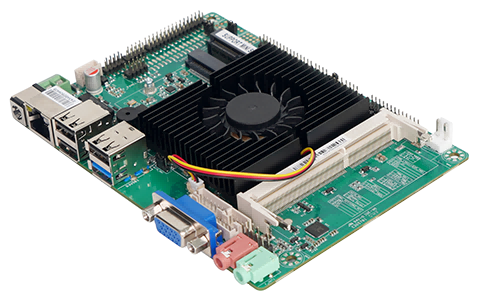

      EC3-J19TD-2C1L-GPOS


      Detailed






      Product Parameters







Support for Intel ®  Bay Trail J1900/J1800/N2840 processors







Single channel SO-DIMM, DDR3L 1333MHz, Max8GB







Supports LVDS/EDP1+EDP2+VGA, dual display synchronous







On board 1 * Realtek RTL8111H/8111G Gigabit Ethernet card







Supports 8 * USB2.0+1 * USB3.0







Supports 2 * COM, JCOM1/2 defaults to supporting the 9th Pin with optional power







Supports 1 * SATA and 1 * Mini SATA







Supports 1 * Mini PCIE (supports WiFi/Bluetooth modules)







DC 12V power supply, support power on auto start, watchdog, wake-on-LAN






































CPU
Intel ® Gulf Trail J1900/J1800/N2840 processor
Post I/O interface
1 * DC interface 1 * LAN




Chipset
Intel® SOC
1 interface




Display chip
Intel ®  HD Graphics nuclear display
 2 * USB2.0 interface




Display output
LVDS/EDP1+EDP2+VGA
1 * USB3.0+1 * USB2.0 interface




Multi display support
Supports dual display synchronous/asynchronous output
1 * VGA interface




USB
1*USB3.0+8*USB2.0
1 * LINE OUT interface




Memory
1*SO-DIMM  DDR3L  1333MHz  Max8GB
1 * MIC-IN interface




sound effects
On board ALC897 HD audio decoding controller;
      Independent power amplifier ALC105 3W@4 Ω MAX
Internal I/O
1 * F_ AUDIO pin




Network card
On board 1 * Realtek RLT8111H/8111G Gigabit Ethernet card
1 * SPEAKER pin




1 * VGA_ H1 pin




storage
1*SATA, 1*Mini-SATA
1 * PS/2 pin




expansion slot
1 * Mini PCIE (supports WiFi/Bluetooth modules)
1 * LPT_ PWR pin




1 * LPT pin




I/O chip
ITE8784E-I
2 * COM RS232 pin




BIOS
AMI  BIOS
1 * EDP2 pin




power supply
DC/2PIN AT   12V power supply
1 * BKCL pin




1 * INCN pin




Cooling System
Equipped with CPU heat sink
1 * LVDS/EDP




1 pin (optional function)




Environment
Working temperature: 0-60 ℃; Storage: -20 ℃~75 ℃
      0%~95% relative humidity, non condensing
1 * F_ PANEL pin




1 * GPIO pin




3 * F_ USB pin (expandable 5 * USB2.0)




Size
156X102mm
1 * RJ11 socket




1 * 2Pin AT power socket
