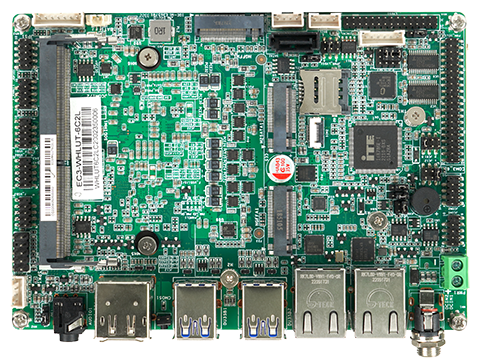

      EC3-WHLUT-6C2L


      Detailed






      Support for Intel® Core TM Whiskeylake&Coffeelake -U Processor







Support single channel SO-DIMM DDR4 2400MHz Max16GB







Support LVDS/EDP+DP+HDMI dual display synchronous asynchronous







On board 1 * Intel l219LM+1 * Intel l211/210AT







M. 2 Key M supports PCle * 4 or SATA SSDs







6 * USB2.0+4 * USB3.2 Gen 2 (10Gbps)







6 * COM232 (supports two RS485 and one RS422 channels)







Support encryption module: TPM2.0/TCM (optional)







Supports diskless startup, network wake-up, power on startup, watchdog







DC 12-24V power supply






































CPU
Intel ® Core ™  Whiskeylake&Cometlake processor

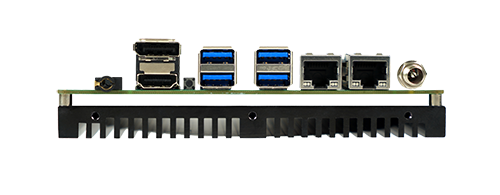

Post I/O interface
1 * AUDIO interface
      1 * DP+HDMI interface double-layer seat
      1 * CMOS button
      4 * USB3.2 Gen 2 (10Gbps) interface
      2 * LAN interface
      1 * DC interface




Chipset
Intel® SOC




Display chip
Intel ®  HD Graphics nuclear display




Display output
LVDS/EDP+HDMI+DP




Multi display support
Three display synchronous asynchronous




USB
4*USB3.2 Gen2（10Gbps） ，6*USB2.0




Memory
1*SO-DIMM DDR4 2400MHz Max32GB




sound effects
On board ALC269 audio decoding controller;
Internal I/O
1 * JPS1 pin
      1 * GPIO pin
      1 * F_ PANEL pin
      3 * F_ USB2.0 pin (expandable 6 * USB2.0)
      1 * SPEAKER pin (4Q, 3W power amplifier)
      1 * F-AUDIO pin
      2 * COM pins (COM1 supports 232/485/422, COM2 supports RS232/RS485)
      1 * COM_ CON pin (4 * COM232)
      1 * LVDS pin/1 * EDP FPC
      1 * INVERT pin
      1 * SATA pin
      1 * SATA_ PWR pin
      1 * BKCL pin




Integrated power amplifier 2.2W@4 Ω MAX




Network card
On board 1 * Intel I226-V; 1 * Intel WGI219-LM Gigabit Network Card




storage
1*SATA3.0 ; 1*M.2 M Key




expansion slot
1 * M.2 A Key, supporting WiFi/Bluetooth module expansion




I/O chip
IT8786E-I




BIOS
AMI  BIOS




power supply
DC/2PIN AT  12~24V  Wide voltage power supply




Cooling System
Equipped with fanless heat sink




Environment
Working temperature: 0-60 ℃; Storage: -20 ℃~75 ℃




Size
145X100mm









      嵌入式工控機(jī)EC3-WHLUT-6C2L產(chǎn)品細(xì)節(jié)圖
