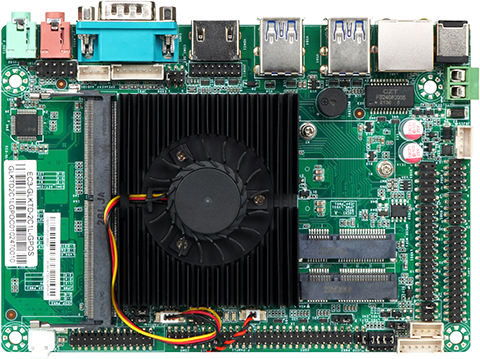

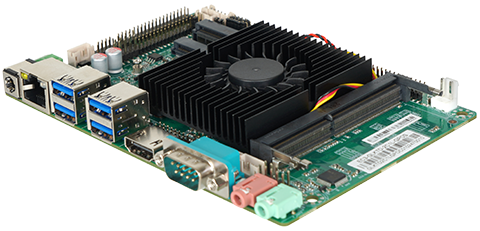

      EC3-GLKTD-2C1L-GPOS


      Detailed






      Product Parameters







Support for Intel ® Gemini Lake J4125/J4105/N4000 Processor







Supports single channel SO-DIMM, DDR4 2400MHz, Max8GB







Supports LVDS1/EDP1+EDP2+HDMI output, three display synchronous







On board 1 * Realtek RTL8111H/8111G Gigabit Ethernet card







Supports 4 * USB3.2 Gen1 (5Gbps), 6 * USB2.0







Supports 2 * COM232; 1 * RJ11 cash box socket







1 * mSATA; 1 * mPCIE, supporting WIFI/Bluetooth module expansion







DC 12V power supply






































CPU
Intel®Gemini Lake J4125/J4105/N4000 Processor

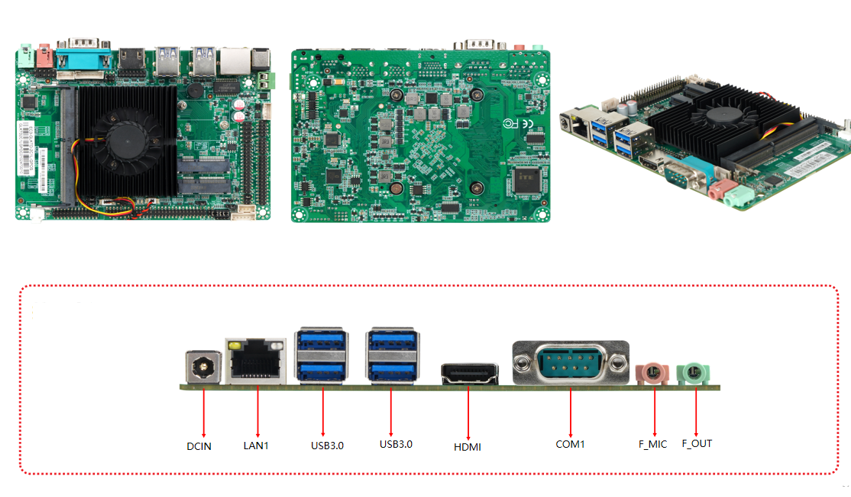

Post I/O interface
1 * DC_ IN port




Chipset
Intel® SOC
1 * LAN1 port




Display chip
Intel® UHD Graphics 600
2 * USB3.2 Gen1 (5Gbps) port




Display output
LVDS1/EDP1+EDP2+HDMI
2 * USB3.2 Gen1 (5Gbps) port




Multi display support
Three display synchronous asynchronous
1 * HDMI port




USB
4*USB3.2 Gen1（5Gbps） ，6*USB2.0
1 * COM port




Memory
1*SO-DIMM DDR4 2400MHz Max8GB
1 * F_ MIC port




sound effects
On board ALC897 audio decoding controller;
      Independent power amplifier NS4251 3W@4 Ω MAX
1 * F_ OUT port




Internal I/O
1 * F_ AUDIO pin




1 * Speaker pin




Network card
On board 1 * Realtek RTL8111H/8111G Gigabit Ethernet card
1 * JPS2 socket




storage
1*mSATA
1 * HDMI pin




expansion slot
1 * mPCIE, supporting WIFI/Bluetooth module expansion
1 * LPT_ PWR pin




1 * LPT pin




I/O chip
IT8684E-I
1 * CPU_ FAN socket




BIOS
AMI  BIOS
1 * COM pin




power supply
DC/2PIN AT 12V power supply
1 * GPIO pin




1 * F_ PANEL pin




Cooling System
Equipped with fan and radiator
2 * EDP pin




1 * INCN pin




Environment
Working temperature: 0-60 ℃; Storage: -20 ℃~75 ℃
      0%~95% relative humidity, non condensing
1 * BKCL pin




1 * LVDS pin




3 * F_ USB2.0 (Scalable 6 * USB2.0)




Size
145x100mm
1 * RJ11 socket




1 * ATX_ IN socket
