      EC3-J19T-6CD8


      Detailed






      Product Parameters







Support for Bayrail processors J1900/J1800/N2807







Supports 1 * SO-DIMM, DDR3L 1333MHz Max 8GB







Supports multiple display options including VGA, HDMI, and LVDS for any dual display







Supports 1 * USB3.0, 9 * USB2.0







Supports 1 * SATA2.0 and 1 * MINI-SATA







Supports 1 * Mini PCIE (for WIFI/Bluetooth/4G Card)







Supports 6 * COM232, (COM2 supports 232/485, COM1 supports TTL/232)







Standard 3.5-inch motherboard, supporting call auto start, watchdog, wake-on-LAN, regular startup, 9~24V wide voltage power supply






































CPU
Support for Bayrail processors J1900/J1800/N2807

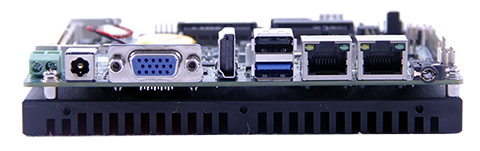

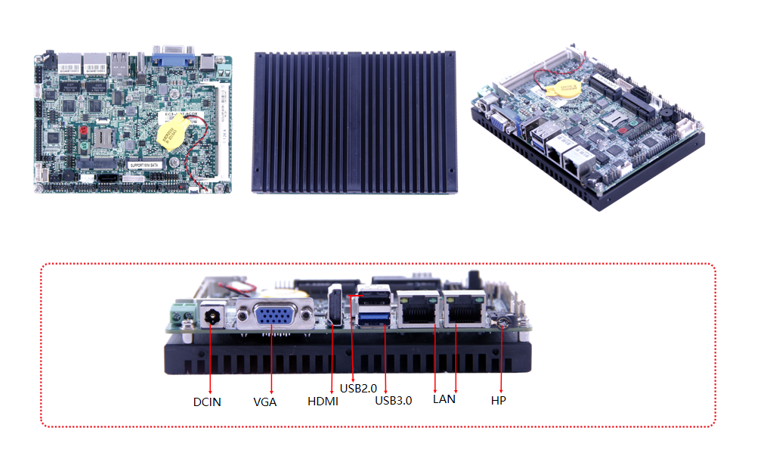

Post I/O interface
1 * DC interface




Chipset
Intel® SOC
1 * VGA interface




Display chip
Intel ®  HD Graphics nuclear display
1 * HDMI interface




Display output
LVDS+VGA LVDS+HDMI VGA+HDMI
1 * USB3.0+USB2.0 interface




Multi display support
Supports dual display synchronous/asynchronous display
2 * LAN




USB
1*USB3.0+9*USB2.0
1 * AUDIO interface




Memory
1*SO-DIMM，DDR3L 1333MHz Max 8GB
Internal I/O
1 * F_ AUDIO pin




sound effects
On board Realtek ALC662HD audio decoding controller
1 * JSPK pin




Network card
On board 2 * Intel 82583V Gigabit Ethernet card
1 * F_ PANEL pin




storage
1 * SATA2.0 interface 1 * mSATA
1 * LVDS pin




expansion slot
1 * Mini_ Pcie (for WIFI+Bluetooth/4G expansion module)
1 * INCN1 pin




I/O chip
ITE8786E-I
1 * BKCL pin




BIOS
AMI  BIOS
4 * F_ USB 2.0 pin (expandable 8 * USB 2.0)




power supply
DC 12-24V wide voltage power supply
1 * FAN pin




Cooling System
Equipped with CPU heat sink
6 * COM pin




Environment
Working temperature: 0-60 ℃; Storage: -20 ℃~75 ℃
      0%~95% relative humidity, non condensing
1 * SATA socket




1 * SATA_ PWR pin




1 * JPS2 pin




Size
146X102mm
1 * GPIO pin




1 * 2PIN ATX socket
