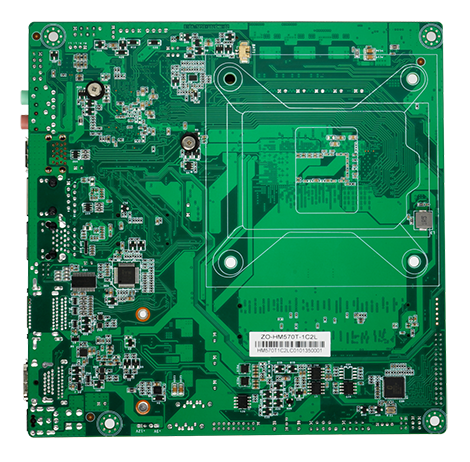

      ZO-HM570-1C2L


      Detailed






      Support for Intel ®  Core ™  11th generation H-series processors







2 * SO-DIMM DDR4 3200MHz Max64GB







Supports multiple display outputs: DP/HDMI/LVDS/EDP, any four display







On board 1 * Realtek RTL8111H Gigabit Ethernet card (Colay 8111G, optional dual network)







4 * USB2.0, 4 * USB3.0







2 * SATA, 1 * M.2 M Key (supports Pcie X4 and SATA SSD)







 1 * M.2 E Key, (supports Pcie X1, WiFi+Bluetooth modules)







Can support automatic power on







DC 12-19V input






































CPU
Intel ®  Core ™ 11th generation H-series processors

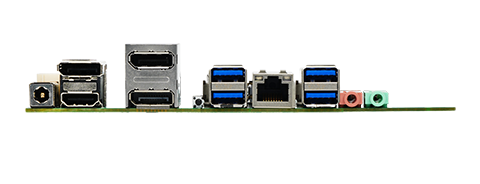

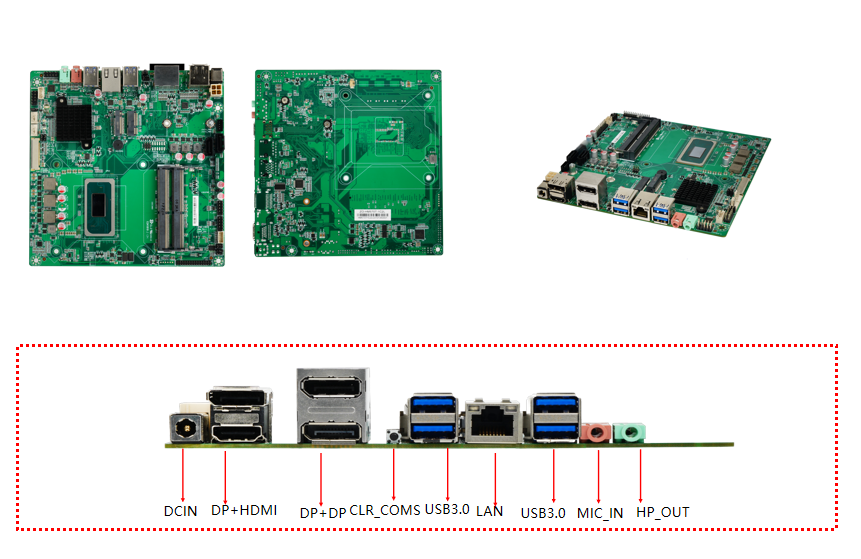

Post I/O interface
1 * DCIN
      1 * DP+HDMI port
      1 * DP+DP port 2 * USB3.0 port 1
      2 * USB3.0 Port 2 (1 * LAN optional)
      1 * LAN port
      1 * MIC-IN interface
      1 * LINE OUT interface




Chipset
Intel® MH570




Display chip
Intel ®  integrated graphics




Display output
DP/HDMI/LVDS/EDP




Multi display support
Any four sets of four displays (copy, expansion mode)




USB
4*USB2.0 ；4*USB3.0
Internal I/O
1 * LVDS pin
      1 * EDP socket
      1 * SPEAKER pin
      1 * GPIO pin
      2 * SATA_ Port
      1 * SATA_ PWR
      2 * USB2.0 pin (expandable 4 * USB2.0)
      1 * 4PIN ATX
      1 * F_ AUDIO pin
      1 * F_ PANEL pin
      1 * eSPI pin
      1 * BKCL pin
      1 * CLR_ CMOS jump cap
      1 * PWR_ EDP Jump Hat
      1 * LVDS_ EN jump cap
      1 * JME jump cap
      1 * AUTO_ ON jump cap (self start when powered on)
      1 * C_ FAN
      1 * S_ FAN




Memory
2*SO-DIMM  DDR4  3200MHz  Max64GB




sound effects
On board Realtek ALC269HD audio decoding controller




Network card
On board 1 * Realtek RTL8111H Gigabit Ethernet card (optional dual network)




storage
2*SATA Port;    1*M.2 M Key (Supports Pcie X4 and SATA SSDs) 1*mSATA




expansion slot
1*M.2 E Key(support Pcie X1、WIFI/Bluetooth)




I/O chip
IT8613E




BIOS
AMI  BIOS




power supply
DC 12~19V power supply




Cooling System
Requires self equipped 115X CPU heat sink




Environment
Working temperature: 0-60 ℃; Storage: -20~75 ℃




0%~95% relative humidity, non condensing




Size
170mm X 170mm
