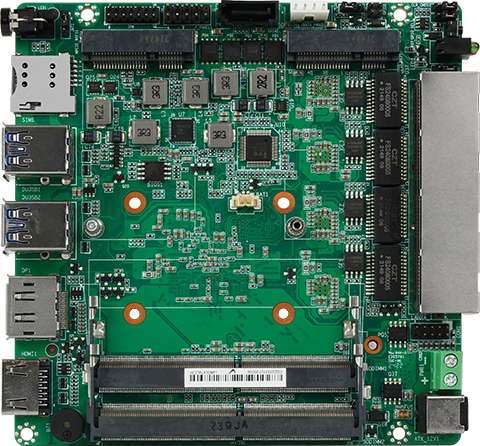

LAN-GLKT-4LC
Detailed
Support Intel® Gemini lake J4125/J4105/N4000 Processor
Dual channel SO-DIMM DDR4 2133/2400MHz Max8GB
Support HDMI+DPOutput, dual display, synchronous and asynchronous
Support 4*Intel I225 Gigabit Ethernet
Support 4*USB3.0
1*COM RS232
1*mSATA，1*SATA3.0, 1*M.2 M Key
1 * MPIE, supporting WiFi / Bluetooth / 4G module expansion; 1 * SIM card slot
DC 12V pwer supply
0755-83650405 | Specification parameters | |||

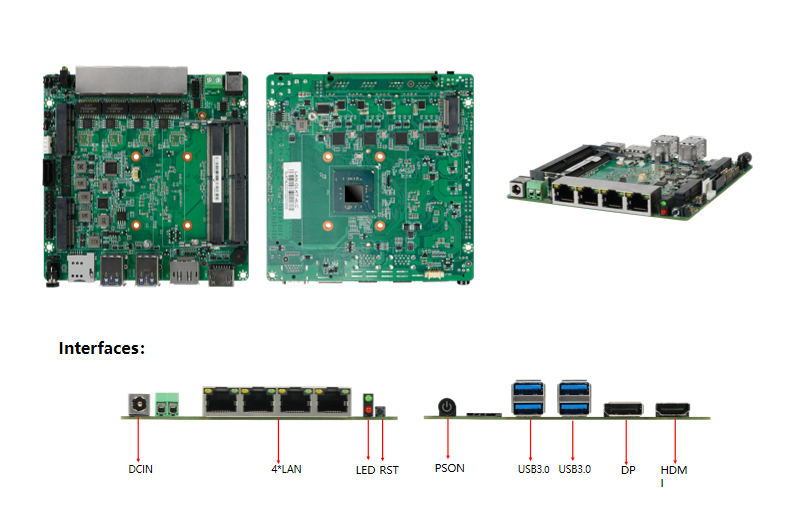

| CPU | Intel® Gemini lake J4125/J4105/N4000 Processor | Rear I / O interface | 1*DCIN port |
| Chipset | Intel® SOC | 4*LAN port | |
| Display chip | Intel® UHD Graphics 600 | 1 * LED status indicator | |
| display output | HDMI+DP | 1*RST_ GPIO key | |
| Multi display support | Dual display synchronous asynchronous | Front I / O interface | 1*PWR_ON Key |
| USB | 4*USB3.0 | 4*USB3.0 port | |
| Memory | 2*SO-DIMM DDR4 2133/2400MHz Max8GB | 1*DP port | |
| Audio | N/A | 1*HDMI port | |
| network card | On board 2 * Realtek rtl8111h / 8111g gigabit network card | Internal I / O pin | 1*TPM Pin 1*F_PANEL Pin 1*SATA Socket 1*SATA_PWR Socket 1*GPIO Pin 1*COM Pin 1*CFAN Socket |
| storage | 1*SATA3.0; 1*Msata; 1*M.2 M Key | ||
| Expansion slot | 1*mPCIE，Support WiFi / Bluetooth / 4G module expansion; 1 * SIM card slot | ||
| I/Ochip | ITE8613E-I | ||
| BIOS | AMI BIOS | ||
| power supply | DC / 2pin Phoenix terminal 12V power supply | ||
| Heat dissipation system | CPU heat sink is required | ||
| environment | Working: 0 ~ 60 ℃; Storage: - 20 ℃ ~ 75 ℃ 0% - 95% relative humidity, no condensation |
||
| Main board size | 120X120mm | ||
