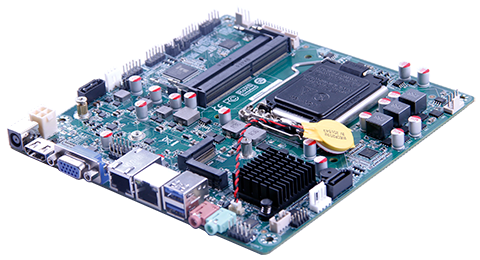

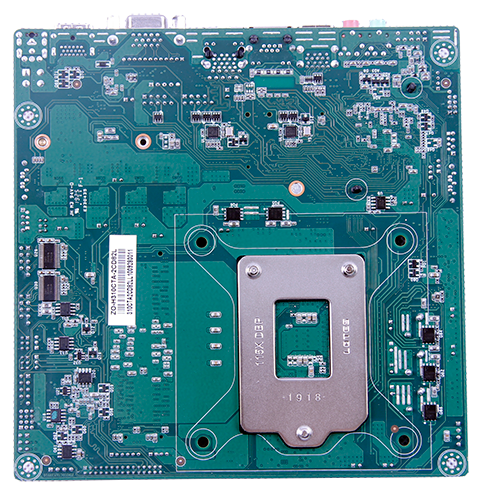

      ZO-H310CTA Series Motherboard


      Detailed






      Supports Intel i3/i5/i7 CoffeeLake-S/OfferLake-R-S Desktop 65W, LGA1151 processor







Supports 2 * SO-DIMM DDR4 2400/2666MHz up to 32GB







Supports multiple display interfaces VGA, HDMI, LVDS







Supports 1 * M.2 Key A, supports WIFI+Bluetooth







Supports 1 * M.2 Key M, supports SATA/PCIE SSD







On board 1/2 * Realtek RTL8111H Gigabit Ethernet card







Supports 4 * USB3.1+5 * USB2.0







Supports 2 * RS232; COM2 supports 1 * RS232/422/485 jump cap options







Support power on automatic startup, regular startup, unattended, wake-on-LAN






































CPU
Intel i3/i5/i7  CoffeeLake-S /CoffeeLake-R-S  Desktop 65W，LGA1151 processor
Post I/O interface
1/2 * LAN interface
      2/4 * USB3.1 interface (optional between LAN2 and USB3.1)
      1 * VGA interface
      1 * HDMI interface
      1 * MIC-IN interface
      1 * LINE OUT interface
      1 * DC interface




Chipset
Intel H310C




Display chip
Intel CPU built-in display core




Display output
VGA 、HDMI、LVDS




Multi display support
Dual display synchronous or asynchronous




USB
2/4*USB3.1+5*USB2.0




Memory
2*SO-DIMM  DDR4  2400/2666MHz   32GB
Internal I/O
1 * F-AUDIO pin
      1 * SPEAKER pin
      1 * DEBUG pin
      2 * SATA pin
      2 * SATA_ PWR pin
      3 * F_ USB2.0 pin (expandable 5 * USB2.0)
      1 * VGA pin
      1 * 4PIN ATX pin
      2 * COM232 pin
      1 * COM422/485 pin
      1 * F_ PANEL pin
      1 * LVDS pin
      1 * INVERT pin
      1 * BKCL pin
      1 * SFAN pin
      1 * CFAN pin




sound effects
On board Realtek ALC269HD audio decoding controller




Network card
On board 1/2 * Realtek RTL8111H Gigabit Ethernet card




storage
2*SATA3.0     1*1*M.2 Key M,支持SATA /PCIe SSD




expansion slot
1*M.2 Key A，support WIFI+Bluetooth




I/O chip
ITE8784E-I




BIOS
AMI  BIOS




power supply
DC  12~19V Wide voltage power supply




Cooling System
Intel standard 115X heat dissipation fixed hole position




Environment
0~60 ℃; 0%~95% relative humidity, non condensing




Size
170X170MM
