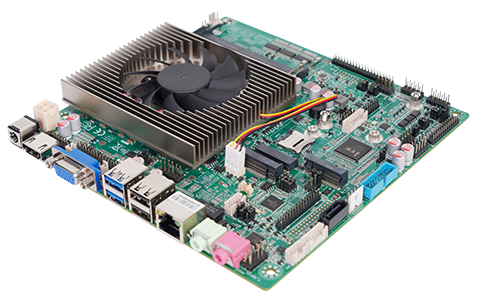

      ZO-TGLUTB-6C2L


      Detailed






      Support for Intel ® Tiger Lake UP3 Processor (1135G7/1145G7, etc.)







Supports dual channel SO-DIMM, DDR4 3200MHz, Max32GB







Supports LVDS1/EDP1+EDP2+HDMI+VGA output, four display synchronous







On board 1 * Realtek RTL8111H/8111G Gigabit Ethernet card (optional dual network)







Supports 2 * USB3.2 Gen2 (10Gbps), 2 * USB3.2 Gen1 (5Gbps), and 8 * USB2.0; 6 * COM (COM1/2/3 supports Pin1/9 electrification options, with resistance selection, default to Pin9 electrification)







1 * M.2 M Key, supporting optional PCIEX2/SATA signals; 1 * SATA III (6.0 Gb/s)







1 * M.2 E Key, supporting Wifi6/Bluetooth module expansion; 1 * M.2 B Key, supporting 4G/5G module expansion; 1 * SIM card slot







DC 12V power supply






































Specification parameters




CPU
Intel®Tiger Lake-UP3 Processor 1135G7/1145G7 etc

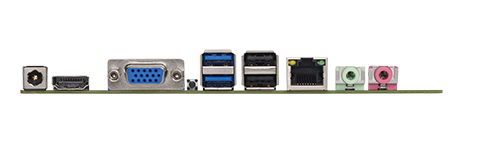

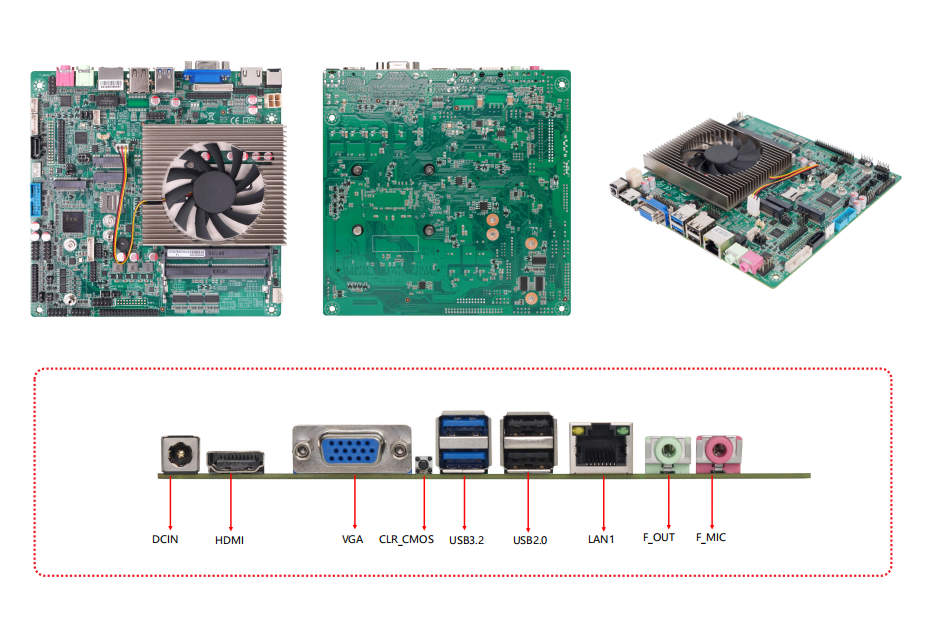

Post I/O interface
1*DC_IN Port




Chipset
Intel® SOC
1*HDMI port




Display chip
Intel® Sharp torch ®  X ? graphics card
1*VGA port




Display output
LVDS1/EDP1+EDP2+HDMI+VGA


      1 * CLR_ CMOS buttons






Multi display support
Four display synchronous asynchronous
2*USB3.2 Gen2(10Gbps) port




USB
2*USB3.2 Gen2（10Gbps） ，2*USB3.2 Gen1
      （5Gbps），8*USB2.0


      1 * LAN2 port (optional with 2 * USB2.0)






1*LAN1 port




1*F_OUTport




Memory
2*SO-DIMM DDR4 3200MHz Max32GB
1*F_MIC port




Sound effects
On board ALC897 audio decoding controller;
      Independent power amplifier NS4251 3W@4 Ω MAX
Internal I/O pin
1*F_AUDIO contact pin




1*Speaker contact pin




1*INVERT contact pin




Network card
On board 1 * Realtek RTL8111H/8111G Gigabit Ethernet card (optional dual network)）
2*EDP contact pin




1*LVDS contact pin




Storage
1 * M.2 M Key, supporting PCIEX2/SATA signals
      Select; 1 * SATA III (6.0 Gb/s)
1*BKCL contact pin




1*SATA contact pin




1*SATA_PWR contact pin




Expansion slot
1 * M.2 E Key, supporting Wifi6/Bluetooth module expansion;
      1 * M.2 B Key, supporting 4G/5G module expansion; 1 * SIM card slot
1*F_USB1（extensible 2*USB3.2 Gen1）




3*F_USB2.0（extensible 6*USB2.0）




1*LPT contact pin




IO chip


IT8786E-I
1*JPS2 contact pin




BIOS
AMI BIOS
1*GPIO  contact pin




Power supply
DC/4PIN ATX 12V  power supply
1*TPM contact pin




Heat dissipation system
Equipped with fan and radiator
1*F_PANELcontact pin




6*COMcontact pin




Environment


      Working temperature: 0-60 ℃;


      Storage: -20 ℃~75 ℃0%~95% relative humidity, non condensing


1*CFAN contact pin




1*SFAN contact pin




1*JHDMI contact pin




Main board size
 170X170mm
1*JVGA contact pin




1*ATX_IN socket
