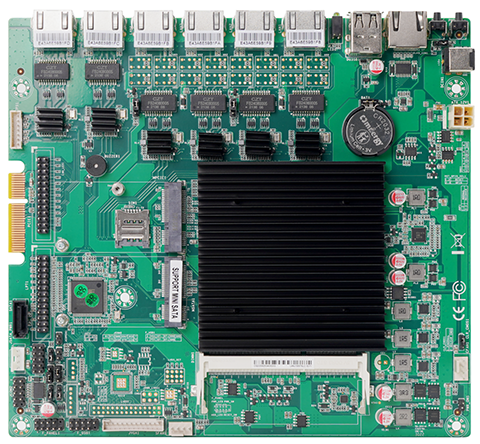

LAN-J1900T-6LC
Detailed
Support Intel® Bay Trail Processor，J1900/1800
Single Channel SO-DIMM DDR3L 1333MHz Max8GB
Built in1*VGA PIN，Support VGA Display Output
Support 1 *SATA2.0；1 *CF Slot；1*mSATA
Support 6*Intel I211/I210(Support2*Bypass: Optional）
Support 4*USB、1*COM_RJ45、1*com232
Onboard 1*Mini-PCIE ，Support Wifi/4G
1*PCIEX4 Slot （Reserved）
Support PS/2、LPT、8*GPIO; Support Soft/ Hard restart
DC 12V Power Supply；Watchdog，Hardware Monitoring
0755-83650405 | Specification parameters | |||

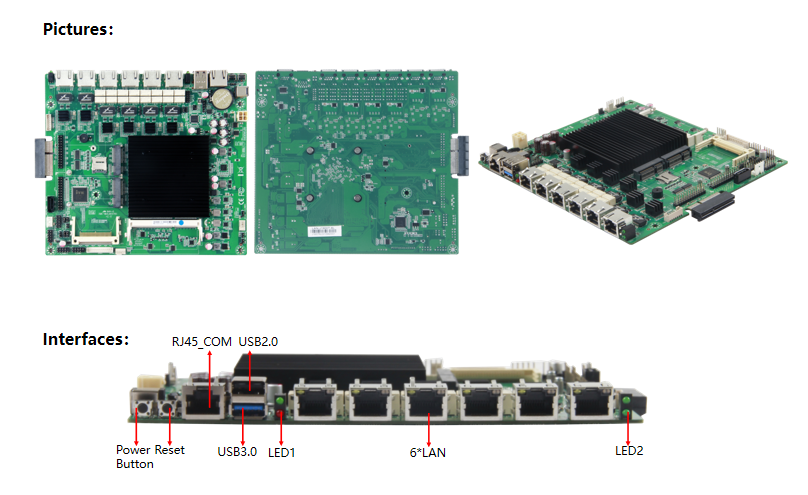

| CPU | Support Intel®Bay Trail J1900/1800 | Rear I/O | 1*POWER |
| Chipset | Intel®SOC | 1*RESET | |
| GPU | Intel® HD Graphics | 1*RJ45_COM | |
| Display | Built in 1*VGA PIN | 1*USB2.0 | |
| Multi Display | 1*COM_RJ45，1*COM232 | 1*USB3.0 | |
| USB | 1*USB3.0 ，3*USB2.0 | 2*LED | |
| Memory | 1*SO-DIMM DDR3L 1600MHz Max8GB | 6*LAN | |
| Audio | 1*PCIE（Reserved） | 1*DC | |
| 1*LPT; 1*SIM，1*CF Slot（Reserved） | Internal I/O | 1*4PIN ATX PIN | |
| Network | Onboard 6*Intel I211/I210 Gigabit nics | 1*BP_LED PIN | |
| Storage | 1*SATA ，1*mSATA | 1*PS/2 PIN | |
| WIFI | 1*Mini_PCIE （For WIFI/4G） | 1*LAN_LED PIN | |
| I/O Chip | ITE8784E-I | 1*LPT PIN | |
| BIOS | AMI BIOS | 1*SATA_PWR PIN | |
| Power | DC12V /ATX | 1*GPIO PIN | |
| Cooling System | Fanless | 1*COM PIN | |
| 1*PANEL PIN | |||
| Operating environment | Operating：0~60℃; Storage：-20℃~75℃ 0% ~ 95% Relative Humidity,Non-condensing |
1*USB2.0 PIN(Support 2*USB2.0) | |
| 1*VGA PIN | |||
| 1*SYS FAN PIN | |||
| Size | 200 X 180mm | 1*CPU FAN PIN | |
| 1*F_PANEL PIN | |||
