      EC3-SKYUT-6CD8


      Detailed






      Product Parameters







Support for Intel ®  Kaby Lake & Skylake Processor







Supports single channel SO-DIMM, DDR4 2133MHz, Max32GB







Supports LVDS+HDMI+VGA display output, three displays simultaneously and asynchronously







On board 2 * Intel I226-V (transmission rate 2.5Gb)







Supports 2 * USB3.2 Gen1 (5Gbps), 8 * USB2.0







On board 6 * COM (COM1 supports TTL/232, COM supports 232/485)







1 * mSATA, 1 * SATA Port







1 * mPCIE, supporting WiFi/Bluetooth/4G module expansion;







DC 12-24V wide voltage power supply






































CPU
Intel® Kaby Lake & Skylake Processor

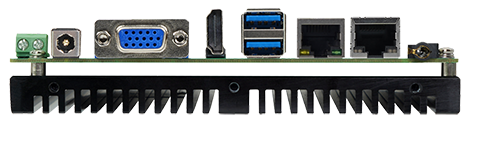

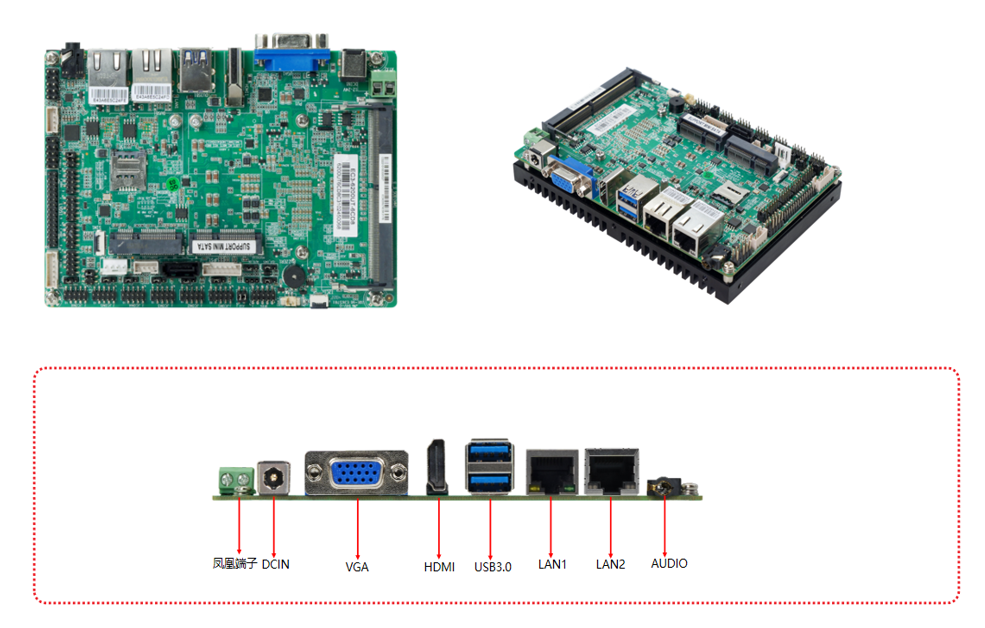

Post I/O interface
1 * DC_ IN port




Chipset
Intel® SOC
1 * VGA port




Display chip
Intel ®  Core graphics card
1 * HDMI port




Display output
LVDS+HDMI+VGA
2 * USB3.2 Gen




Multi display support
Three display synchronous asynchronous
1 (5Gbps) port




USB
2*USB3.2 Gen2（10Gbps） ，8*USB2.0
1 * LAN1 port




Memory
1*SO-DIMM DDR4 2133MHz Max32GB
1 * LAN2 port




sound effects
On board ALC269 audio decoding controller; Independent power amplifier NS4251（ 3W@4 Ω MAX)
1 * AUDIO interface




Network card
On board 2 * Intel I226-V (transmission rate 2.5Gb)
Internal I/O
1 * Speaker pin




storage
1*SATA Port ; 1*mSATA
1 * F_ PANEL pin




expansion slot
1 * mPCIE, supporting WiFi/Bluetooth/4G module expansion
1 * LVDS pin




I/O chip
IT8786E-I
1 * INVERT socket




BIOS
AMI  BIOS
1 * BKCL pin




power supply
DC/2PIN AT  12~24V Wide voltage power supply
4 * F_ USB 2.0 pin (expandable 8 * USB 2.0)




Cooling System
Equipped with fanless heat sink
6 * COM pin




Environment
Working temperature: 0-60 ℃; Storage: -20 ℃~75 ℃ 0%~95% relative humidity, non condensing
1 * GPIO pin




1 * SATA_ PWR socket




Size
145X100mm
1 * SATA socket




1 * AT_ IN socket
