ITX-J1900TF-10C2L
Detailed
Support Baytrail Processor J1900/1800
VGA/LVDS/HDMI
Built in Intel HD Graphics
Integrated ALC269 Channel
Built in 1*Mini PCIe/SIM for 4G/Wifi
Built in1*Msata1*SATA2.0 Support 1*USB3.0 8*USB 2.0
Support 10*COM（10*RS232 can support 1*485)
DC+4PIN ATX power supply
0755-83650405 | Specification generation | |||

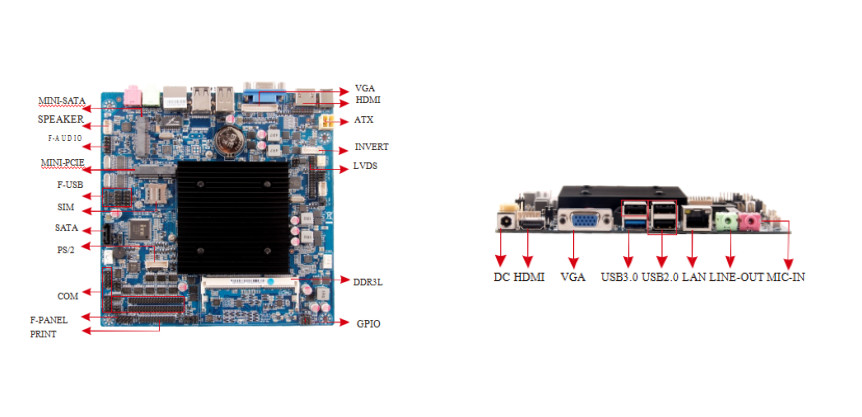

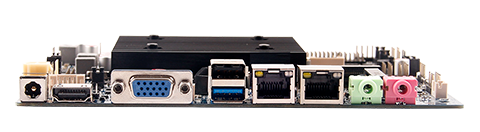

| Model | Support Baytrail Processor，J1900/J1800 | Rear I/O | 1*USB3.0 |
| Chipset | Intel J1900/J1800 | 3*USB2.0（1* LAN Co- Lay） | |
| GPU | Intel CPU Built in Graphics display | 1*VGA | |
| Display output | VGA、LVDS、HDMI | 1*HDMI | |
| Memory | 1*SO-DIMM，DDR3L 1333MHz ，8GB | 1*LAN | |
| Audio | Onboard Realtek ALC269 HD | 1*LINE-OUT | |
| Network | Onboard 1*Realtek RTL8111F gigabit LAN | 1*MIC-IN | |
| Storage | 1*SATA2.0 | 1*DC | |
| Expansion Slot | 2*MINI-PCIE(forM-SATA/WIFI ) 1*SIM | Internal I/O | 3*F-USB2.0 PIN (Could be extended 6*USB2.0) |
| USB | 1*USB3.0 8*USB2.0(5*USB2.0Need to be extended) | 10*COM PIN | |
| COM | 10*COM（6*RS232 Can support 1*485） | 1*VGA PIN | |
| BIOS | AMI BIOS | 1*HDMI PIN | |
| 1*JPS2 PIN | |||
| Power supply | DC + 4PIN ATX | 1*F_PANEL PIN | |
| 1*GPIO PIN | |||
| Cooling System | Fanless | 1*PRINT PIN | |
| 1*INVERT PIN | |||
| Operating environment | -10~60℃；0% ~ 95% Relative Humidity, Non-condensing | 1*LVDS PIN | |
| 1*ATX PIN | |||
| SIze | 170X170MM Thin MINI-ITX | 1* SPEAKER PIN | |
| 1* AUDIO PIN | |||
