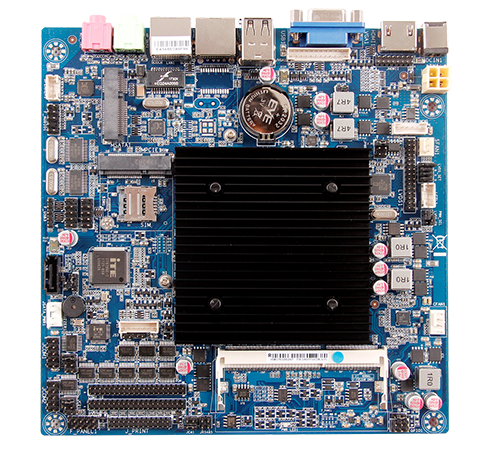

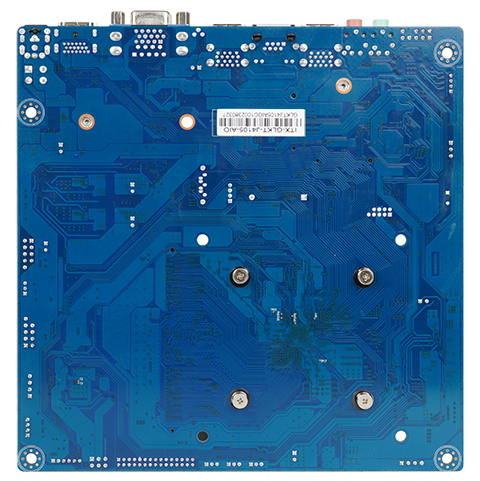

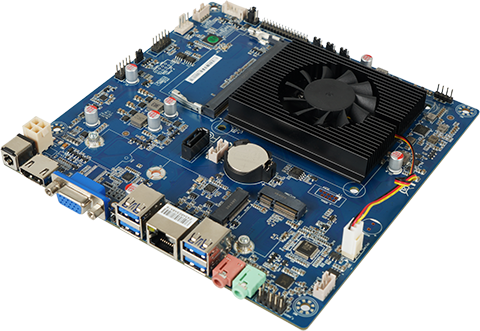

      ITX-GLKT-AIO


      Detailed






      Support for Intel Celeron ® Gemini Lake processor







Single channel SO-DIMM, DDR4 2400MHz, Max8GB







Supports LVDS+HDMI+VGA, three display synchronous







On board 1 * Realtek RTL8111H/8111G Gigabit Ethernet card







Supports 3 * USB2.0+4 * USB3.2 Gen1 (5Gbps)







Supports 1 * SATA, 1 * M.2 M Key (supports SATA SSD)







Supports 1 * M.2 E Key (supports WiFi+Bluetooth module)







DC 12V power supply, supporting power on and self start






































CPU
Intel Celeron ® Gemini Lake processor

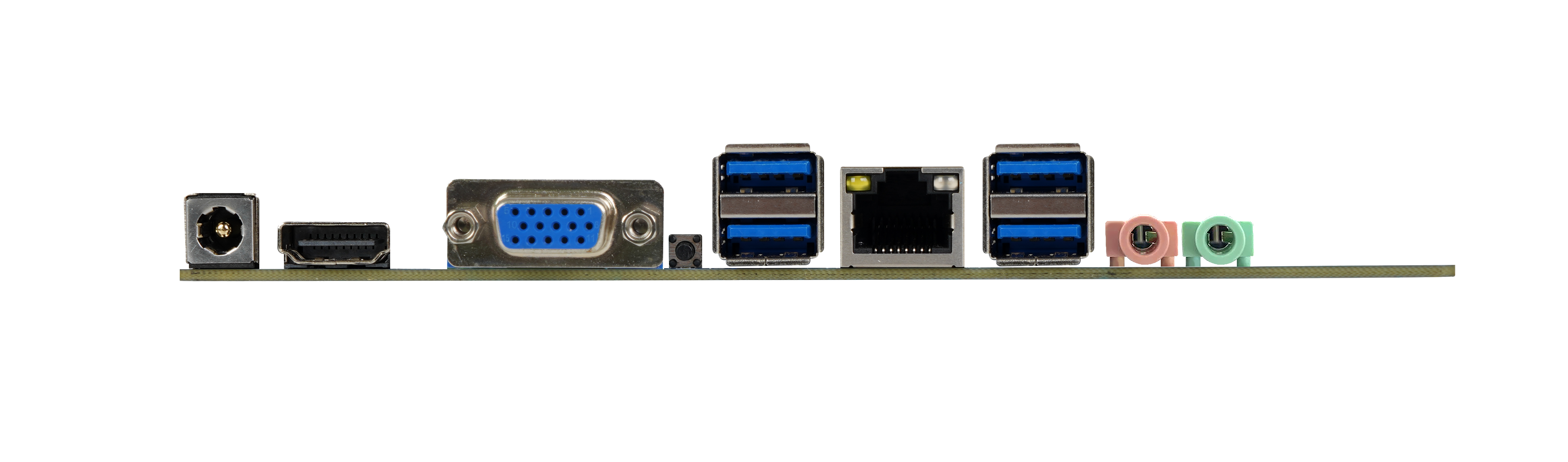

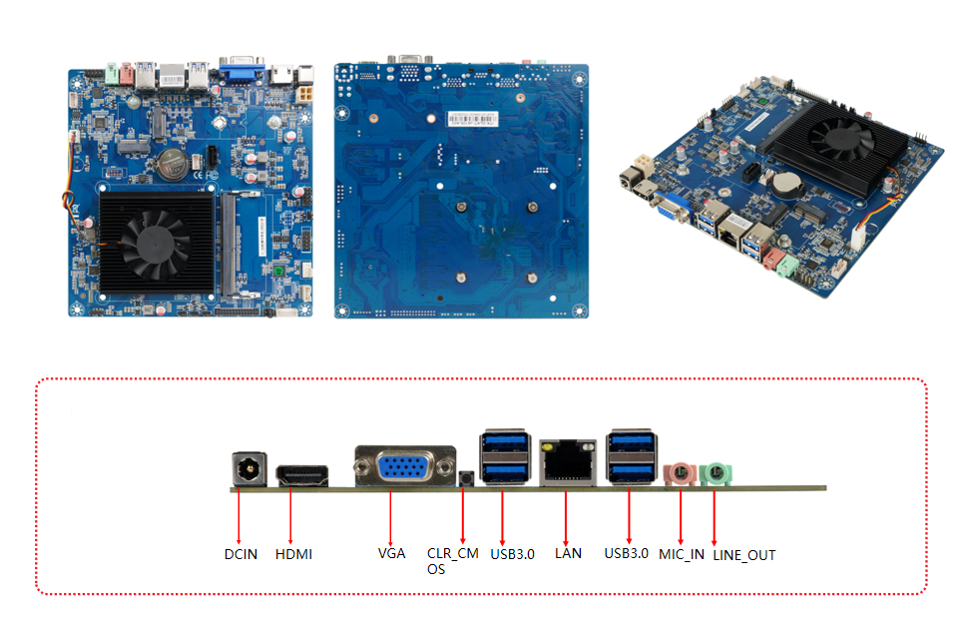

Post I/O interface
1 * DC interface




Chipset
Intel® SOC
1 * HDMI interface




Display chip
Intel ® Ultra High Definition Graphics Card 600
1 * VGA interface




Display output
LVDS+HDMI+VGA
1 * CLR_ CMOS buttons




Multi display support
Supports three display synchronous and asynchronous
4 * USB3.2 Gen1 interface (5Gbps)




USB
Support 3*USB2.0+4*USB3.2 Gen1(5Gbps)
1 * LAN1 interface




Memory
1*SO-DIMM  DDR4  2400MHz  Max8GB
1 * MIC-IN interface




sound effects
On board ALC269 audio decoding controller;
      Integrated power amplifier 2.2W@4 Ω MAX
1 * LINE OUT interface




Internal I/O
1 * F_ AUDIO pin




1 * SPEAKER pin




Network card
On board 1 * Realtek RLT8111H/8111G network card
1 * CPU_ FAN pin




storage
1*SATA, 1*M.2 M Key（SATA SSD）
1 * DEBUG pin




Expansion slot
Supports 1 * M.2 E Key (supports WiFi+Bluetooth module)
1 * SATA socket




I/O chip
IT8613E-I
1 * JSATA_ PWR pin




BIOS
AMI  BIOS
1 * LVDS pin




power supply
DC/4PINATX   12V  power supply
1 * INVERT socket




Cooling System
Equipped with CPU fan and heat sink
1 * BKCL socket




Environment
Working temperature: 0-60 ℃; Storage: -20 ℃~75 ℃
2 * F_ USB pin (expandable 3 * USB2.0)




0%~95% relative humidity, non condensing
1 * F_ PANEL pin




Size
170X170mm
1 * 4Pin ATX power socket
