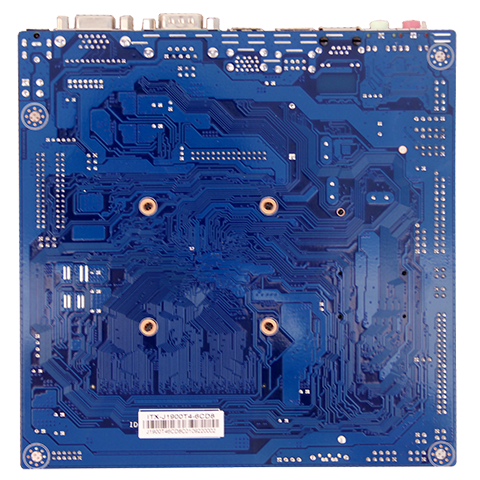

ITX-J1900T4-6CD8
Detailed
Product Parameters
Supports Bay Trail J1900/J1800 processors
Single channel SO-DIMM DDR3L/1333 Max 8GB
Supports multiple display options such as VGA, EDP1, EDP2, and LVDS
Supports 1 * SATA, 1 * mSATA
Supports 1 * USB3.0+8 * USB2.0
Supports 1 * Realtek RTL8106E 100 Gigabit Ethernet card
Supports 1 * Mini PCIe (for WIFI), 1 * SIM
Equipped with CPU heat sink
DC 12V power supply

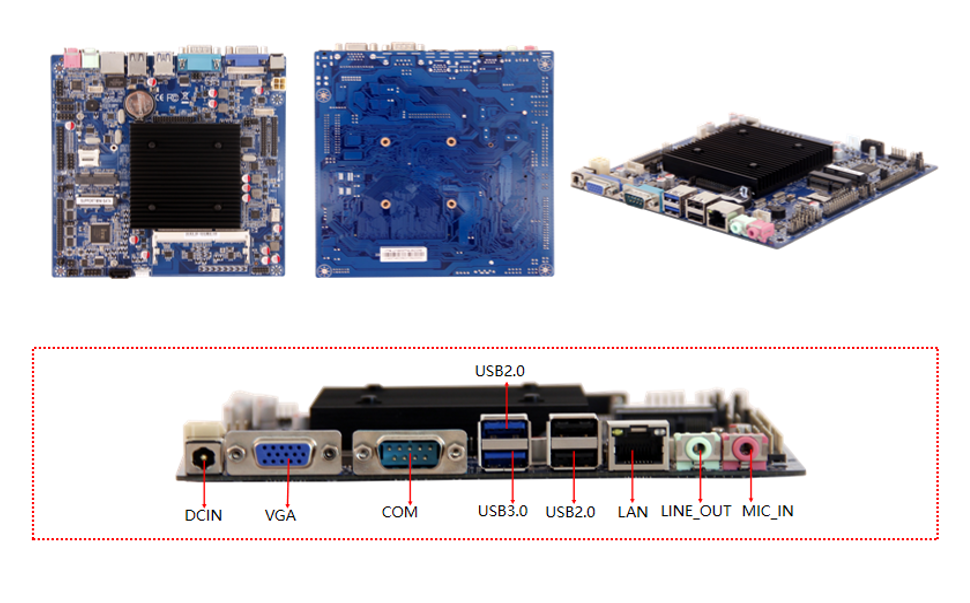

0755-83650405 | CPU | Bay Trail J1900/J1800 | Post I/O interface | 1 * LAN interface |
| Chipset | SOC | 1 * USB3.0 interface | |
| Display chip | Intel CPU built-in display core | 3 * USB2.0 interface | |
| Display output | VGA 、EDP1、EDP2、LVDS | 1 * VGA interface | |
| Multi display support | VGA+EDP1 /VGA+EDP2 /VGA+LVDS EDP1+EDP2 EDP1+LVDS | 1 * COM interface | |
| USB | 1*USB3.0+8*USB2.0 | 1 * MIC-IN interface | |
| Memory | 1*SO-DIMM DDR3L /1333 Max 8GB | 1 * LINE OUT interface | |
| sound effects | On board Realtek ALC662HD audio decoding controller | 1 * DC interface | |
| Network card | On board single network Realtek RTL8106E 100 Gigabit network card | Internal I/O | 1 * F-AUDIO pin |
| storage | 1*SATA 1*mSATA | 3 * F_ USB2.0 pin (expandable 5 * USB2.0) | |
| expansion slot | 1*Mini-PCIe (for WIFI) 1*SIM | 1 * PRINT pin | |
| I/O chip | ITE8786E-I | 1 * F_ PANEL pin 1 * COM pin | |
| BIOS | AMI BIOS | 1 * COM3_ 6-pin (4 * COM) | |
| power supply | DC 12V power supply | 1 * SATA pin | |
| 1 * SATA_ PWR pin | |||
| Cooling System | Equipped with CPU heat sink | 1 * GPIO pin | |
| 1 * LVDS pin 2 * EDP pin | |||
| Environment | -10~60 ℃; 0%~95% relative humidity, non condensing | 1 * INVERT pin | |
| 1 * JPS2 pin 1 * ATX pin | |||
| Size | 170X170MM | 1 * VGA pin | |
| 1 * SPEAKER pin |
| Model | CPU | COM232 | VGA | LVDS | EDP | Heat dissipation method |
| ITX-J1900T4-2CD8 | J1900 2.00~2.42GHZ | 2 | 1 | 1 | 1 | Profile |
| ITX-J1800T4-2CD8 | J1800 2.41~2.58GHZ | 2 | 1 | 1 | 1 | Profile |
| ITX-J1800T4-2CD8F | J1800 2.41~2.58GHZ | 2 | 1 | 1 | 1 | With fan |
| ITX-J1900T4-2CD8F | J1900 2.00~2.42GHZ | 2 | 1 | 1 | 1 | With fan |
| ITX-J1900T4-6CS8A | J1900 2.00~2.42GHZ | 6 | 1 | 1 | 1 | Profile |
| ITX-J1800T4-6CS8A | J1800 2.41~2.58GHZ | 6 | 1 | 1 | 1 | Profile |
| ITX-J1900T4-2CS8A | J1900 2.00~2.42GHZ | 2 | 1 | 1 | 1 | Profile |
| ITX-J1800T4-2CS8A | J1800 2.41~2.58GHZ | 2 | 1 | 1 | 1 | Profile |
| ITX-J1900T4-2C2E | J1900 2.00~2.42GHZ | 2 | 1 | / | 2 | Profile |
| ITX-J1800T4-2C2E | J1800 2.41~2.58GHZ | 2 | 1 | / | 2 | Profile |
| ITX-J1800T4-2C2EF | J1800 2.41~2.58GHZ | 2 | 1 | / | 2 | With fan |
| ITX-J1900T4-2C2EF | J1900 2.00~2.42GHZ | 2 | 1 | / | 2 | With fan |
| ITX-J1900T4-6C2E | J1900 2.00~2.42GHZ | 6 | 1 | / | 2 | Profile |
| ITX-J1800T4-6C2E | J1800 2.41~2.58GHZ | 6 | 1 | / | 2 | Profile |
