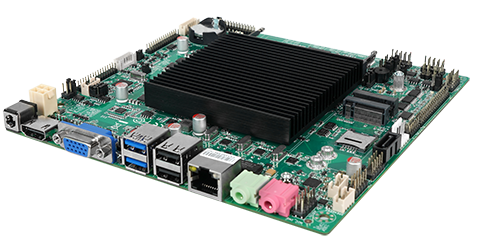

      ZO-EHLT-6C2L


      Detailed






      Support Intel® customizations Elkhart LakeJ6412/J6413







1*SO-DIMM DDR4 2933/2666MHz Max16GB







Support VGA、HDMI/EDP2、LVDS/EDP1, Support Triple Display







Support HDMI2.0 4K 60Hz Output







Onboard 1*RTL8106 1000M（Options: 1000M、2*LAN）







Support 2*USB3.2+8*USB2.0







Support 6*COM232，(Option: COM2 can Support 485)







Support 1*M.2 KeyB 1*SATA 1*M.2 KeyE







Onboard 1*MiniPCIe，Support Wifi6+Bluetooth /4G Module







DC12V Power Supply






































CPU
The first Intel® customizations Elkhart Lake

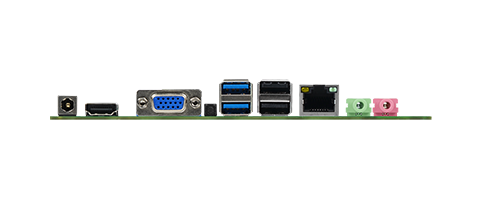

Rear I/O
1*DC（φ5.5&2.5mm DC Jack）
      1*HDMI
      1*VGA
      2*USB3.0
      1*CMOS
      2*USB2.0 （LAN2 or 2*USB2.0 ）
      1*HP_OUT
      1*MIC_IN




Chipset
Elkhart Lake




GPU
Intel UHD Graphics




Display
VGA、HDMI/EDP2、LVDS/EDP1




Muilt Display
VGA+HDMI/EDP2+LVDS/EDP1




Triple Display(synchrony/asynchrony)




USB
2*USB3.0+8*USB2.0




Memory
1*SO-DIMM DDR4 2933MHz Max16GB
Internal I/O
1*EDP2 PIN（This pin has no function by default,
      if you want to use it, we need to update the BIOS
      firmware）
      1*VGA_H PIN
      1*F-AUDIO PIN
      1*SPEAKER PIN
      3*F_USB2.0 PIN（can be extended to 7*USB2.0）
      1*SATA PIN
      1*SATA_PWR PIN
      1*JPS2 PIN
      1*J_PRINT PIN
      1*F_PANEL PIN
      2*COM232 PIN（ Support 1*RS485，COM1 and
      COM2 support DCD/5V/12V）
      1*COM_CON PIN（4*COM232）
      1*GPIO PIN
      1*LVDS PIN/1*EDP1 PIN
      1*INVERT PIN
      1*SIM Slot
      1*ATX PIN




Audio
Onboard audio decoder controller




Built-in Amplifier out3W@4Ω 1.7W@8Ω max




Network
Onboard 1*Realtek RTL8106 1000M




(Options: 2*LAN、Gigabit LAN）




Storage
1*M.2 KeyB ; 1*M.2 KeyE




Slot
1*Mini_PCIe( Support WIFI&Bluetooth/4G)




I/O Chip
ITE8786E-I/ITE8784E-I




BIOS
AMI BIOS




Power
DC/4PIN DC12V Power Supply




Cooling
FANLESS




Operating
Operating:0~60℃; Storage: -20~75℃ 0%~95%




Environment
Relative Humidity,Non-condensing




Size
170X170MM


















Model
DIMM
Expansion interface
storage
display interface
radiating
power supply




USB2.0
USB3.0
COM232
COM485
LAN
LPT
SPEAKE
M.2 A Key
SATA
M.2 B Key
VGA
LVDS
EDP
HDMI
DC




ZO-J6412T-6C1L
1
8
2
6
2
1*Gigabit
√
√
√
1
√
1
1
0
1
Profile
12V




ZO-J6412T-6C2L
1
6
2
6
2
2*Gigabit
√
√
√
1
√
1
1
0
1
Profile
12V




ZO-J6412T-6C1L1E
1
8
2
6
2
1*Gigabit
√
√
√
1
√
1
0
1
1
Profile
12V




ZO-J6412T-6C2L1E
1
6
2
6
2
2*Gigabit
√
√
√
1
√
1
0
1
1
Profile
12V




ZO-J6412T-6C1LLE
1
8
2
6
2
1*Gigabit
√
√
√
1
√
1
1
1
0
Profile
12V




ZO-J6412T-6C2LLE
1
6
2
6
2
2*Gigabit
√
√
√
1
√
1
1
1
0
Profile
12V




ZO-J6412T-6C1L2E
1
8
2
6
2
1*Gigabit
√
√
√
1
√
1
0
2
0
Profile
12V




ZO-J6412T-6C2L2E
1
6
2
6
2
2*Gigabit
√
√
√
1
√
1
0
2
0
Profile
12V




Note:
      1. Choose between EDP1 and LVDS, and choose between EDP2 and HDMI
      2. Except for the dual EDP model, the default EDP2/HDMI function for other models is HDMI. EDP2: This pin has no function by default. If needed, the bios firmware needs to be updated and the motherboard hardware needs to be changed.
      3. Even if the HDMI interface is not functional for all models, the interface materials will still be loaded by default. If there is a need to delete the HDMI interface, please provide it separately
