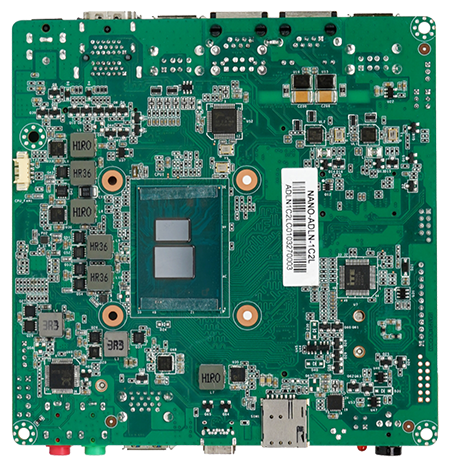

      NANO-ADLN-1C2L


      Detailed






      Support Intel®Alder Lake-N (N305/N100, etc) Processor







Support single channel SO-DIMM, DDR5 4800MHz, Max16GB







Support 2*HDMI+VGA display output, triple display (synchrony/asynchrony)







Onboard 2*RTL8111H Gigabit LAN card







Support 2*USB3.2 Gen2 (10Gbps), 1*Type-C, 4*USB2.0;







Support 1*MicroSD card slot, 1*SIM card slot; 1*COM RS232;







1*M.2 M Key, support SATA/NVME adaptive;







1*M.2 E Key, support Wifi/Bluetooth module expansion;







1*M.2 B Key,  support 5G module expansion;







DC12V  power supply






































CPU
Intel®Alder Lake-N (N305/N100, etc) Processor
Rear I/O
1*DC_IN




Chipset
Intel® SOC
2*HDMI




GPU
Intel® Ultra Core Graphics
2*USB2.0




Display Output
2*HDMI+VGA(optional)
1*LAN2 (Optional 2*USB2.0)




Multi Display
Triple display (synchrony/asynchrony)
1*LAN1




USB
2*USB3.2 Gen2 (10Gbps); 4*USB2.0
2*USB2.0




Memory
1*SO-DIMM DDR5 4800MHz Max16GB
Front I/O
1*PWRBTN




Audio
Onboard ALC897 audio decoding controller;
2*LED 1 x Hard Disk Indicator (Red)+1 x Power Light (Green)




Independent amplifier NS4251  3W@4Ω MAX
1*Rset&CLR_CMOS




Network
Onboard 2*Realtek RTL8111H Gigabit LAN card
1*SIM




Storage
1*M.2 M Key, support SATA/NVME adaptive
1*MicroSD




Expansion Slot
1*M.2 E Key, support Wifi6/Bluetooth module expansion；
1*Type-C




1*M.2 B Key,  support 5G module expansion
2*USB3.2 Gen2(10Gbps)




I/O Chip
IT8613E
1*Line-OUT； 1*MIC-IN




BIOS
AMI  BIOS
Internal I/O
1*F_AUDIO Pin




Power
DC 12V power supply
1*Speaker Pin




Cooling
Separate radiator required
1*COM Pin




Environment
Operating:0~60℃; Storage: -20~75℃
1*VGA Pin




0%~95% Relative Humidity,Non-condensing
1*JLED Pin




Size
120X120mm
1*TPM Pin   1*Fpanel Pin
