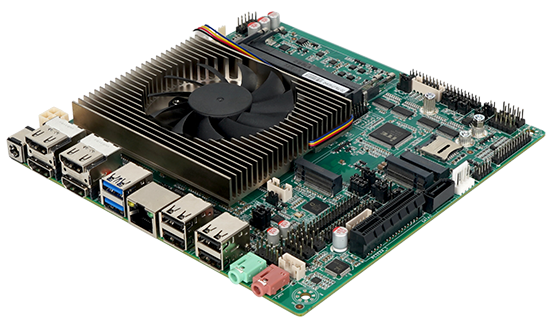

ZO-TGLUT-6C4HD
Detailed
Support Intel®Tiger Lake-UP3/H35 Processor (1135G7/11390H, etc)
Support dual channel SO-DIMM, DDR4 3200MHz, Max32GB
Support LVDS/EDP1+4*HDMI (HDMI2.0) display output, quad display (synchrony/asynchrony)
Onboard 1*Intel I210 Gigabit LAN card (optional dual LAN)
Support 2*USB3.2 Gen2 (10Gbps); 9*USB2.0
Support 6*COM RS232; COM1 support TTL, COM1support RS485/422 optional, COM3 support RS485 optional; COM1/2/3 support with power optional, through the resistor jump selection
1*M.2 M Key, support SATA/PCIEX4 signal VIA BOM; 1*SATA3.0 Port
1*M.2 E Key, support Wifi6/Bluetooth module expansion;
1*M.2 B Key, support 4G/5G module expansion; 1*SIM card slot
DC/4Pin ATX 12~19V wide voltage power supply
0755-83650405 | CPU | Intel®Tiger Lake-UP3/H35 Processor1135G7/1125G4/1165G7/11390H/11320H, etc | Rear I/O | 1*DC_IN 2*HDMI 2*HDMI 2*USB3.2 Gen2 (10Gbps) 1*LAN2 2*USB2.0 (optional 1*LAN1) 2*USB2.0 1*F_OUT 1*F_MIC |
| Chipset | Intel® SOC | ||
| Display | Intel® Iris® X? Graphics | ||
| Display Output | LVDS/EDP1+4*HDMI | ||
| Muilt Display | Quad display (synchrony/asynchrony) | ||
| USB | 2*USB3.2 Gen2 (10Gbps); 9*USB2.0 | ||
| Memory | 2*SO-DIMM DDR4 3200MHz Max32GB | ||
| Audio | Onboard ALC897 audio decoder controller; | ||
| Independent amplifier NS4251 3W@4Ω MAX | Internal I/O | 1*F_AUDIO pin 1*Speaker pin 3*F_USB (expandable 5*USB2.0) 1*LVDS pin 1*EDP pin 1*INVCN pin 1*PCIEX4 expansion slot 1*SATA pin 1*SATA_PWR pin 1*LPT pin 6*COM pin 1*TPM pin 1*F_PANEL pin 1*SYS_FAN pin 1*CPU_FAN pin 1*ATX socket |
|
| Network | Onboard 1*Intel I210 Gigabit LAN card (optional dual LAN) | ||
| Storage | 1*M.2 M Key, support PCIEX4/SATA signal selected by BOM;1*SATAⅢ(6.0 Gb/s) | ||
| Expansion Slot | 1*M.2 E Key, support Wifi6/Bluetooth module expansion; | ||
| 1*M.2 B Key, support 4G/5G module expansion; 1*SIM card slot | |||
| I/O Chip | IT8786E | ||
| BIOS | AMI BIOS | ||
| Power | DC/4Pin ATX 12~19V wide voltage power supply | ||
| Cooling | Self-contained fan cooler | ||
| Operating:0~60℃; Storage: -20~75℃ | |||
| 0%~95% Relative Humidity,Non-condensing | |||
| Size | 170X170mm |
