      ZO-SKYUTA-6CD8


      Detailed






      Support for Intel ®  Kaby Lake&Sky Lake Processor







Supports dual channel SO-DIMM, DDR4 2133MHz, Max32GB







Supports LVDS/EDP1+EDP2/HDMI+VGA display, three displays simultaneously and asynchronously







On board 2 * Realtek RTL8111H/8111G Gigabit Ethernet card (optional with single network)







Supports 4 * USB3.2 Gen1 (5Gbps), 4 * USB2.0







1 * M.2 M Key (PCIEX4/SATA signal adaptation); 1 * SATA3.0







1 * mPCIE, supporting WiFi/Bluetooth/4G module expansion; 1 * SIM







DC 12V power supply






































CPU
Intel® Kaby Lake & Sky Lake  Processor

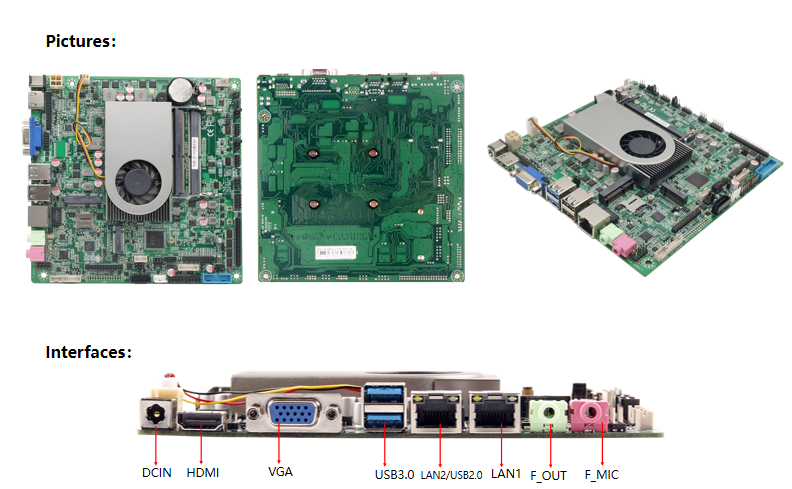

Post I/O interface
1 * DC_ IN port
      1 * HDMI port
      1 * VGA port
      1 * CLR_ CMOS buttons
      2 * USB3.2 Gen1 (5Gbps) port
      1 * LAN2 port (optional with 2 * USB2.0)
      1 * LAN1 port
      1 * HP_ OUT port
      1 * MIC_ IN port




Chipset
Intel® SOC




Display chip
Intel ®  Core graphics card




Display output
LVDS/EDP1+EDP2/HDMI+VGA




Multi display support
Three display synchronous asynchronous




USB
4*USB3.2 Gen1（5Gbps） ，4*USB2.0




Memory
2*SO-DIMM DDR4 2133MHz Max32GB




sound effects
On board HS-100B audio decoding controller
Internal I/O
1 * F_ AUDIO pin
      1*Speker pin
      1 * INVERT pin
      2 * EDP pin
      1 * LVDS pin
      1 * BKCL pin
      1 * SATA pin
      1 * SATA_ PWR pin
      2 * F_ USB2.0 pin (expandable 4 * USB2.0)
      1 * F_ USB3.0 pin (expandable 2 * USB3.0)
      1 * JPS2 pin
      1 * J_ PRINT pin
      6 * COM pin
      1 * F_ PANEL pin
      1 * AXT_ IN socket
      1 * SYS_ FAN socket
      1 * CPU_ FAN socket
      1 * JVGA pin




Independent power amplifier NS4251（ 3W@4 Ω MAX)




Network card
On board 2 * Realtek RTL8111H/8111G Gigabit Ethernet card (optional single network)




storage
1*M.2 M Key ;1*SATA3.0




expansion slot
1 * mPCIE, supporting WiFi/Bluetooth/4G module expansion;




I/O chip
IT8786E-I




BIOS
AMI  BIOS




power supply
DC / 4Pin ATX  12V  power supply




Cooling System
Equipped with fan and radiator




Environment
Working temperature: 0-60 ℃; Storage: -20 ℃~75 ℃




0%~95% relative humidity, non condensing




Size
170X170mm


















Model
CPU
DIMM
Expansion
Storage
Display ports
Cooling
Power
Size (mm)




USB2.0
USB3.0
COM232
RS
LAN
LPT
SPEAKE
MINI-PCIE
SIM
M.2
SATA
VGA
LVDS
EDP
HDMI
DC




485
KEYB/M




ZO-6360UTA-6C1E2L
I5-6360U
2
4
4
6
1
2*100M
√
√
√
√
√
1
1
/
2*
1
With FAN
12V
ITX




ZO-6200UTA-6C1E2L
I5-6200U
2
4
4
6
1
2*100M
√
√
√
√
√
1
1
/
2*
1
With FAN
12V
ITX




ZO-6360UTA-6C1E
I5-6360U
2
6
4
6
1
1*100M
√
√
√
√
√
1
1
/
2*
1
With FAN
12V
ITX




ZO-7167UTA-6C1E
I3-7167U
2
6
4
6
1
1*100M
√
√
√
√
√
1
1
/
2*
1
With FAN
12V
ITX




ZO-6360UTA-6C1L
I5-6360U
2
6
4
6
1
1*100M
√
√
√
√
√
1
1
1
1*
1
With FAN
12V
ITX




ZO-6157UTA-6C1L
I3-6157U
2
6
4
6
1
1*100M
√
√
√
√
√
1
1
1
1*
1
With FAN
12V
ITX




ZO-6567UTA-6C1L
I7-6567U
2
6
4
6
1
1*100M
√
√
√
√
√
1
1
1
1*
1
With FAN
12V
ITX




ZO-7167UTA-6C1L
I3-7167U
2
6
4
6
1
1*100M
√
√
√
√
√
1
1
1
1*
1
With FAN
12V
ITX




ZO-6006UTA-6C1L
I3-6006U
2
6
4
6
1
1*100M
√
√
√
√
√
1
1
1
1*
1
With FAN
12V
ITX




ZO-6200UTA-6C1L
I5-6200U
2
6
4
6
1
1*100M
√
√
√
√
√
1
1
1
1*
1
With FAN
12V
ITX




ZO-6300UTA-6C1L
I5-6300U
2
6
4
6
1
1*100M
√
√
√
√
√
1
1
1
1*
1
With FAN
12V
ITX




ZO-6157UTA-6C2L
I3-6157U
2
4
4
6
1
2*100M
√
√
√
√
√
1
1
1
1*
1
With FAN
12V
ITX




ZO-6567UTA-6C2L
I7-6567U
2
4
4
6
1
2*100M
√
√
√
√
√
1
1
1
1*
1
With FAN
12V
ITX




ZO-6300UTA-6C2L
I5-6300U
2
4
4
6
1
2*100M
√
√
√
√
√
1
1
1
1*
1
With FAN
12V
ITX




ZO-6360UTA-6C2L
I5-6360U
2
4
4
6
1
2*100M
√
√
√
√
√
1
1
1
1*
1
With FAN
12V
ITX




ZO-7167UTA-6C2L
I3-7167U
2
4
4
6
1
2*100M
√
√
√
√
√
1
1
1
1*
1
With FAN
12V
ITX






      1*and 2* note：：1*E


      DP2 PIN（Choose one of HDMI or EDP2 and use HDMI by default. EDP2 this pin has no function by default, if you need to use it, we need to update the bios firmware)
