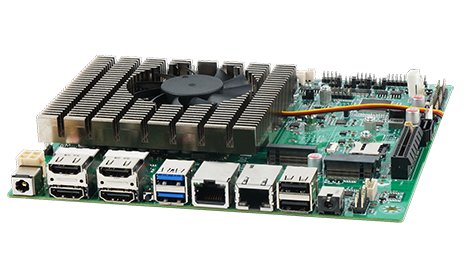

ZO-TGLUTA-2C2l
Detailed
Support Intel®11generation 10nm Tigerlake-U Series CPU
1*SO-DIMM DDR4 2666/3200MHz Max64GB
Support VGA、4*HDMI2.0b 、 LVDS/EDP, Support quadruple Display
Onboard Intel l225 2.5Gbps+Intel 1219 1000M
Support 2*USB3.2+6*USB2.0 Support2*COM232/RS485/RS422
Support 1*M.2 KeyB
(1*Expandmodule(Support WIFI+Bluetooth/4G)
1*SATA 1*M.2 KeyE(SupportCNVi WiFi6 and PCIe WiFi)
Onboard 1*MiniPCIe，Support Wifi6+Bluetooth /4G Module
DC12V Power Supply
0755-83650405 | Specification parameters | |||
| CPU | Intel®11generation 10nm Tigerlake-U Series | Rear I/O | 1*DC（φ5.5&2.5mm DC Jack） |
| Chipset | Intel®SOC | 4*HDMI 2.0b（4K60Hz) | |
| GPU | Intel Iris Xe Graphics (Integrated graphics Unit is determined by CPU) | 2*USB3.2 | |
| 2*USB2.0 | |||
| Display | VGA、4*HDMI、 EDP2、LVDS/EDP1 | 1*CMOS | |
| Muilt Display | VGA+HDMI/EDP2+LVDS/EDP1 | 1*HP_OUT | |
| Quadruple Display synchrony | 1*MIC_IN | ||
| USB | 2*USB3.2+6*USB2.0 | Internal I/O | 1*EDP2 PIN（This pin has no function by default, if you want to use it, we need to update the BIOS firmware） |
| Memory | 1*SO-DIMM DDR4 2666/3200Mhz Max16GB | 1*VGA_H PIN | |
| Audio | Onboard audio decoder controller | 1*F-AUDIO PIN | |
| Built-in Amplifier out3W@4Ω 1.7W@8Ω max | 1*SPEAKER PIN | ||
| Network |
Onboard 1*Realtek RTL8106 1000M |
3*F_USB2.0 PIN（can be extended to 7*USB2.0） | |
| (Options: 2*LAN、Gigabit LAN） | 1*SATA PIN | ||
| Storage | 1*M.2 | 1*SATA_PWR PIN | |
| KeyB (3245/52mm support | 1*JPS2 PIN | ||
| 5G/4G/3G) SIM card slot | 1*J_PRINT PIN | ||
| KeyE 2230mmsupport wifi6;Pcle×1 USB2.0 | 1*F_PANEL PIN | ||
| and CNVi for Wireless | 2*COM232 PIN（ Support 1*RS485，COM1 and COM2 support DCD/5V/12V） | ||
| Slot | 1*Mini_PCIe( Support WIFI6&Bluetooth/4G) | 1*COM_CON PIN（4*COM232） | |
| BIOS | AMI BIOS | 1*GPIO PIN | |
| Power | DC/4PIN DC12V Power Supply | 1*LVDS PIN/1*EDP1 PIN | |
| Cooling | FANLESS | 1*INVERT PIN | |
| Operating Environment | Operating:0~60℃; Storage: -20~75℃ 0%~95% Relative Humidity,Non-condensing | 1*SIM Slot | |
| size | 170X170MM | 1*ATX PIN | |
