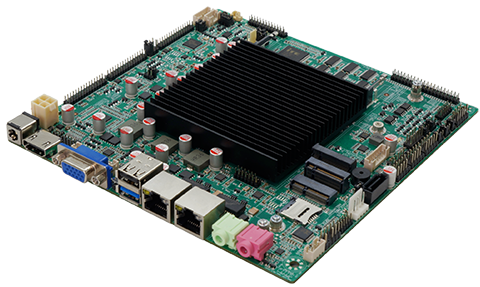

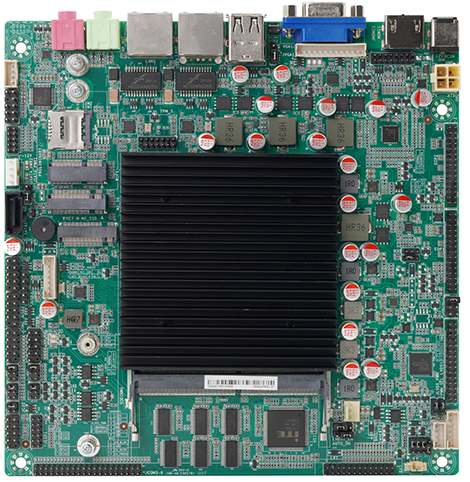

ZO-ADLNT-6C2L
Detailed
Support Intel®Alder Lake-N (N305/N300/N100) Processor
Support SO-DIMM，DDR4 3200MHz ，Max16GB
Support LVDS/EDP1+EDP2+HDMI+VGA
Onboard 1*Realtek RTL8111H/8111G）
Support 1*USB3.2 Gen2（10Gbps），8*USB2.0
1*M.2 M Key ，support PCIEX2/SATA3.0 ; 1*SATA3.0
1*M.2 E Key，support WiFi/BT (Discrete / CNVi)module；
1*M.2 B Key，support 4G/5G module
DC 12V power supply

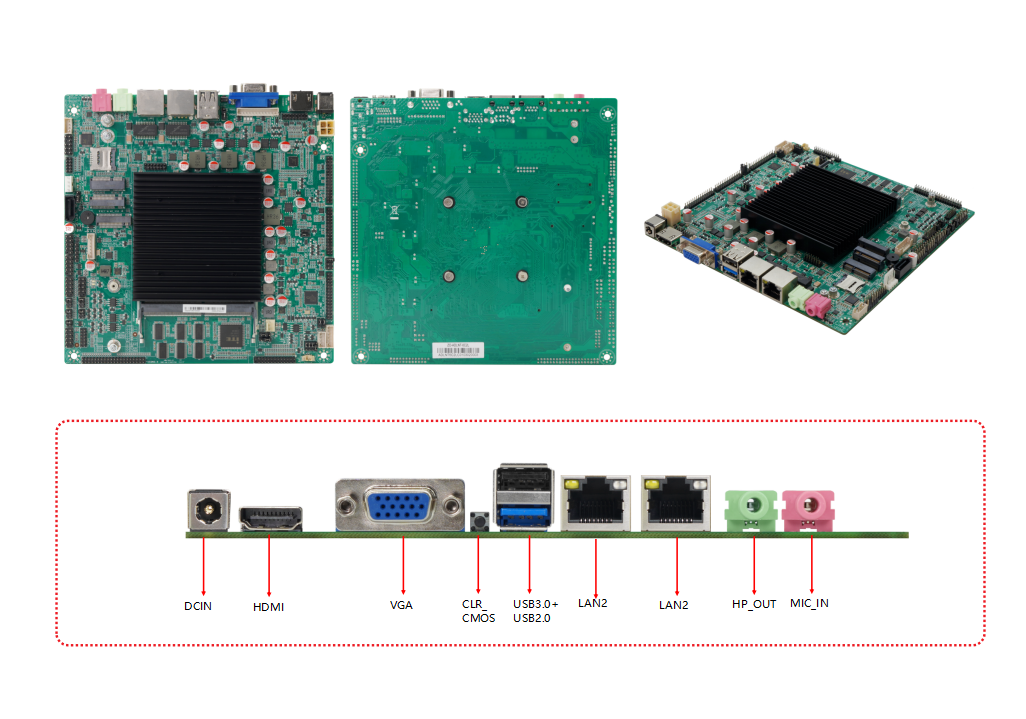

0755-83650405 | CPU | Intel®Alder Lake-N Processor (N305/N300) | Real I/O | 1*DC_IN 1*HDMI 1*VGA 1*CLR_CMOS 1*USB3.2 Gen2(10Gbps)+USB2.0 1*LAN2 1*LAN1 1*F_MIC 1*F_OUT |
| Chipset | Intel® SOC | ||
| GPU | Intel® HD Graphics | ||
| Display | LVDS/EDP1+EDP2+HDMI+VGA | ||
| Muilt | Triple synchrony/asynchrony | ||
| USB | 1*USB3.2 Gen2（10Gbps） ，8*USB2.0 | ||
| Ram | 1*SO-DIMM DDR4 3200MHz Max16GB | ||
| Audio | onboard ALC897 audio decoder controller | ||
| NS4251 3W@4Ω MAX | Internal I/O | 1*Speaker pin 1*F_AUDIO pin 1*GPIO pin 1*SATA_PWR pin 1*SATA pin 3*F_USB2.0（extended to5*USB2.0） 1*PS2 pin 6*COM pin 1*F_PANEL pin 1*ESPI pin 1*LPT pin 1*CPU_FAN pin 1*BKCL 1*INVERT pin 1*LVDS pin 2*EDP 1*HDMI pin 1*VGA pin 1*TPM pin 1*ATX_IN pin |
|
| Network | Onboard 1 * Realtek RTL8111H/8111G Gigabit Network Card | ||
| Storage | 1 * M.2 M Key, supporting PCIEX2/SATA 3.0 adaptation; | ||
| 1*SATA3.0（6.0Gb/s） Port | |||
| Expansion Solt | 1*M.2 E Key，Support Wifi+Bluetooth； | ||
| 1*M.2 B Key, Support 3G/4G/5G module | |||
| I/Ochip | IT8613E-I | ||
| BIOS | AMI BIOS | ||
| Power | DC 12V plwer supply | ||
| Cooling | Comes with CPU FAN | ||
| Operating | Operating:0~60℃; Storage: -20~75℃ | ||
| Environment | 0% ~ 95% Relative Humidity,Non-condensing | ||
| Size | 170X170mm |
