ZO-H610T-AIO
Detailed
Support Intel®12th/13th Alder Lake & Raptor Lake Processor
Support dual channel SO-DIMM, DDR4 3200MHz, Max64GB
Support LVDS/EDP+HDMI1+HDMI2+VGA/DP any triple displays synchronous/asynchronous
(LVDS/EDP: choose one, EDP support 4K EDP HD screen)(VGA can be optional DP)
Onboard 1*Intel Realtek 8111H(optional I219-LM) Gigabit LAN Card
Support 2*USB3.2Gen2(10Gbps); 2*USB3.2 Gen1（5Gbps)4*USB2.0;
1*M.2 M Key, support NGFF/NVME by BOM; 2*SATA3.0 Port
2*M.2 E Key, support WiFi6/Bluetooth/Encryption Module
DC 19V power supply
Supports system restore

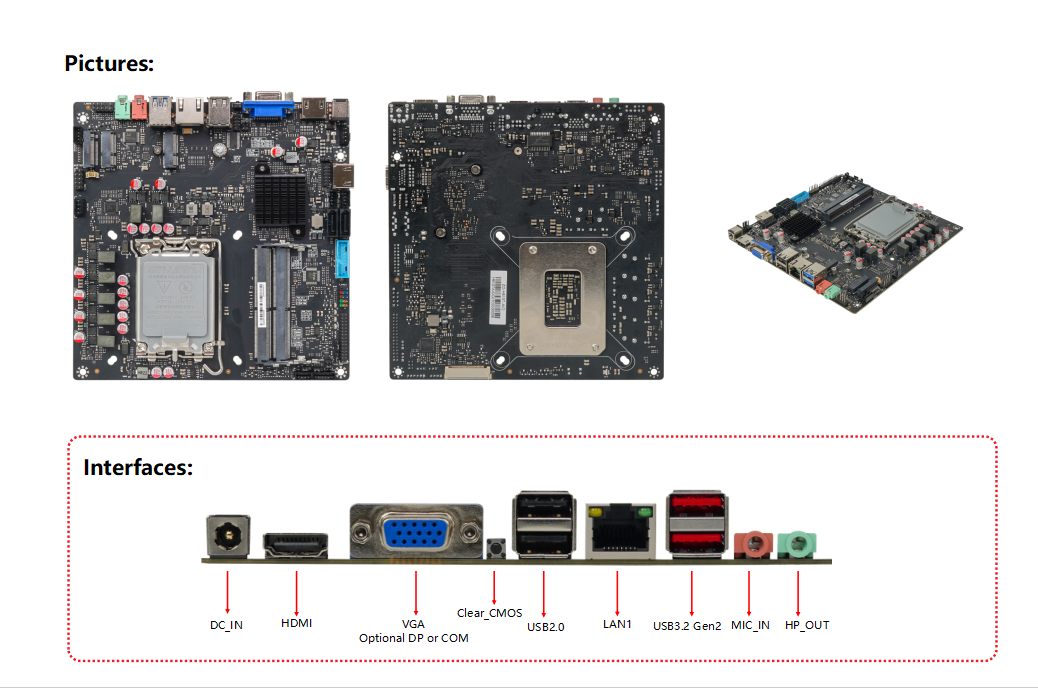

0755-83650405 | CPU | Intel®Alder Lake & Raptor Lake Processor | Rear I/O | 1*DC_IN 1*HDMI 1*VGA (Optional DP) 1*Clear_CMOS 2*USB2.0 1*LAN1 2*USB3.2 Gen2 1*MIC_IN 1*HP_OUT |
| Chipset | Intel® H610/B660, etc | ||
| GPU | Intel® Core Graphics | ||
| Display Output | LVDS/EDP+HDMI1+HDMI2+VGA/DP | ||
| Multi DIsplay | Any triple displays synchronous/asynchronous | ||
| USB | 2*USB3.2 Gen2(10Gbps); | ||
| 2*USB3.2 Gen1(5Gbps); 4*USB2.0 | |||
| Memory | 2*SO-DIMM DDR4 3200MHz Max64GB | ||
| Audio | Onboard ALC897 audio decoding controller； | Internal I/O | 1*HDMI interface 1*F_AUDIO pin 1*Speaker pin 1*F_USB1 pin (expandable 2*USB2.0) 1*CFAN pin 1*F_USB3_1 pin(expandable 2*USB3.0) 1*LVDS pin 1*INVERT pin 1*BKCL pin 1*SFAN pin 1*F_PANEL pin 1*COM pin 2*SATA socket 2*SATA_PWR pin 1*TPM pin |
| Separate amplifier NS4251 3W@4Ω MAX | |||
| Network | 1*Intel Realtek 8111H (Optional I219-LM) Gigabit LAN card | ||
| Storage | 1*M.2 M Key, support NGFF/NVME by BOM | ||
| 2*SATA3.0 Port | |||
| Expansion Slot | 2*M.2 E Key, support PCIEX1/USN signal module expansion | ||
| I/O Chip | IT8613E | ||
| BIOS | AMI BIOS | ||
| Power | DC 19V Power supply | ||
| Cooling | Additional standard 115X/17XX cooler required | ||
| Operation Environment | Operation: 0~60℃; Storage: -20℃~75℃ | ||
| 0% ~ 95% Relative Humidity, Non-condensing | |||
| Size | 170X170mm |
