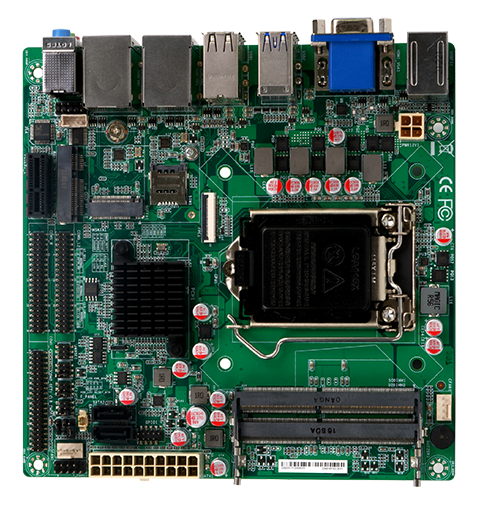

      ZO-H510P-12C


      Detailed






      Supports Intel Rocket lake-S Desktop CPU







Dual channel SO-DIMM, DDR4 2666/3200MHz, Max128GB







Supports VGA/HDMI/EDP display output, dual display asynchronous/synchronous







On board 2 * Realtek RTL8111H Gigabit Ethernet card







Supports 4 * USB 3.0; 10 * USB2.0;







12 * COM, COM2 supports RS232/485/422 jump cap selection







Supports 2 * SATA 3.0, 1 * mSATA







1 * M.2 Key E, supporting WIFI, 3G/4G modules







Support for PCIe x1 (Gen 3) expansion interface







Supports PS/2 functionality







4PIN ATX/20PIN ATX power supply






































CPU
Support Intel Rocket lake-S Desktop CPU

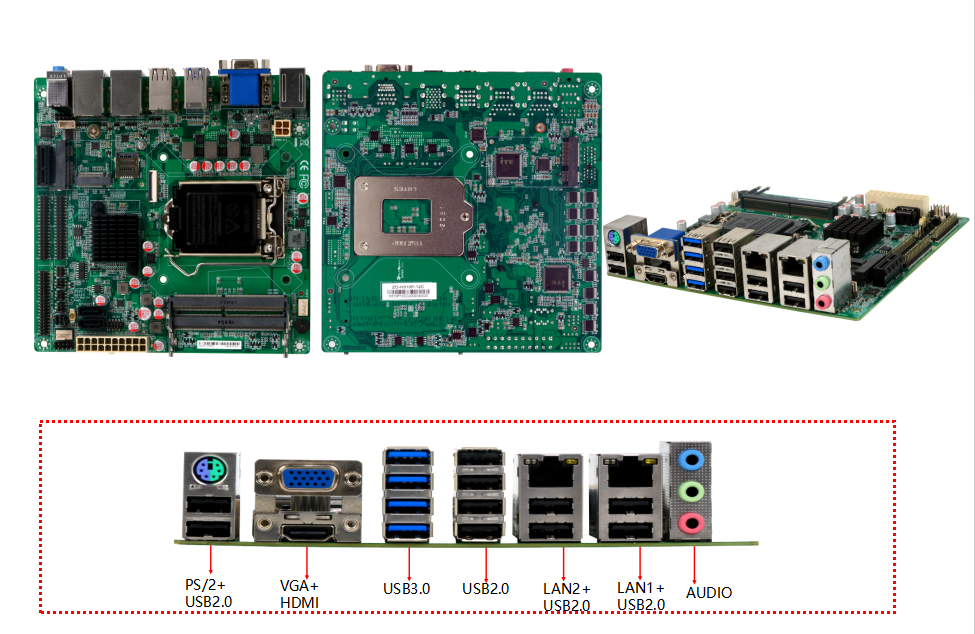

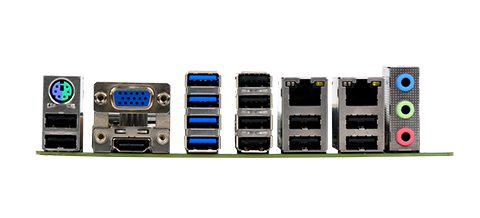

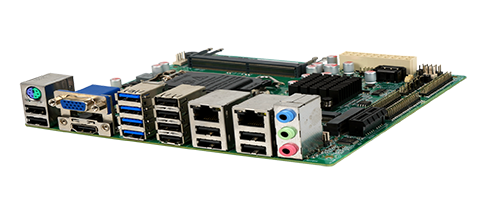

Post I/O interface
1 * PS/2+2 * USB2.0 port
      1 * VGA+HDMI port
      4 * USB3.0 port
      4 * USB2.0 port
      1 * LAN+2 * USB2.0 port
      1 * LAN+2 * USB2.0 port
      1 * AUDIO port




Chipset
Intel® H510




Display chip
Intel® HD Graphics  Nuclear display




Display output
VGA 、HDMI、EDP




Multi display support
VGA+HDMI/HDMI+EDP/VGA+EDP




Dual display asynchronous/synchronous




USB
4*USB3.0 ；10*USB2.0




Memory
2*SO-DIMM，DDR4 2666MHz ，Max.32GB
Internal I/O
1 * F-AUDIO pin
      1 * SPEAKER pin
      1 * PCIEX1 expansion slot
      3 * COM_ CONN pin (12 * COM232, COM2 supports RS232/485/422 jump cap selection)
      1 * F-PANEL pin
      2 * FAN pin
      2 * SATA interface
      1 * GPIO pin
      1 * 12PIN ATX pin
      1 * 4PIN ATX pin




sound effects
On board Realtek ALC897HD audio decoding controller




NS4258 built-in power amplifier output 3.2W@4 Ω; 5.2W@2 Ω max




Network card
2 * Realtek RTL8111H Gigabit Network Card




storage
2*SATA3.0 ；1*mSATA（SATA SSD）




expansion slot
1 * M.2 Key E, supporting WIFI, 3G/4G modules




I/O chip
2*ITE8786E-I




BIOS
AMI  BIOS




power supply
DC / 4PIN ATX 12V power supply




Cooling System
Requires self equipped 115X CPU heat sink




Environment
Working temperature: 0-60 ℃; Storage: -20 ℃~75 ℃




0%~95% relative humidity, non condensing




Size
170X170mm
