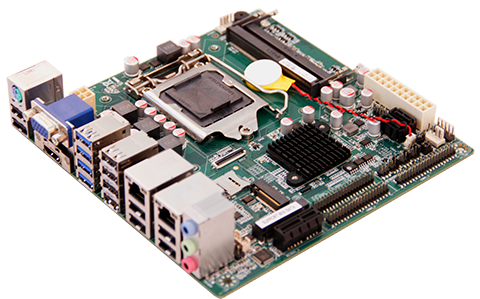

ZO-H110PA-12C
Detailed
Support Intel ® 7th & 6th Gen Core™ i Processor (LGA1151) TDP65W
Intel® H110 Chipset
Two 260-pin SO-DIMM up to 32GB DDR4 2400/2133 MHz SDRAM
Support VGA/HDMI/eDP display output，(Support synchronous/asynchronous display
Support 4 x USB 3.0, 12 x USB 2.0,
Support 2 x SATAIII，1 x mSATA
11 x RS232, 1 x RS232/422/485
Support M.2 WIFI and 3G/4G module at the same time
Line-in, Mic-in, Line-out
Support for PCIe x1 (Gen 3) expansion interface

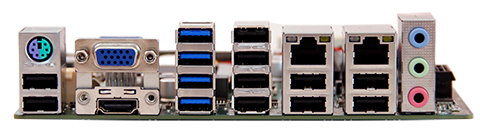

0755-83650405 | CPU | Support Intel LGA1151 series | Rear I/O | 2*LAN |
| Chipset | H110 | 4*USB3.0 | |
| GPU | INTEL Built in Display Core | 10*USB2.0 | |
| Display | VGA 、HDMI、EDP | 1*VGA | |
| Muilt Display |
VGA+HDMI/HDMI+EDP/VGA+EDP | 1*HDMI | |
| USB | synchronous/asynchronous display | 1*AUDIO | |
| 4*USB3.0+10*USB2.0 | 1*PS2 | ||
| RAM | 2*SO-DIMM DDR4 2133/2400MHz 32GB | Internal I/O | 1*F-AUDIO PIN |
| Audio | Onboard Realtek ALC662H +NS4258 Chip Output power： 3.2W× 2(4? Load), 5.2W × 2(2? Load) |
1*SPEAKER PIN | |
| 3*COM_CONN PIN（12*COM232，COM2 RS422/485 optional） | |||
| Network | Onboard 2*Realtek RTL8111H Gigabit LAN | 1*F_PANEL PIN | |
| Storage | 2*SATA3.0 1*M-SATA （Sata SSD） | 2*SATA | |
| WIFI | 1*MINIPCIE (for 3G/4G) | 1*GPIO1 PIN | |
| 1*M.2 NGFFA （For WIFI+Bluetooth） | 1*SYS-FAN PIN | ||
| I/O Chip | 2*ITE8786E-I | 1*CPU-FAN PIN | |
| BIOS | AMI BIOS | 1*20PIN ATX PIN | |
| Power | 4PIN ATX /20PIN ATX | 1*4PIN ATX PIN | |
| Cooling | Need Self-equipped 115X CPU and FAN | 1*SIM Expansion slot | |
| Operating | -10~60℃; 0% ~ 95% relative humidity，Non-condensing | 1*FPC1（EDP） | |
| Size | 170X170MM | 1*PCIe X1 Expansion slot |
