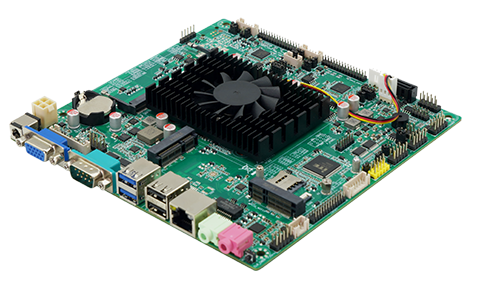

      ZO-EHLT-4C2L-GPOS


      Detailed






      Support for Intel ®  Elkhart Lake J6412/J6413 processor







Supports single channel SO-DIMM, DDR4 3200MHz, Max32GB







Supports LVDS1/EDP1+LVDS2/EDP2+VGA display, three displays simultaneously and asynchronously







On board 1 * Realtek RTL8111H/8111G Gigabit Ethernet card (optional dual network)







Supports 2 * USB3.2 Gen2 (10Gbps), 7 * USB2.0







1 * mSATA; 1 * SATA







1 * mPCIE, supporting WiFi/Bluetooth module expansion; 1 * SIM







DC 12V power supply






































CPU
Intel®Elkhart Lake J6412/J6413 Processor

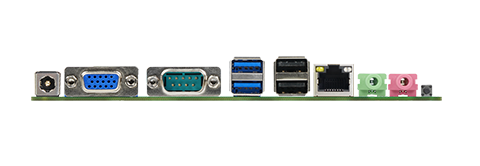

Post I/O interface
1 * DC_ IN port
      1 * VGA port (optional with 1 * COM4)
      1 * COM1 port
      2 * USB3.2 Gen2 (10Gbps) port
      2 * USB2.0 (optional with 1 * LAN2)
      1 * LAN1 port
      1 * HP_ OUT port
      1 * MIC_ IN port
      1 * CLR_ CMOS buttons




Chipset
Intel® SOC




Display chip
Intel® UHD Graphics




Display output
LVDS1/EDP1+LVDS2/EDP2+VGA




Multi display support
Three display synchronous asynchronous




USB
2*USB3.2 Gen1（10Gbps） ，7*USB2.0




Memory
1*SO-DIMM DDR4 3200MHz Max32GB




sound effects
On board ALC269 audio decoding controller;




Independent power amplifier NS4251 3W@4 Ω MAX




Network card
On board 1 * Realtek RTL8111H/8111G Gigabit Ethernet card (optional dual network)
Internal I/O
1 * F_ AUDIO pin
      1 * Speaker pin
      1 * J_ PRINT pin
      1 * JPS2 pin
      3 * J_ USB2.0 pin (expandable 5 * USB2.0)
      3 * COM pin
      1 * GPIO pin
      1 * F_ PANEL pin
      1 * SATA pin
      1 * SATA_ PWR pin
      1 * C_ FAN pin
      2 * LVDS_ EDP pin
      2 * INVERT socket
      1 * LCTL socket
      1 * VGA pin
      1 * ATX_ IN socket




storage
1*mSATA；1*SATA




expansion slot
1 * mPCIE, supporting WiFi/Bluetooth module expansion; 1 * SIM




I/O chip
IT8786E-I




BIOS
AMI  BIOS




power supply
DC/4PIN ATX  12V  power supply




Cooling System
Equipped with fan and radiator




Environment
Working temperature: 0-60 ℃; Storage: -20 ℃~75 ℃




0%~95% relative humidity, non condensing




Size
170X170mm
