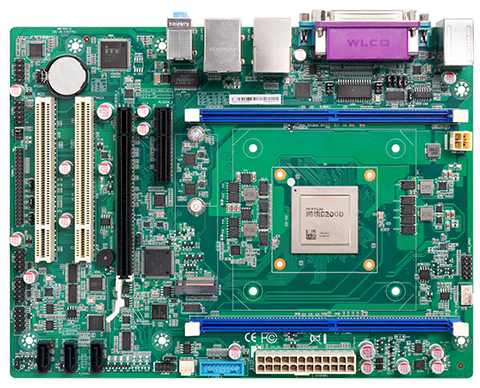

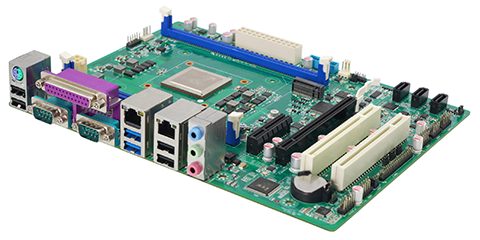

      ZO-D2000P-7C2L


      Detailed






      Product Parameters







Support domestic Phytium  Tengrui D2000 CPU; Quad core 8 threads; Main frequency 2.0-2.6GHz







Supports dual channel SO-DIMM, DDR4 2666MHz, Max32GB







Supports independent graphics card display output







Onboard 2 * Motorcomm YT8521SC-CA Gigabit Network Card







Supports 4 * USB3.2 Gen1 (5Gbps) and 10 * USB2.0; 2 * COM port; 5 * COM pin; COM1 supports TTL/RS232; (Among them, COM4-7, JUSB2, JUSB3, F-USB3 functions and 2 * PCI functions are optional)







1 * M.2 M Key, supporting PCIEX4/SATA3.0 signal adaptation; 3 * SATA3.0







ATX 24Pin ATX+4Pin power supply






































CPU
Support for domestic  Phytium Tengrui D2000 processor

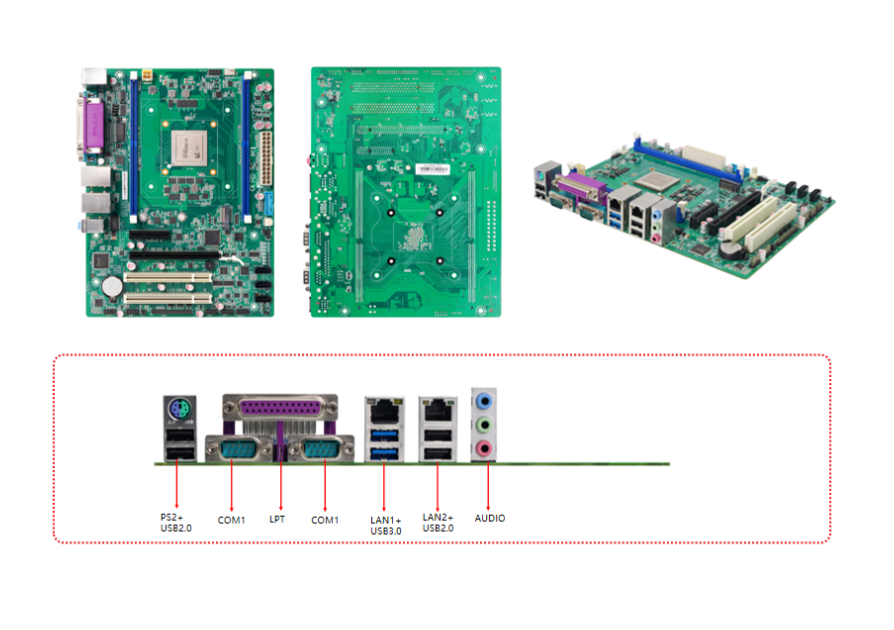

Post I/O interface
1 * PS2+2 * USB2.0 three-layer socket port
      2 * COM+1 * LPT port
      1 * LAN1+2 * USB3.0 three-layer socket port
      1 * LAN1+2 * USB2.0 three-layer socket port
      1 * AUDIO three-layer socket port




Chipset
SOC




Display chip
Independent graphics card display




Display output
/




Multi display support
Three display synchronous asynchronous




USB
4*USB3.2 Gen1（5Gbps） ，10*USB2.0




Memory
2*SO-DIMM DDR4 2666MHz Max32GB
Internal I/O
1 * F_ AUDIO pin
      3 * F_ USB2.0 (Scalable 6 * USB2.0)
      5 * COM pin
      1 * F_ PANEL pin
      3 * SATA pin
      1 * SYS_ FAN pin
      1 * F_ USB3 pin (expandable 2 * USB3.0)
      1 * CFAN pin
      1 * JATG_ CPU pin
      2 * PCI socket
      1 * PCIEX16 socket
      1 * PCIEX4 socket




sound effects
On board ALC897 audio decoding controller




Network card
Onboard 2 * Motorcomm YT8521SC-CA Gigabit Network Card




storage
1 * M.2 M Key, supporting PCIEX4/SATA signal adaptation;




3 * SATA3.0




expansion slot
/




I/O chip
IT8786E-I




BIOS
AMI  BIOS




power supply
ATX 24Pin+4Pin   power supply




Cooling System
Require self equipped standard 115X hole position radiator




Environment
Working temperature: 0-60 ℃; Storage: -20 ℃~75 ℃




0%~95% relative humidity, non condensing




Size
244X185mm
