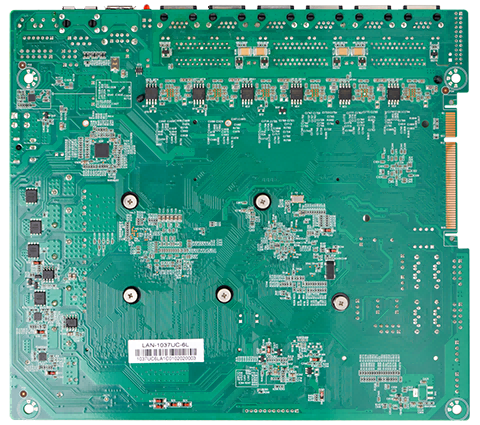

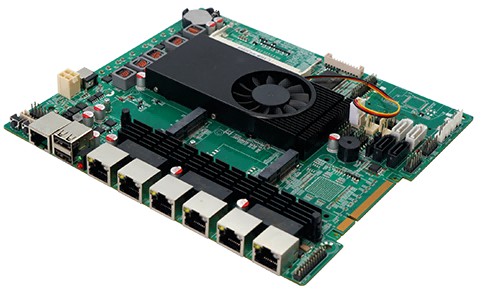

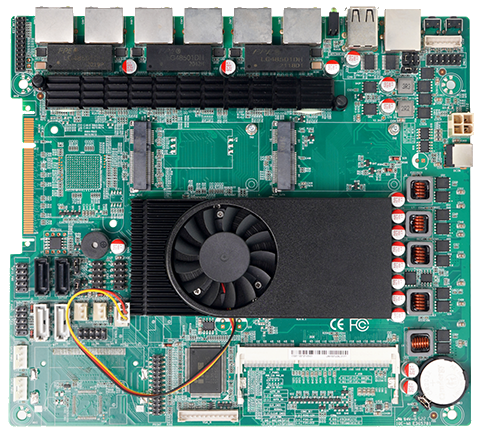

      LAN-1037UC-6LC


      Detailed






      Product Parameters







Support for Intel ®  Ivy Bridge i3-3217U/i5-3317U Processor







Supports single channel SO-DIMM, DDR3 1600MHz, Max8GB







Supports VGA pin display output







On board 6 * Intel I225-V network card (transmission rate 2.5Gb)







Supports 6 * USB2.0







1 * mSATA; 4 * SATA Port







1 * mPCIE, supporting WiFi/Bluetooth module expansion;







DC 12V power supply






































CPU
Intel®Ivy Bridge i3-3217U/i5-3317U Processor
Post I/O interface
1 * DC_ IN port




Chipset
Intel® SOC
1 * RST_ BT button




Display chip
Intel ®  Core graphics card 600
1 * PWR_ BT button




Display output
VGA display output
1 * RJ45_ COM Port




Multi display support
/
2 * USB2.0 port




USB
6*USB2.0
1 * LED status indicator light




Memory
1*SO-DIMM DDR3 1600MHz Max8GB
6 * LAN port




sound effects
/
Internal I/O
1 * LAN_ LED pin




Network card
On board 6 * Intel I225-V network card (transmission rate 2.5Gb)
1 * PCIE8X slot




storage
1*mSATA,4*SATA
2 * F_ USB2.0 pin (expandable 4 * USB2.0)




expansion slot
1 * mPCIE, supporting WiFi/Bluetooth/4G module expansion;
4 * SATA socket




I/O chip
IT8712F-I
2 * SATA_ PWR pin




BIOS
AMI  BIOS
1 * GPIO pin




power supply
DC/4PIN ATX  12V power supply
1 * F_ PANEL pin




Cooling System
Equipped with fan and radiator
2 * SYS_ FAN pin




1 * CPU_ FAN pin




Environment
Working temperature: 0-60 ℃; Storage: -20 ℃~75 ℃
      0%~95% relative humidity, non condensing
1 * PRINT pin




1 * VGA_ H pin




1 * COM pin




Size
200X180mm
1 * JPS2 pin




1 * ATX_ IN socket
