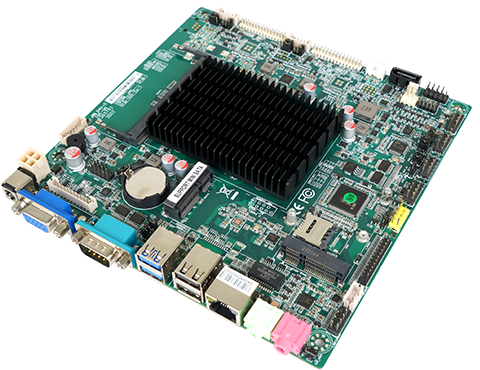

ZO-GLKT-4C2L-GPOS

Detailed

Support for Intel Gemini lake J4125/J4105/N4000 Processor

Single channel SO-DIMM, DDR4 2133/2400MHz, Max8GB

Supports LVDS1/EDP1+LVDS2/EDP2+VGA, three display synchronous

Supports 1 * Realtek RTL8111H/8111G Gigabit Ethernet card (optional dual network)

Supports 2 * USB3.0+8 * USB2.0

Supports 4 * COM232 (COM2 supports 1 RS485 option)

Supports 1 * SATA3.0 and 1 * mSATA

Supports 1 * Mini PCIE slot (WIFI/Bluetooth module); 1 * SIM card slot

Support power on auto start, PXE start, wake-on-LAN

Support for one RJ11 cash box with optional options

0755-83650405 Online inquiry

Specification parameters

Interfaces

Ordering Information

Data download

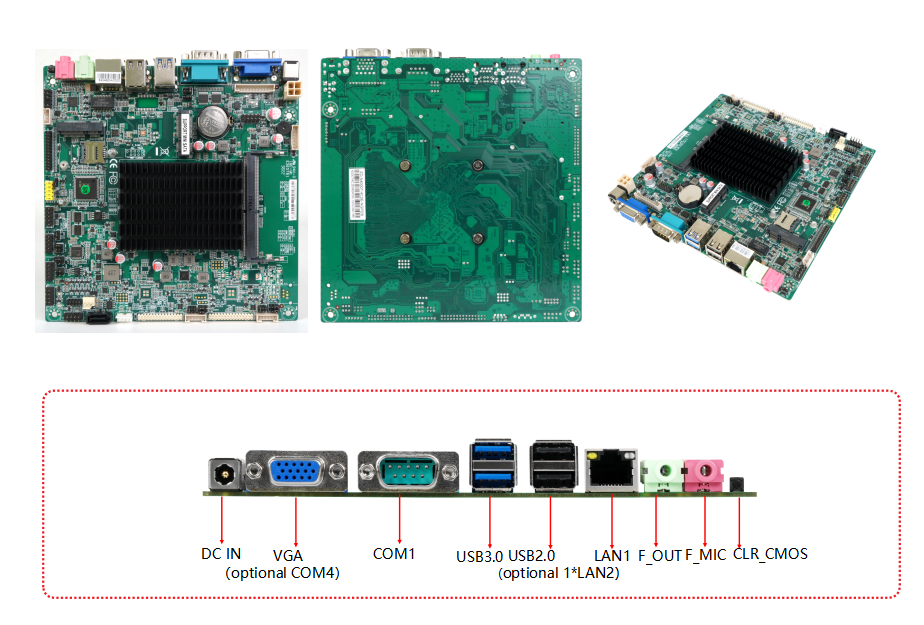

CPU	Support for Intel ® Gemini lake J4125/J4105/N4000 Processor	Post I/O interface	1 * DC port 1 * VGA port (optional COM4) 1 * COM1 port 2 * USB3.0 port 2 * USB 2.0 ports (optional 1 * LAN2) 1 * LAN1 port 1 * MIC-IN port 1 * LINE OUT port
Chipset	Intel® SOC
Display chip	Intel® HD Graphics 600
Display output	LVDS1(Main display) +LVDS2+VGA
	LVDS1(Main display)EDP2+VGA
	EDP1(Main display)EDP2+VGA
	EDP1(Main display))+LVDS2+VGA
Multi display support	Three display synchronous asynchronous
USB	8USB2.0+2USB3.0	Internal I/O	1 * F-AUDIO pin 1 * SPEAKER pin 1 * PRINT pin 5 * JUSB2.0 pin (expandable 6 * USB2.0) 2 * COM pin (COM2 supports RS232/485) 1 * F-PANEL pin 1 * GPIO pin 1 * FAN pin 1 * SATA_ Port 1 * SATA_ PWR 1 * LVDS1/EDP1 pin (optional function) 1 * LVDS2/EDP2 pin (optional function) 1 * INVERT1 pin 1 * INVERT2 pin 1 * VGA pin 1 * 4Pin ATX power socket
Memory	1*SO-DIMM DDR4 2133/2400MHz Max8GB
sound effects	On board Realtek ALC269 audio decoding controller;
sound effects	Independent power amplifier NS4251 (3W4 Ω MAX)
Network card	On board 1 * Realtek 8111H/8111G Gigabit Ethernet card (optional dual network)
storage	1SATA, 1mSATA
expansion slot	1*Mini-PCIe(for WIFI / Bluetooth)
I/O chip	ITE8786E-I
BIOS	AMI BIOS
power supply	DC/4PIN 12V power supply
Cooling System	Standard fanless heat sink
Environment	Working temperature: 0-60 ℃; Storage: -20 ℃~75 ℃
Environment	0%~95% relative humidity, non condensing
Size	Mini-ITX 170*170mm

Motherboard model	CPU	CPU parameters	Graphic parameters	RJ11
ZO-J4125T-4CLE-NGPOS	J4125	Four wire and four core2.00~2.70GHz	LVDS1（Main display）+EDP2+VGA	×
ZO-J4125T-4CLE-GPOS	J4125	Four wire and four core2.00~2.70GHz	LVDS1（Main display）+EDP2+VGA	√
ZO-J4125T-4CLL-NGPOS	J4125	Four wire and four core2.00~2.70GHz	LVDS1（Main display）+LVDS2+VGA	×
ZO-J4125T-4CLL-GPOS	J4125	Four wire and four core2.00~2.70GHz	LVDS1（Main display）+LVDS2+VGA	√
ZO-J4125T-4CEL-NGPOS	J4125	Four wire and four core2.00~2.70GHz	EDP1（Main display）+LVDS2+VGA	×
ZO-J4125T-4CEL-GPOS	J4125	Four wire and four core2.00~2.70GHz	EDP1（Main display）+LVDS2+VGA	√
ZO-J4125T-4C2E-NGPOS	J4125	Four wire and four core2.00~2.70GHz	EDP1（Main display）+EDP2+VGA	×
ZO-J4125T-4C2E-GPOS	J4125	Four wire and four core2.00~2.70GHz	EDP1（Main display）+EDP2+VGA	√
