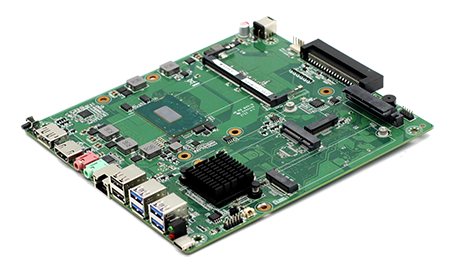

OPS-HM570-CR1
Detailed
The product meets the standard OPS-C design specifications
Intel ® Core Tiger Lake-H series processor
Supports VGA+HDMI1.4+DP1.2+HDMI2.0 display output
Supports HDMI2.0 with maximum support 4K@60FPS OPS interface
Supports 4 * USB3.1+2 * USB2.0+1 * Type-C USB3.1
Supports DDR4 dual channel memory 3200MHz Max64G
Support Key M NGFF M.2 interface, expandable SSD module
Support Key A NGFF M.2 interface, expandable WiFi+Bluetooth
Supports Mini PCIe interface and expandable video capture module
Support hardware one click system backup and restore
Unique design, supporting OPS interface for live and undamaged plugging and unplugging
Enhanced USB signal driving capability, compatible with various touch boxes and other devices

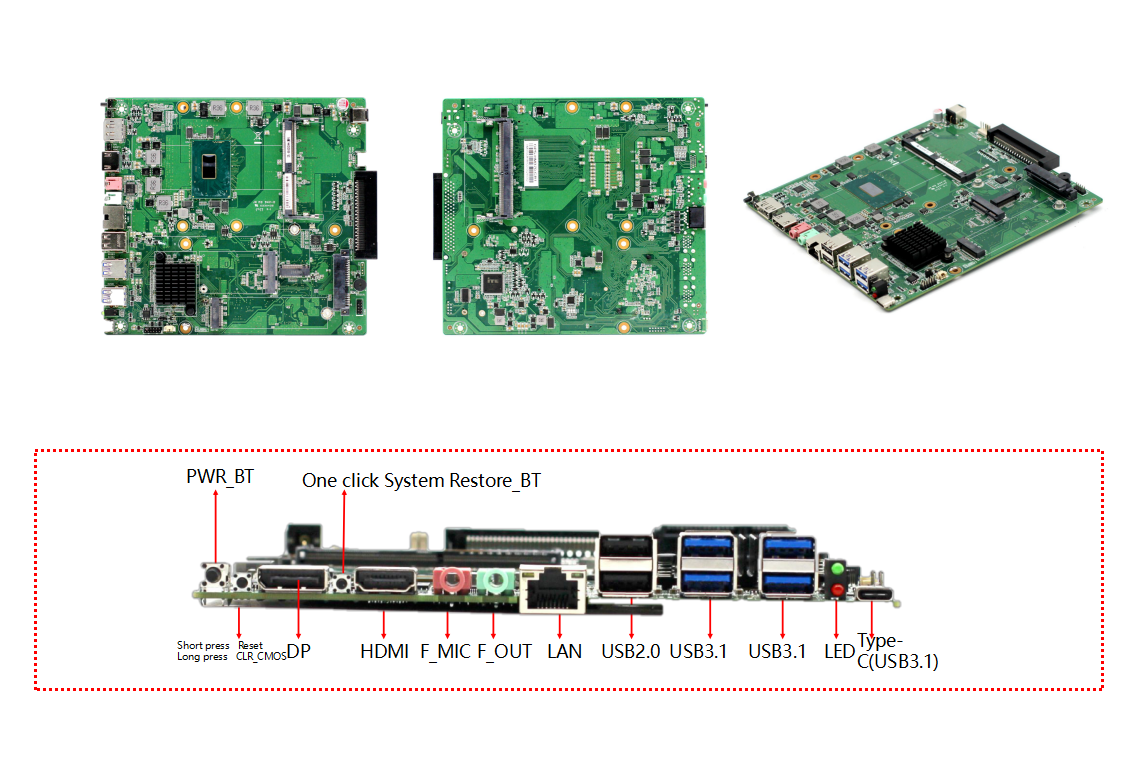

0755-83650405 | CPU | Support for Intel ® Core Tiger Lake-H series processor | I/O terminal display | 4 * USB3.1 port 2 * USB2.0 port 1 * HDMI port 1 * DP port 1 * LAN port 1 * MIC-IN port 1 * LINE OUT port 1 * PWR ON button 1 * CLR-CMOS&Reset button 1 * Recovery button (- key system restore) 1 * Power&HDD LED 1 * OPS-C port 1 * DC port |
| Chipset | Intel®HM570 | ||
| BIOS | Intel CPU built-in display core | ||
| Display output | DP1.2 、HDMI1.4、VGA、HDMI2.0 | ||
| Multi display support | Three identical (different) steps | ||
| USB | 4*USB3.1+2*USB2.0+1*Type-C USB3.1 | ||
| Memory | 2*SO-DIMM DDR4 3200MHz Max64G | ||
| sound effects | On board Realtek ALC662HD audio decoding controller | ||
| network card | Realtek RTL8111H Gigabit Network Card | ||
| Storage | 1*M.2 M Key（NGFF PCIe X and SATA self-adaption ） 1*SATA_HDD(For 2.5" SSD) | ||
| expansion slot | 1*M.2 A Key(For WIFI+Bluetooth Card); | ||
| 1 * Mini PCIe (For wifi or video capture extension) | |||
| I/O Chip | IT8784E | ||
| BIOS | AMI BIOS | ||
| Power | DC 12-19V wide voltage power supply | ||
| Mainboard size | 190X172MM | I/O interface | 1 * COM232 pin 1 * JME pin 1 * CPU-FAN pin 1 * VGA pin (expandable VGA display interface) |
| COOLING SYSTEM | Dual ball CPU heat sink | ||
| operation temperature | Working temperature: 0~60 ℃; Storage: -20 ℃~75 ℃; | ||
| 0%~95% relative humidity, non condensing |
