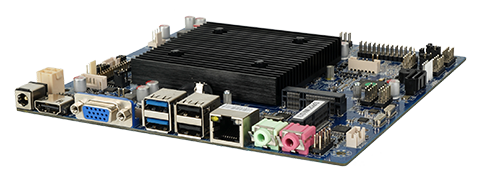

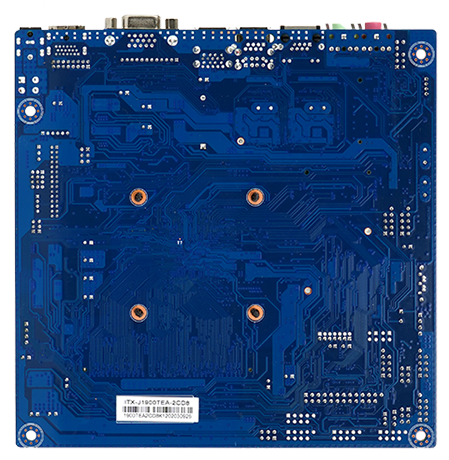

      ITX-J1900TEA-6C2L


      Detailed






      Support Intel Baytrail Series CPU







1*DDR3L, Max Support8G







Support Mini PCIE SSD







Support Mini PCIE WIFI+Bluetooth







Support HDMI，VGA，LVDS







Support 1/2*Realtek RTL8111F







Support 2/6 COM (Optional)







Application: Digital Sinage/Advertising machine/AIO/Multi-media






































CPU
Support Intel Baytrail Processor
Rear I/O
1*USB3.0
      1*VGA
      1*HDMI
      2*LAN（or 1*LAN）
      1*LINE-OUT
      1*MIC-IN
      1*DC




Chipset
SOC




GPU
Intel CPU Built in Graphics display




Display output
VGA、LVDS、HDMI




Muilt-Display
VGA+HDMI/VGA+LVDS/HDMI+LVDS




VGA+HDMI+LVDS




USB
1*USB3.0  6*USB2.0(5*USB2.0 Need to be Extedned)




Memory
1*SO-DIMM，DDR3L  8GB
Internal I/O
3*F-USB2.0 PIN（Support 5*USB2.0）
      6*COM PIN(or 2*COM)
      1*VGA PIN
      1*HDMI PIN
      1*JPS2 PIN
      1*F_PANEL PIN
      1*GPIO PIN
      1*PRINT PIN
      1*INVERT PIN
      1*LVDS PIN
      1*4PIN ATX  PIN
      1* SPEAKER PIN
      1* F_AUDIO PIN




Audio
Onboard Realtek ALC662HD




Network
1/2*Realtek RTL8111F




Storage
1*SATA2.0 1*MSATA




WIFI
2*MINI-PCIE(for WIFI )




COM
2/6*COM（1*485 ）(Option: 2*COM)




BIOS
AMI  BIOS




Power
DC 12V Power Supply




Cooling System
Fanless




Operating environment
-10~60℃; 0% ~ 95% Relative Humidity, Non-condensing




Size
170X170MMMM














      Informations：


      More Versions, please contact our sales






Version
CPU
LAN
USB3.0
USB2.0
COM
RS485




ITX-J1900TE-6CD8
J1900   2.00GHZ
1
1
8
6
1




ITX-J1800TE-6CD8
J1800   2.41GHZ




ITX-N2830TE-6CD8
N2830  2.16GHZ




ITX-N2810TE-6CD8
N2810  2.00GHZ




ITX-J1900TE-6C2L
J1900   2.00GHZ
2
1
6
6
1




ITX-J1800TE-6C2L
J1800   2.41GHZ




ITX-J1900TE-2CD8
J1900   2.00GHZ




ITX-J1800TE-2CD8
J1800   2.41GHZ




ITX-N2830TE-2CD8
N2830  2.16GHZ
1
1
8
2
1




ITX-N2810TE-2CD8
N2810  2.00GHZ




ITX-J1900TE-2C2L
J1900   2.00GHZ
2
1
6
2
1




ITX-J1800TE-2C2L
J1800   2.41GHZ
