M211J(OPS )
Detailed
Domestic 兆芯 supports KX-6000 8-core 2.7GHz main frequency processor
IO support 1xHDMI Port
Supports dual channel SO-DIMM DDR4 2666MT/s Max32GB
Support Key M M.2 interface, expandable SSD module
Support Key A M.2 interface, expandable WiFi+Bluetooth
Supports 6 x USB interfaces for flexible expansion of various peripheral devices
USB interface supports short circuit protection, power short circuit system does not crash or restart

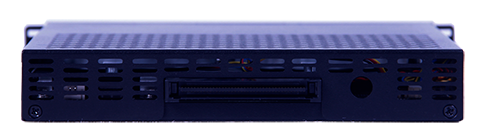

Unique design, supporting OPS interface for live and undamaged plugging and unplugging
The product meets the standard OPS-C design specifications

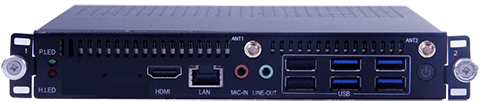

0755-83650405 | CPU | Support for ZHAOXIN KX-6000 8-core 2.7GHz main frequency 70W 16nm processor | I/O terminal display | USB 4 x USB3.0+2 x USB2.0 Display 1 x HDMI Network port 1 x RJ45 Button 1 x Power Button 1 x R-SET 1 x Ghost key (reserved) OPS interface 1 x OPS standard interface (80pin) |
| Main board model: OPS-KX6780A-CM1 | |||
| Chipset | KX-6000 series | ||
| BIOS | Domestic ByoCore firmware supports write protection, diskless startup, wake-on-LAN, power on startup, watchdog and other functions | ||
| Memory capacity | 2xSO-DIMM，DDR4 2400/2666MHz Max32GB | ||
| Storage interface | 1xSATA interface (for 2.5"SSD)SATA3.0 | ||
| 1x7+15pin SATA interface (for 2.5"SSD)SATA | |||
| 1xM.2 M Key(SATA SSD) | |||
| graphic display | The motherboard comes with an integrated graphics card; | ||
| 2xHDMI; Supports dual display synchronous/asynchronous | |||
| HDMI: 4K 60Hz | |||
| OPS HDMI: 4K 60Hz | |||
| Network | Wired 1 x RTL8111H Gigabit Ethernet card (onboard RJ45) | ||
| Wireless 1 x M.2 A Key(For WIFI+Bluetooth Card) | |||
| Audio frequency | 1 x LINE-OUT &1 x MIC-IN | ||
| Power Input | OPS sub card power supply 12~19V wide voltage input | ||
| Watchdog | Shutdown restart system interval 255 level timed interval | ||
| Operating system | Linux: Zhongke Fangde, Zhongzhong Qilin, Puhua, Ubuntu, Fedora, CentOS, Tongxin UOS | ||
| Windows: Windows XP/7/10, Win10 Government Edition | |||
| Environment | Working temperature: 0 ° C~60 ° C Storage temperature: -20~70 ° C | ||
| 5%~90%, relative humidity; non-condensing | |||
| Size | 180x195x30mm |
