Product Model	HPC-1211	Pilot lamp	Reserved power status indicator light under the screen	Dimensions	292x230x60mm
Display	12.1	Trumpet	2 x 4 ? 3W	Weight	< 3.0kg
Touch Screen	Resistive Touch Screen	Heat dissipation	Fanless	Product colour	Space Gray
Resolution Ratio	1024*768	Overall Power Consumption	<18W (screen 4W)	Chassis material	Aluminum alloy structure
Luminance	300cd/㎡	Installation Method	Compatible with embedded, wall mounted, and desktop versions

CPU	Elkhart Lake	Sky Lake (Generation 6-7)	Gemini Lake
BIOS	AMI BIOS	AMI BIOS	AMI BIOS
Chipset	Intel® SOC	Intel® SOC	Intel® SOC
Display	Intel ® Graphics nuclear display	Intel ® HD Graphics nuclear display	Intel ® HD Graphics nuclear display
Network	2 * Intel I226-V Gigabit Network Card	2 * Intel I211 Gigabit Network Card	Intel I219 Gigabit Network Card+I211 Gigabit Network Card
Audio	Realtek ALC269HD	Realtek ALC662HD	Realtek ALC662HD
Memory	DDR4 3200MHz Max 16G	DDR4 2133 MHz Max 16G	DDR4 2400MHz Max 16G
Hard dive	M.2 2280 NVME128GB	M-SATA 128G	M.2 2280 NVME128GB
Functions	Support WiFi, Bluetooth, 4G, watchdog, diskless startup, wake-on-LAN, power on startup	Support WiFi, Bluetooth, 4G, watchdog, diskless startup, wake-on-LAN, power on startup	Support WiFi, Bluetooth, 4G, watchdog, diskless startup, wake-on-LAN, power on startup

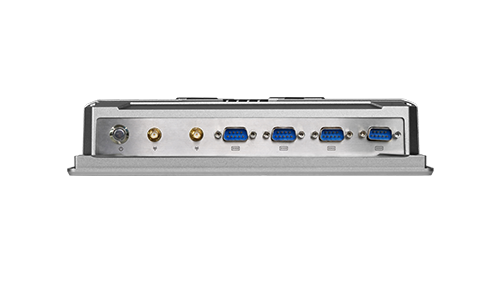

Front I/O	1 * Switch 2 * Antenna 4 * COM	1 * Switch; 2 * Antenna; 2*COM	1 * Switch; 2 * Antenna; 2*COM

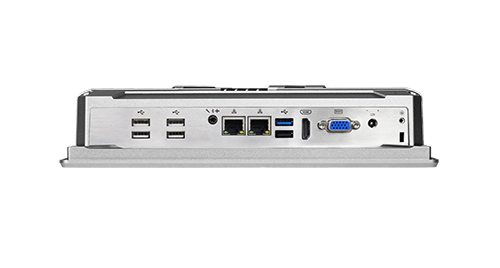

Rear I/O	1 * Audio interface	1 * Audio interface	1 * Audio interface
	1 * DP interface	2 * LAN interface	1 * DP interface
	1 * HDMI interface	2 * USB3.0 interface	1 * HDMI interface
	1 * USB2.0 interface	1 * HDMI interface	4 * USB3.2 interface
	3 * USB3.1 interface	1 * VGA interface	2 * LAN interface
	2 * LAN interface	1 * DC IN interface	1 * DC IN interface
	1 * DC IN interface	4 * USB interface	4 * USB interface
	4 * USB interface	1 * M3 grounding screw hole	1 * M3 grounding screw hole
	1 * M3 grounding screw hole		1 * CMOS button
	1 * CMOS button		Supports 8 * GPIO
	Supports 8 * GPIO		Supports 8 * GPIO
Power IN	DC 12V~24V wide voltage	DC 12V~24V wide voltage	DC 12V~24V wide voltage
OS support	Windows 7 / Windows 10 / Linux	Windows 7 / Windows 10 / Linux	Windows 7 / Windows 10 / Linux
Power Adapter	INPUT : 100-240V 50/60Hz Output : 12.0V/5.0A	INPUT : 100-240V 50/60Hz Output : 12.0V/5.0A	INPUT : 100-240V 50/60Hz Output : 12.0V/5.0A
certification	CCC / CE / FCC / RoHs	CCC / CE / FCC/ RoHs	CCC / CE / FCC / RoHs

	National standard	Parameter Description
EMC	GB/T 9254.1-2021 Radio disturbance limits and measurement methods for information technology equipment	Radiation disturbance (B) level Conducted disturbance (B) level
EMC	GB/T 17618-2015 Information technology equipment immunity limits and measurement methods	Meet the requirements of 6KV contact discharge and 12KV air discharge
Safety	GB 4943.1-2011 Information technology equipment security - Part 1: General requirements	Grounding resistance: ≤ 0.1 Ω Dielectric strength: Under a limited leakage current of 10mA, for Class I equipment, the withstand voltage of the primary circuit to the casing is ≥ 1.5KV AC or 2.2KV DC; For Class II equipment, the withstand voltage of the primary circuit to the casing is ≥ 3.0KV AC or 4.3KV DC Insulation resistance: ≥ 100M Ω Leakage current: ground leakage current ≤ 3.5mA
Environment	GB/T 9813.4-2017 General specification for computers - Part 4: Industrial application microcomputers GB/T 2423 Environmental Test	Working temperature: -10 ℃~60 ℃ Storage temperature: -20 ℃~70 ℃ Damp heat: 40 ℃ 95% RH Panel protection level: IP65 Drop in packaging: The machine is packaged at a of 1 meter, with 8 edges and 6 sides dropping once each Vibration: 5-5.5Hz, displacement 25.4mm; 5.5~200Hz/acceleration 1.0g, working direction; Test duration1 cycle Impact: Half sine pulse, peak acceleration of 10g, pulse of 11ms, and 3 times of impact in the working direction Noise: (0) dB

Product Type	Specifications Description	Remarks
HPC-1211	12.1 inch LCD screen/resistive touch screen/J1900/DDR3L 1333MHz 4GB/M-SATA 128GB
HPC-1211	12.1 inch LCD screen/resistive touch screen/J4125/DDR4 2133/2400MHz 4GB/M2 2280 Sata 128GB
HPC-1211	12.1 inch LCD screen/resistive touch screen/J6412/DDR4 3200MHz 4GB/M2 2280 NVME128GB
HPC-1211	12.1 inch LCD screen/resistive touch screen/6200U/DDR4 2133MHz 8GB/M-SATA 128G
HPC-1211	12.1 inch LCD screen/resistive touch screen/8145U/DDR4 2666MHz 8GB/M2 2280 NVME 128GB
