Model

PPC-1711

Pilot lamp

Reserved power status indicator light under the screen

Dimensions

417x260x46mm

Display

17.3

Trumpet

Weight

< 2.8kg

Touch Screen

Capacitive touch screen

Heat dissipation

No fan

Product  colour

Space Gray

Resolution Ratio

1920*1080

Overall Power Consumption

<21W (screen 7.5W), slightly higher power consumption for 6-10 generations

Chassis material

Aluminum alloy structure

Luminance

300cd/㎡

Installation Method

Compatible with embedded, wall mounted, and desktop versions

CPU

Support for Intel ®  Bay Trail J1900 processor

support Intel® Gemini lake J4125/J4105/N4000

Support for Intel ®   Elkhart Lake J6412/J6413 processor

Support for Intel ® Kaby Lake&Sky Lake processors (6th to 7th generation)

Support for Intel ® 8th generation Whiskeylake&10th generation Cometlake U processor

BIOS

AMI  BIOS

AMI  BIOS

AMI  BIOS

AMI  BIOS

AMI  BIOS

Chipset

Intel® SOC

Intel® SOC

Intel® SOC

Intel® SOC

Intel® SOC

Display

Intel ® HD Graphics integrated graphics card

Intel UHD Graphics 600

Intel® UHD Graphics

Intel® Graphics 610

Intel® UHD Graphics

Network

Realtek RTL8111  Gigabit network card

RTL8111H/RTL8111G

Realtek 8111H/8111G

Realtek RTL8111H/8111G

Realtek RLT8111H/8111G

Audio

Realtek ALC269HD

Realtek ALC269HD

Realtek ALC269HD

HS-100B Audio Decoding Controller

HS-100B USB Audio Decoding Controller

Memory

Single strip DDR3L 1333MHz Max 8G

Single strip DDR4 2133/2400MHz  Max 8G

Single strip DDR4 3200MHz Max 32G

DDR4 2133MHz Max 32G

DDR4 2666MHz Max 32G

Hard dive

M-SATA 128G

M-SATA 128GB

M.2 2280 Sata 128GB

M.2 2280 NVME 256GB

M.2 2280 NVME 256GB

Functions

Supports WiFi, Bluetooth, 4G, and watchdog functions

Supports WiFi, Bluetooth, 4G, and watchdog functions

Supports WiFi, Bluetooth, 4G, 5G modules

Supports WiFi, Bluetooth, 4G, 5G modules

Support WiFi, Bluetooth, 3G/4G module, 5G module, electric auto start, hardware monitoring, network wake-up

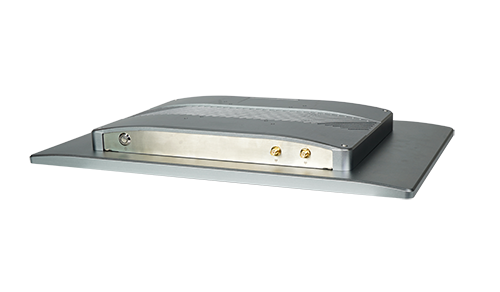

Front I/O

1 * Switch (with LED)

2 * Antenna

2 * USB/2 * COM (reserved)

1 * Switch (with LED)

2 * Antenna

2 * USB/2 * COM (reserved)

1 * Switch (with LED)

2 * Antenna

2 * USB/2 * COM (reserved)

1 * Switch (with LED)

2 * Antenna

2 * USB/2 * COM (reserved)

1 * Switch (with LED)

2 * Antenna

2 * USB/2 * COM (reserved)

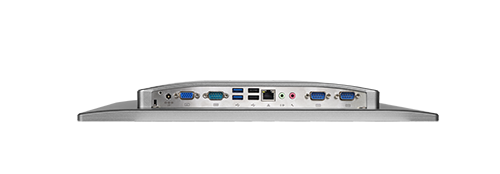

Rear I/O

1 * LINE OUT interface

1 * MIC-IN interface

1 * LAN interface

3 * USB2.0 interface

1 * USB3.0 interface

1 * HDMI interface

1 * VGA interface

1 * DC interface

2 * COM232

1 * M3 grounding screw hole

1 * LINE OUT interface

1 * MIC-IN interface

1 * LAN interface

2 * USB2.0 interface

2 * USB3.0 interface

1 * VGA interface

1 * HDMI interface

1 * DC interface

2 * COM232

1 * M3 grounding screw hole

1 * LINE OUT interface

1 * MIC-IN interface

1 * LAN interface

2 * USB2.0 interface

2 * USB3.2 Gen2 interface

1 * VGA interface

1 * HDMI interface

1 * DC interface

2 * COM232

1 * M3 grounding screw hole

1 * LINE OUT interface

1 * MIC-IN interface

1 * LAN interface

2 * USB2.0 interface

2 * USB3.0 interface

1 * VGA interface

1 * HDMI interface

1 * DC interface

2 * COM232

1 * CLR_ CMOS buttons

1 * M3 grounding screw hole

1 * LINE OUT interface

1 * MIC-IN interface

1 * LAN interface

2 * USB3.2 Gen2 interface

2 * USB3.2 Gen2 interface

1 * VGA interface

1 * HDMI interface

1 * DC interface

2 * COM232

1 * CLR_ CMOS buttons

Note: USB3.2 is Gen1 5Gbps when using the 8th generation U processor

Power IN

DC 12V DC power supply

DC 12V DC power supply

DC 12V DC power supply

DC 12V DC power supply

DC 12V DC power supply

OS support

Windows 7 / Windows 10 / Linux

Certification

CCC / CE / RoHs/FCC

National standard

Parameter Description

EMC

GB/T 9254.1-2021
Radio disturbance limits and measurement methods for information technology equipment

Radiation disturbance (B) level
Conducted disturbance (B) level

GB/T 17618-2015
Information technology equipment immunity limits and measurement methods

Meet the requirements of 6KV contact discharge and 12KV air discharge

Safety regulations

GB 4943.1-2011
Information technology equipment security - Part 1: General requirements

Grounding resistance: ≤ 0.1 Ω
Dielectric strength: Under a limited leakage current of 10mA, for Class I equipment, the withstand voltage of the primary circuit to the casing is ≥ 1.5KV AC or 2.2KV DC; For Class II equipment, the withstand voltage of the primary circuit to the casing is ≥ 3.0KV AC or 4.3KV DC
Insulation resistance: ≥ 100M Ω
Leakage current: ground leakage current ≤ 3.5mA

Environment

GB/T 9813.4-2017
General specification for computers - Part 4: Industrial application microcomputers
GB/T 2423
environmental test

Working temperature: 0 ℃~50 ℃
Storage temperature: -20 ℃~70 ℃
Damp heat: 40 ℃ 95% RH
Panel protection level: IP65
Drop in packaging: The machine is packaged at a of 1 meter, with 8 edges and 6 sides dropping once each
Vibration: 5-5.5Hz, displacement 25.4mm; 5.5~200Hz/acceleration 1.0g, working direction; Test duration
1 cycle
Impact: Half sine pulse, peak acceleration of 10g, pulse of 11ms, and 3 times of impact in the working direction
Noise: (0) dB

Model

Specification Description

Notes

PPC-1711

17.3 LCD screen/capacitive touch screen/J1900/DDR3L 1333MHz 4GB/M-SATA 128GB

PPC-1711

17.3 LCD screen/capacitive touch screen/J4125/DDR4 2133/2400MHz 4GB/M-SATA 128GB

PPC-1711

17.3 LCD screen/capacitive touch screen/J6412/DDR4 3200MHz 4GB/M2 2280 Sata 128GB

PPC-1711

17.3 LCD screen/capacitive touch screen/6200U/DDR4 2133MHz 8GB/M2 2280 NVME 256GB

PPC-1711

17.3 LCD screen/capacitive touch screen/8145U/DDR4 2666MHz 8GB/M2 2280 NVME 256GB

USB3.2 is  Gen1  5Gbps
