Model

HPC-1512

Pilot lamp

Reserved power supply and hard disk status indicator light under the screen

351x275x60mm

Display screen

15

Trumpet

Overall weight

< 3.8kg

Touch screen

Resistive Touch Screen

Heat dissipation method

No Fan

Overall color

Space Grey

Resolution

1024*768

Overall Power Consumption

Chassis material

Aluminum alloy

Brightness

300cd/㎡

Installation method

Compatible with embedded, wall mounted, and desktop versions

CPU

Intel Whiskey Lake series  i3/ i5/ i7 Processors

BIOS

AMI （256M）

chipset

Intel® SOC

Pattern display

Intel® UHD Graphics

network

Intel i226-AT + I219-LM

Sound effects

HS-100B

Memory

DDR4 2400MHz Max 32G

Hard disk

  M. 2 2280 NVME128GB, Scalable SATA 3.0 2.5-inch HDD

Function

Supports WiFi, Bluetooth, 3G/4G/5G modules, supports diskless startup, network wake-up, and power on/off

Front I/O interface

1 * Power on button (LED)
2 * LED (HDD&WiFi)
1 * SW, 2 pin Phoenix terminal
1 * Mic_ In
1 * Line_ Out
2 * USB2.0 interface
1 * SIM card slot
2 * RS232+8-way GPIO or maximum 16 way GPIO interface
2 * Antenna

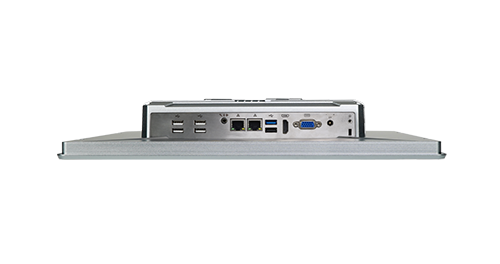

Rear I/O interface

2 * LAN interface
4 * USB3.1 interface
2 * HDMI interface
2 * COM
1 * DC IN interface, 4pin Phoenix terminal
1 * M3 grounding screw hole
4 * Antenna
1 * RST button, in case of shutdown, long press for ≥ 3 seconds to clear BIOS configuration; In the case of startup, briefly press 0.5~1s to restart
1 * REC key, System Restore

Power input

12-19V DC input (optional 9-36V wide voltage power module)

Expansion

Basic configuration, GPIO adapter extension, WiF module, 12-19V DC input
Four network port expansion, GPIO conversion expansion, 12-19V DC input
POE quad port expansion, GPIO adapter expansion, 12-19V DC input
Six serial port expansion, WiF module, 9-36V wide voltage power module
Fourteen USB expansion, 4G module, GPIO adapter expansion, 12-19V DC input

OS System

Windows 7 / Windows 10 / Linux

Certificate

CCC / CE / RoHs/ FCC

National standard

parameter description

EMC

GB/T 9254.1-2021
Radio disturbance limits and measurement methods for information technology equipment

Radiation disturbance (B) level
Conducted disturbance (B) level

GB/T 17618-2015
Information technology equipment immunity limits and measurement methods

Meet the requirements of 6KV contact discharge and 12KV air discharge

Safety regulations

GB 4943.1-2011
Information technology equipment security - Part 1: General requirements

Grounding resistance: ≤ 0.1 Ω
Dielectric strength: Under a limited leakage current of 10mA, for Class I equipment, the withstand voltage of the primary circuit to the casing is ≥ 1.5KV AC or 2.2KV DC;
For Class II equipment, the withstand voltage of the primary circuit to the casing is ≥ 3.0KV AC or 4.3KV DC
Insulation resistance: ≥ 100M Ω
Leakage current: ground leakage current ≤ 3.5mA

Environment

GB/T 9813.4-2017
General specification for computers - Part 4: Industrial application microcomputers
GB/T 2423
environmental test

Working temperature: -10 ℃~60 ℃
Storage temperature: -20 ℃~70 ℃
Damp heat: 40 ℃ 95% RH
Panel protection level: IP65
Drop in packaging: The machine is packaged at a of 1 meter, with 8 edges and 6 sides dropping once each
Vibration: 5-5.5Hz, displacement 25.4mm; 5.5~200Hz/acceleration 1.0g, working direction; Test duration 1 cycle
Impact: Half sine pulse, peak acceleration of 10g, pulse of 11ms, and 3 times of impact in the working direction
Noise: (0) dB

Model

Specification Description

Remarks

HPC-1512

15Inch LCD screen/resistive touch screen /Intel 8365U/DDR4 2400MHz 8GB/M.2 2280 SATA 128GB/WiFi模塊/子卡ZIC-DB-PWRGP ZO010

HPC-1512-4L

15Inch LCD screen/resistive touch screen/Intel 8365U/DDR4 2400MHz 8GB/M.2 2280 SATA 128GB/子卡EIO-4L ZO020/子卡ZIC-DB-PWRGP ZO010

HPC-1512-POE4L

15Inch LCD screen/resistive touch screen/Intel 8365U/DDR4 2400MHz 8GB/M.2 2280 SATA 128GB/EIO-4LP ZO020/子卡ZIC-DB-PWRGP ZO010

HPC-1512-6C

15Inch LCD screen/resistive touch screen/Intel 8365U/DDR4 2400MHz 8GB/M.2 2280 SATA 128GB/WiFi模塊/WiFi模塊/EIO-4L4LP4UGP ZO010/ZIC-DB-PWR2 ZO020

HPC-1512-14U

15Inch LCD screen/resistive touch screen/Intel 8365U/DDR4 2400MHz 8GB/M.2 2280 SATA 256GB/Sata3.0 256GB/4G模塊/EIO-4L4LP4UGP ZO010/子卡ZIC-DB-PWRGP ZO010
