      PPC-1521


      Detailed






      Supporting the high-performance and low-power quad core application processor of Ruixin Micro RK3566/RK3568/RK3599







Standard 2G (optional 4G) LPDDR4X/LDPDR4, built-in 16G eMMC (optional 32G/64G/128G)







Standard 15.6-inch high-definition display screen, capacitive touch screen, supporting dual display







Supports multiple playback modes such as loop, timing, and insert playback







Supports 100 Gigabit Ethernet, supports WiFi/BT4.1, and wireless peripheral expansion







Supports VESA bracket installation, wall mounted and desktop mounted







The complete machine has a windless design, patented industrial design, and is aesthetically pleasing







Panel protection level: IP65 waterproof and dustproof







ESD Protection: ±6kV (Contact ),  ± 12kV (Air)







The product can be widely used in industries such as MES, store displays, and self-service terminals etc






































Product Model
 PPC-1521
Pilot lamp
Reserved power status indicator light under the screen

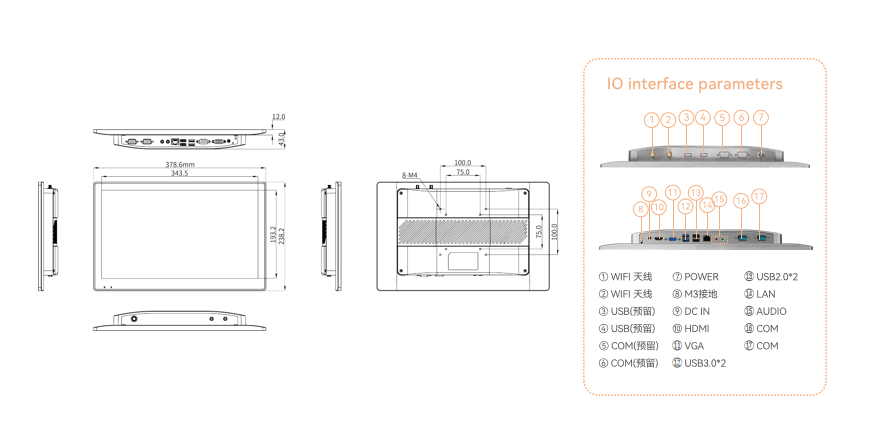

Dimensions
379x238x43mm




Display
15.6
Trumpet
2 x 4 ? 3W
Weight
< 2.5kg




Touch Screen
Capacitive Touch Screen
Heat dissipation
Fanless
Product  colour
Space Gray




Resolution Ratio
1920*1080
Overall Power Consumption
<9W (screen 3.5W))
Chassis material
Aluminum alloy structure




Luminance
300cd/㎡
Installation Method
Compatible with embedded, wall mounted, and desktop versions










CPU
Rockchip RK3566UP to2.0GHz
Rockchip RK3568UP to 2GHz




GPU
Mali-G52-2EE high-performance GPU
Mali-G52-2EE high-performance GPU




NPU
NPU supports 0.8T
NPU supports 0.8T




Memory
Standard 2G LPDDR4X/LPDDR4
Standard 2G LPDDR4X/LPDDR4




Built-in memory
EMMC16G/32G (optional) label 16G
EMMC16G/32G (optional) label 16G




Decoding resolution
Supports 1080P/H.265 (4K2K)
Supports 1080P/H.265 (4K2K)




Playback mode
Supports multiple playback modes such as loop, timing, and insert playback
Supports multiple playback modes such as loop, timing, and insert playback




network support
10/100M  Ethernet, supporting WiFi/BT4.1, wireless peripheral expansion
10/100M Ethernet, supporting WiFi/BT4.1, wireless peripheral expansion




Function
Support RTC real-time clock, hardware watchdog, and timed on-off; Support TF card/computer updates; TF/USB automatic import of screen parameters
Support RTC real-time clock, hardware watchdog, and timed on-off; Support TF card/computer updates; TF/USB automatic import of screen parameters




Upper I/O interface
2 * Antenna
2 * Antenna




1 * Switch
1 * Switch




2 * USB2.0/COM port (reserved)
2 * USB2.0/COM port (reserved)




Lower I/O interface
1 * AUDIO port
1 * AUDIO port




1 * HDMI port
1 * HDMI port




1 * LAN port
1 * LAN port




1 * TF card slot
1 * TF card slot




1 * U-boot Key
1 * U-boot Key




1 * USB3.0 port
1 * USB3.0 port




1 * USB2.0 port
1 * USB2.0 port




1 * DC port
1 * DC port




2 * COM port
2 * COM port




1 * M3 grounding screw hole
1 * M3 grounding screw hole




Power IN
DC 12V DC power supply
DC 12V DC power supply




OS support
Android11.0
Android11.0




















National standard
Parameter Description




EMC
GB/T 9254.1-2021
      Radio disturbance limits and measurement methods for information technology equipment
Radiation disturbance (B) level
      Conducted disturbance (B) level




GB/T 17618-2015
      Information technology equipment immunity limits and measurement methods
Meet the requirements of 6KV contact discharge and 12KV air discharge




Safety
GB 4943.1-2011
      Information technology equipment security - Part 1: General requirements


      Grounding resistance: ≤ 0.1 Ω
      Dielectric strength: Under a limited leakage current of 10mA, for Class I equipment,


      the withstand voltage of the primary circuit to the casing is ≥ 1.5KV AC or 2.2KV DC; For Class II equipment,


      the withstand voltage of the primary circuit to the casing is ≥ 3.0KV AC or 4.3KV DC
      Insulation resistance: ≥ 100M Ω
      Leakage current: ground leakage current ≤ 3.5mA






Environment
GB/T 9813.4-2017
      General specification for computers - Part 4: Industrial application microcomputers
      GB/T 2423
      Environmental Test


      Working temperature: 0 ℃~50 ℃
      Storage temperature: -20 ℃~70 ℃


      Damp heat: 40 ℃ 95% RH
      Panel protection level: IP65
      Drop in packaging: The machine is packaged at a  of 1 meter, with 8 edges and 6 sides dropping once each
      Impact: Half sine pulse, peak acceleration of 10g, pulse  of 11ms, and 3 times of impact in the working direction Noise: (0) dB






















      Product Type




      Specifications Description




      Remarks








      PPC-1011




      10.1-inch LCD screen/capacitive touch screen /J1900/DDR3L  1333MHz  4GB/M-SATA 128GB













      PPC-1011




      10.1-inch LCD screen/capacitive touch screen/J4125 /DDR4 2133/2400MHz  4GB/M.2 2280 Sata 128GB
