      PPC-2111


      Detailed






      Support for Intel ®  Bay Trail, Gemini lake, Elkhart lake, 6th generation Sky lake&7th generation Kaby lake, 8th generation Whiskeylake&10th generation Cometlake U processors







Supports SO-DIMM, M-SATA, M.2 Sata, M.2 NVME storage

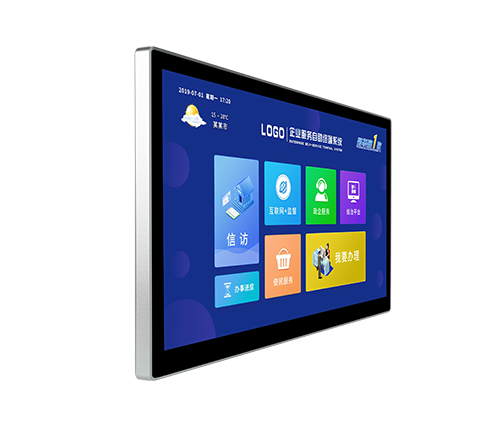

Standard 21.5-inch high-definition display screen, capacitive touch screen, supporting dual display







Standard configuration with 4USB and 1LAN interfaces, expandable with 2USB and multi specification COM interfaces







Supports 1 * MINI-PCIE (for WIFI), 1 * SIM, and supports 3G, 4G, and 5G modules







Supports VESA bracket installation, wall mounted and desktop mounted







The complete machine has a windless design, patented industrial design, and is aesthetically pleasing







Panel protection level: IP65 waterproof and dustproof







ESD Protection: ±6kV (Contact ),  ± 12kV (Air)







The product can be widely used in industries such as industrial automation, environmental monitoring, wind power generation, 3D machine vision inspection, etc






































Product Model
PPC-2111
Pilot lamp
Reserved power status indicator light under the screen

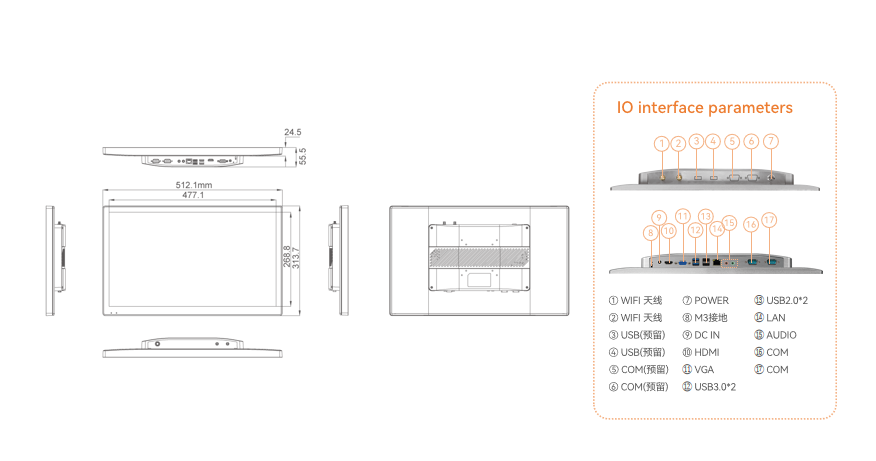

Dimensions
511x313x42mm




Display
21.5
Trumpet
2 x 4 ? 3W
Weight
< 3.4kg




Touch Screen
Capacitive Touch Screen
Heat dissipation
Fanless
Product  colour
Space Gray




Resolution Ratio
1920*1080
Overall Power Consumption
<29W (screen 15W), slightly higher power consumption for 6-10 generations
Chassis material
Aluminum alloy structure




Luminance
300cd/㎡
Installation Method
Compatible with embedded, wall mounted, and desktop versions












CPU
Support for Intel ®  Bay Trail J1900 processor
Support  Intel® Gemini lake J4125/J4105/N4000




BIOS
AMI  BIOS
AMI  BIOS




Chipset
Intel® SOC
Intel® SOC




Display
Intel ® HD Graphics integrated graphics card
Intel UHD Graphics 600




Network
Realtek RTL8111
RTL8111H/RTL8111G




Audio
Realtek ALC269HD
Realtek ALC269HD




Memory
Single strip DDR3L 1333MHz Max 8G
Single strip DDR4 2133/2400MHz  Max 8G




Hard dive
M-SATA 128G
M-SATA 128GB




Functions
Supports WiFi, Bluetooth, 4G, and watchdog functions
Supports WiFi, Bluetooth, 4G, and watchdog functions




Front I/O
1 * Switch (with LED)； 2 * Antenna； 2 * USB/2 * COM (reserved)
1 * Switch (with LED)；2 * Antenna； 2 * USB/2 * COM (reserved)

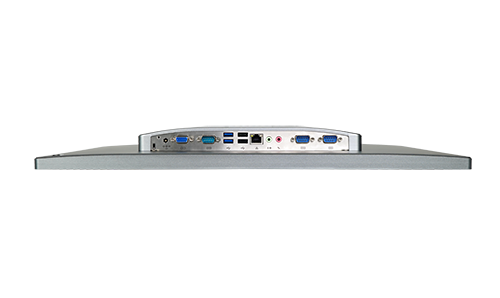

Rear I/O
1 * LINE OUT interface
      1 * MIC-IN interface
      1 * LAN interface
      3 * USB2.0 interface
      1 * USB3.0 interface
      1 * HDMI interface
      1 * VGA interface
      1 * DC interface
      2*COM232
      1 * M3 grounding screw hole
1 * LINE OUT interface
      1 * MIC-IN interface
      1 * LAN interface
      2 * USB2.0 interface
      2 * USB3.0 interface
      1 * VGA interface
      1 * HDMI interface
      1 * DC interface
      2*COM232
      1 * M3 grounding screw hole




Power IN
DC 12V DC power supply
DC 12V DC power supply




OS support
Windows 7 / Windows 10 / Linux
Windows 7 / Windows 10 / Linux




Power dapter
INPUT : 100-240V50/60Hz ; Output : 12.0V/5.0A
INPUT : 100-240V50/60Hz ; Output : 12.0V/5.0A




Certification
CCC / CE /FCC/ RoHs
CCC / CE /FCC/ RoHs










CPU
Support for Intel ®   Elkhart Lake J6412/J6413 processor
Support for Intel ® Kaby Lake&Sky Lake processors (6th to 7th generation)




BIOS
AMI  BIOS
AMI  BIOS




Chipset
Intel® SOC
Intel® SOC




Display
Intel® UHD Graphics
Intel® Graphics 610




Network
Realtek 8111H/8111G
Realtek RTL8111H/8111G




Audio
Realtek ALC269HD
HS-100B Audio Decoding Controller




Memory
Single strip DDR4 3200MHz Max 32G
DDR4 2133MHz Max 32G




Hard dive
M.2 2280 Sata 128GB
M.2 2280 NVME 256GB




Functions
Supports WiFi, Bluetooth, 4G, 5G modules
Supports WiFi, Bluetooth, 4G, 5G modules




Front I/O
1 * Switch (with LED)；2 * Antenna；2 * USB/2 * COM (reserved)
1 * Switch (with LED)；2 * Antenna；
      2 * USB/2 * COM (reserved)




Rear I/O
1 * LINE OUT interface
      1 * MIC-IN interface
      1 * LAN interface
      2 * USB2.0 interface
      2 * USB3.2 Gen2 interface
      1 * VGA interface
      1 * HDMI interface
      1 * DC interface
      2*COM232
      1 * M3 grounding screw hole
1 * LINE OUT interface
      1 * MIC-IN interface
      1 * LAN interface
      2 * USB2.0 interface
      2 * USB3.0 interface
      1 * VGA interface
      1 * HDMI interface
      1 * DC interface
      2*COM232
      1*CLR_ CMOS buttons
      1 * M3 grounding screw hole




Power IN
DC 12V DC power supply
DC 12V DC power supply




OS support
Windows 7 / Windows 10 / Linux
Windows 7 / Windows 10 / Linux




Power Adapter
INPUT : 100-240V50/60Hz
INPUT : 100-240V50/60Hz




Output : 12.0V/5.0A
Output : 12.0V/5.0A




Certification
CCC / CE / FCC / RoHs
CCC / CE / FCC/ RoHs










CPU
Support for Intel ® 8th generation Whiskeylake&10th generation Cometlake U processor




BIOS
AMI  BIOS




Chipset
Intel® SOC




Display
Intel® UHD Graphics




Network
Realtek RLT8111H/8111G




Audio
HS-100B USB Audio Decoding Controller




Memory
DDR4 2666MHz Max 32G




Hard dive
M.2 2280 NVME 256GB




Functions
Support WiFi, Bluetooth, 3G/4G module, 5G module, electric auto start, hardware monitoring, wake-on-LAN




Front I/O
1 * Switch (with LED)；2 * Antenna；




2 * USB/2 * COM (reserved)




Rear I/O
1 * LINE OUT interface
      1 * MIC-IN interface
      1 * LAN interface
      2 * USB3.2 Gen2 interface
      2 * USB3.2 Gen2 interface
      1 * VGA interface
      1 * HDMI interface
      1 * DC interface
      2*COM232
      1*CLR_ CMOS buttons
      Note: USB3.2 is Gen1 5Gbps when using the 8th generation U processor




Power IN
DC 12V DC power supply




OS support
Windows 7 / Windows 10 / Linux




Power Adapter
INPUT : 100-240V50/60Hz
      Output : 12.0V/5.0A




Certification
CCC / CE / FCC / RoHs














National standard
Parameter Description




EMC
GB/T 9254.1-2021
      Radio disturbance limits and measurement methods for information technology equipment


      Radiation disturbance (B) level


      Conducted disturbance (B) level






GB/T 17618-2015                                                            Information technology equipment immunity limits and measurement methods
Meet the requirements of 6KV contact discharge and 12KV air discharge




Safety
GB 4943.1-2011
      Information technology equipment security - Part 1: General requirements
Grounding resistance: ≤ 0.1 Ω
      Dielectric strength: Under a limited leakage current of 10mA, for Class I equipment, the withstand voltage of the primary circuit to the casing is ≥ 1.5KV AC or 2.2KV DC; For Class II equipment, the withstand voltage of the primary circuit to the casing is ≥ 3.0KV AC or 4.3KV DC
      Insulation resistance: ≥ 100M Ω
      Leakage current: ground leakage current ≤ 3.5mA




Environment
GB/T 9813.4-2017
      General specification for computers - Part 4: Industrial application microcomputers
      GB/T 2423
      Environmental Test


      Working temperature: 0 ℃~50 ℃
      Storage temperature: -20 ℃~70 ℃


      Damp heat: 40 ℃ 95% RH
      Panel protection level: IP65
      Drop in packaging: The machine is packaged at a  of 1 meter, with 8 edges and 6 sides dropping once each
      Vibration: 5-5.5Hz, displacement 25.4mm; 5.5~200Hz/acceleration 1.0g, working direction; Test duration1 cycle
      Impact: Half sine pulse, peak acceleration of 10g, pulse  of 11ms, and 3 times of impact in the working direction Noise: (0) dB






















      Product Type




      Specifications Description




      Remarks








      PPC-2111




      21.5 LCD screen/capacitive touch screen/J1900/DDR3L 1333MHz 4GB/M-SATA 128GB













      PPC-2111




      21.5 LCD screen/capacitive touch screen/J4125/DDR4 2133/2400MHz 4GB/M-SATA 128GB













      PPC-2111




      21.5 LCD screen/capacitive touch screen/J6412/DDR4 3200MHz 4GB/M2 2280 Sata 128GB













      PPC-2111




      21.5 LCD screen/capacitive touch screen/6200U/DDR4 2133MHz 8GB/M2 2280 NVME 256GB













      PPC-2111




      21.5 LCD screen/capacitive touch screen/8145U/DDR4 2666MHz 8GB/M2 2280 NVME 256GB




      USB3.2為 Gen1  5Gbps
